690
Upgrade and Mai
ntenance Manual
TX300 S
8 / RX350 S8
System board and compo
nent
s

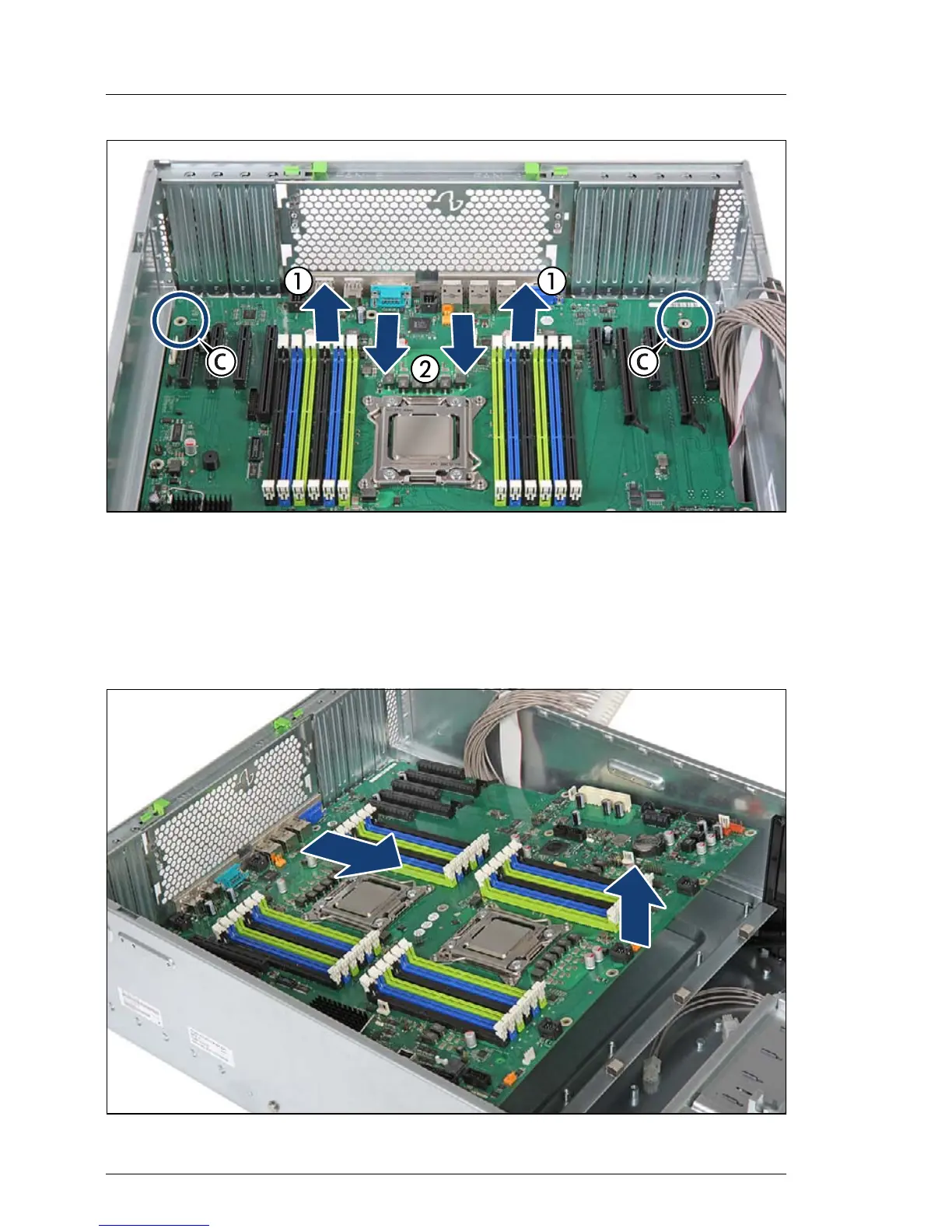

Figure 535: Det
aching the system board (C)
Ê
Slightly lift up the
system board by the memory module ejectors and a PCI
slot (1) in order to detach it from th
e centering bolts (C).
Ê
Carefully shift
the system board towards the server front until the plug shells
disengage from the cut-out
s in the connector panel
(2).
Figure 536: Removing the system board
689
