7.2.3 Regenerative solvent filter (optional)

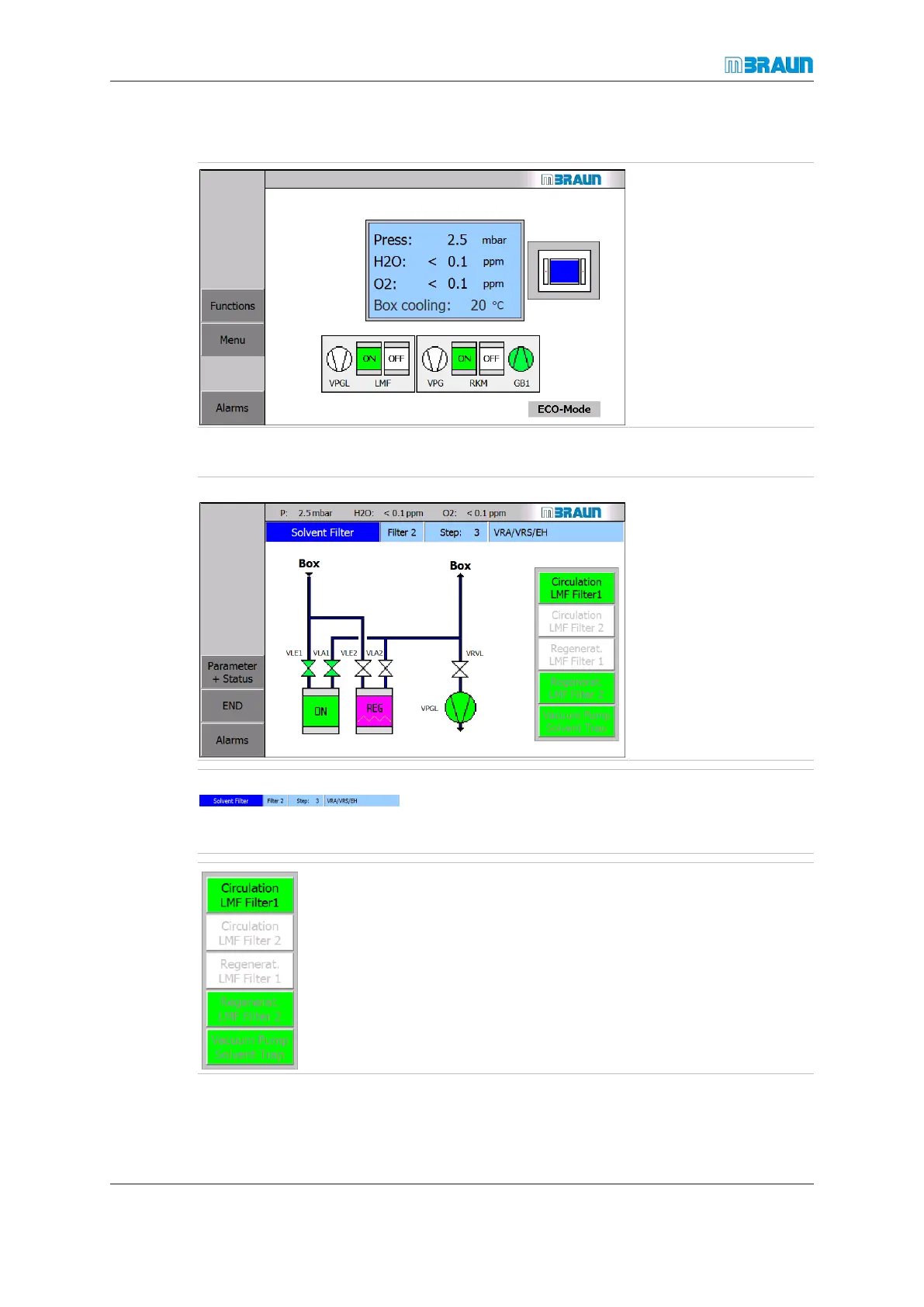

Start screen of a system
with solvent filter (LMF
dp).
Screens to operate solvent filters
Start Screen ⇨ LMF icon
Example of a double LMF
system:
¡ One solvent filter is in
circulation mode.
¡ One solvent filter is in
regeneration mode.
► On the navigation
bar, touch the
Status button.
ð The Solvent Filter Unit
Status screen opens.
Display and input
The regeneration status bar displays the current regenera-
tion step. If no regeneration procedure is active, “Regener-
ation off” is displayed.
Circulation LMF Filter 1: Switches the “Circulation over
LMF" function on and off.
Regenerat. LMF Filter 2: Switches the "Regeneration"
function on and off.
Vacuum Pump Solvent Trap: Switches the vacuum
pump, dedicated to the LMF, on and off.
