MBRAUN offers analyser for measuring the solvent concentration in the box atmosphere.
These analysers allow saturation of the solvent filter to be detected at an early stage.
7.2 Navigation overview
7.2.1 Purification unit

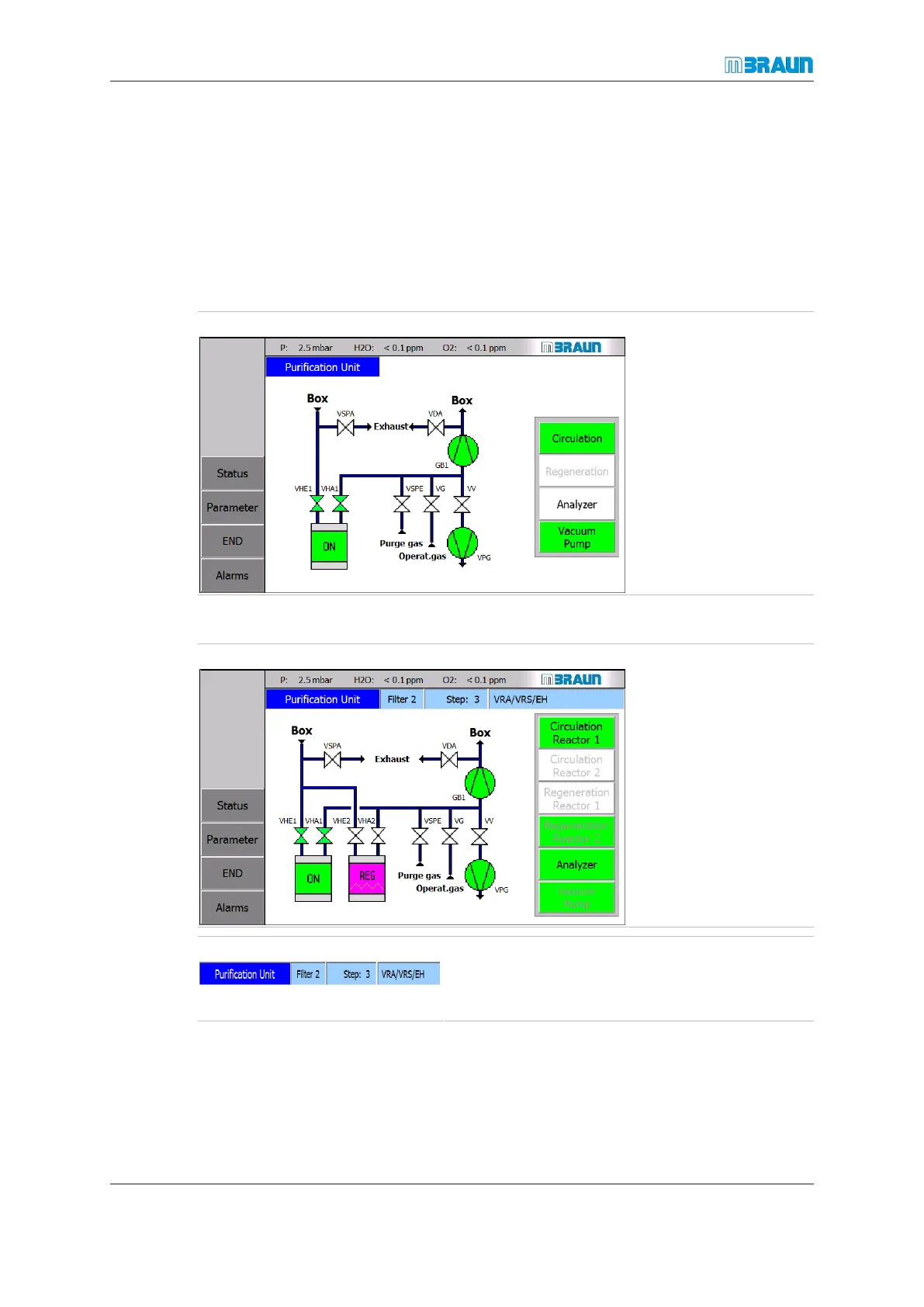

Screen purification unit with single reactor
Start Screen ⇨ RKM icon
Example: RKM is in circu-
lation state.
Dependent on the feature
and on the operational
state of the system, the
screen may look different.
Screen purification unit with double reactor
Start Screen ⇨ RKM icon
Example:
¡ RKM 1 in circulation
state (symbol icon is
green)
¡ RKM 2 in regenera-
tion state (symbol
icon is magenta)
Dependent on the feature
and the operational state
of the system, the screen
may look different.
Display and input
The regeneration status bar displays the current re-
generation step. If no regeneration procedure is act-
ive an indicator “Regeneration off” is displayed.
