2 Inert gas technology
Functional description
Page
2 - 14
MB-20-G/MB-200G-W_MB-LABmaster_MB-200 MOD_TP700
Operating Manual - V5.0 - 04/2018 - STD
2.3 Functional description

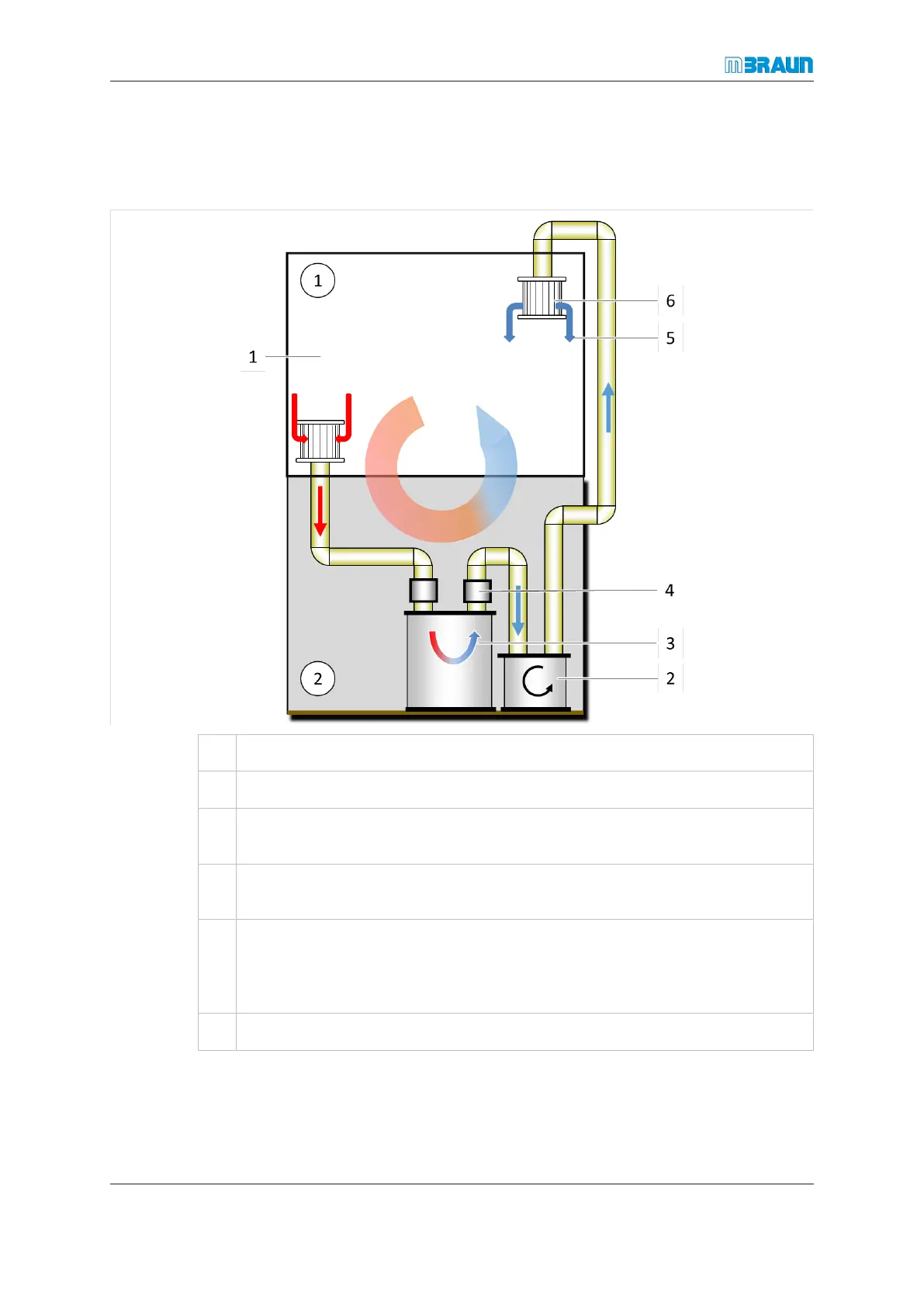

2.3.1 Gas flow general
① Glovebox or enclosure
② Gas purifier
1 Contaminated working gas (loaded with O
2
and H
2
O vapour) is suctioned by the
blower (displayed in red in the figure above).
2 The blower maintains the circulation of the gas flow. It is housed in a gas-tight
enclosure.
3 Reactor RKM:
¡ Removes O
2
by means of a reactive agent
¡ Moisture (water vapor) is removed by adsorption on a proprietary adsorbent
4 Electro-pneumatic valves, Siemens PLC-controlled
