2 Inert gas technology
MBRAUN standard platforms
Page
2 - 26
MB-20-G/MB-200G-W_MB-LABmaster_MB-200 MOD_TP700
Operating Manual - V5.0 - 04/2018 - STD

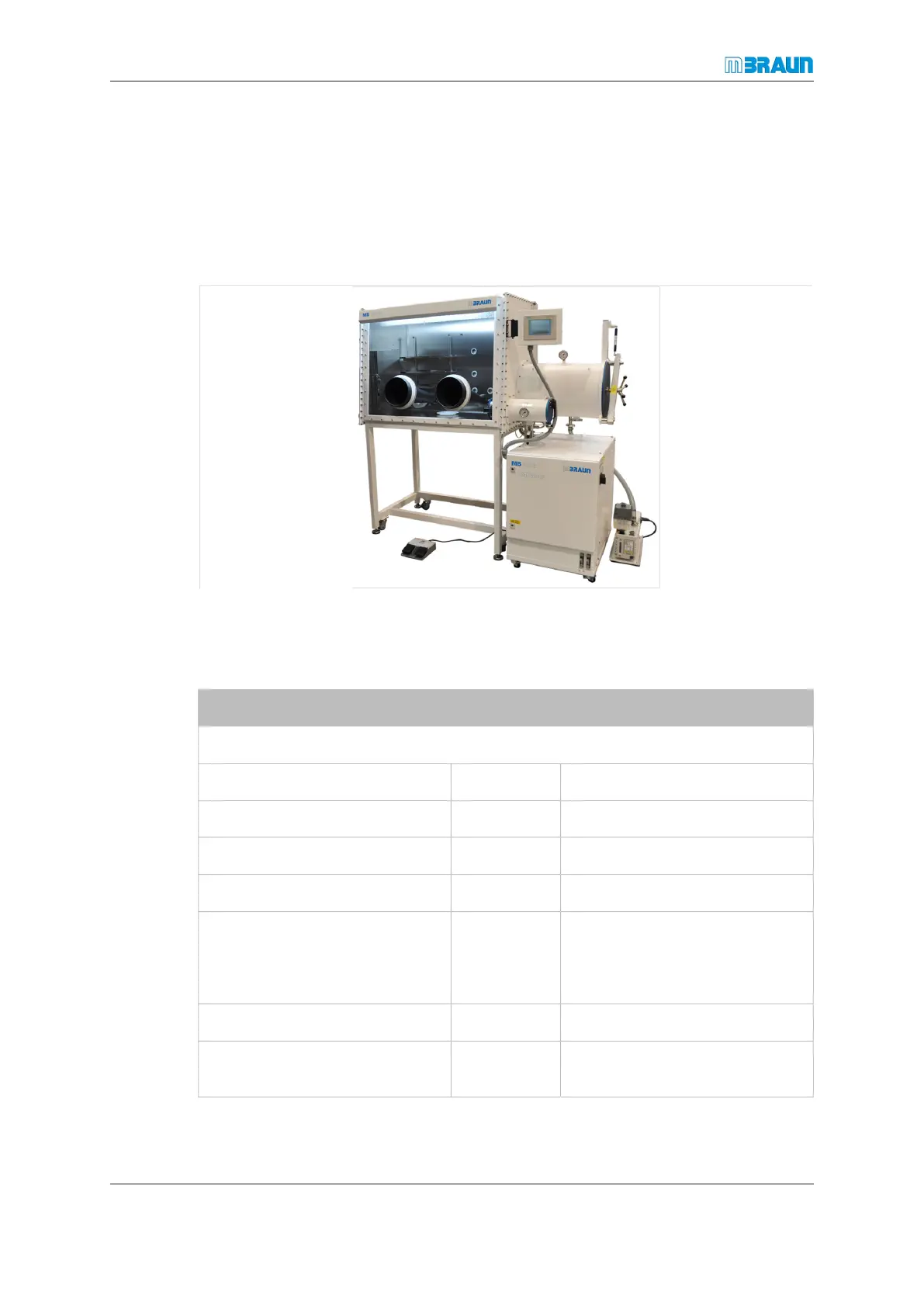

2.4.3 MOD box systems
These are gloveboxes (MB-200MOD), factory integrated with a gas purifier MB-20-G or
MB-200G-W. The box design is modular for easy expansion to a multibox system with up
to three boxes. Details are depending on the glovebox sizes.
The gloveboxes are available in different sizes.
2.4.4 Technical data
The following table shows the technical data for a standard (none-customised) MBRAUN
inert gas system.
Data Unit Value
System
Temperature range [°C] 15 … 35
Working gas He, Ar, N
2
, (CDA)
Main valves Electro-pneumatic
Control valves Electromagnetic
Electrical load (fla) 230V / 50 … 60Hz / 6.4 … 8 A or
115V / 50 … 60Hz / 13 … 16 A or
100V / 50 … 60Hz /15 … 18,5 A
Power Norm / Maximum [kW] 1,5 … 1,8 / 5,2 … 5,4
Electrical connection Typical single phase connection
(cord connected)
