4 Transport, installation and commissioning
Installation
Page
4 - 14
MB-20-G/MB-200G-W_MB-LABmaster_MB-200 MOD_TP700
Operating Manual - V5.0 - 04/2018 - STD

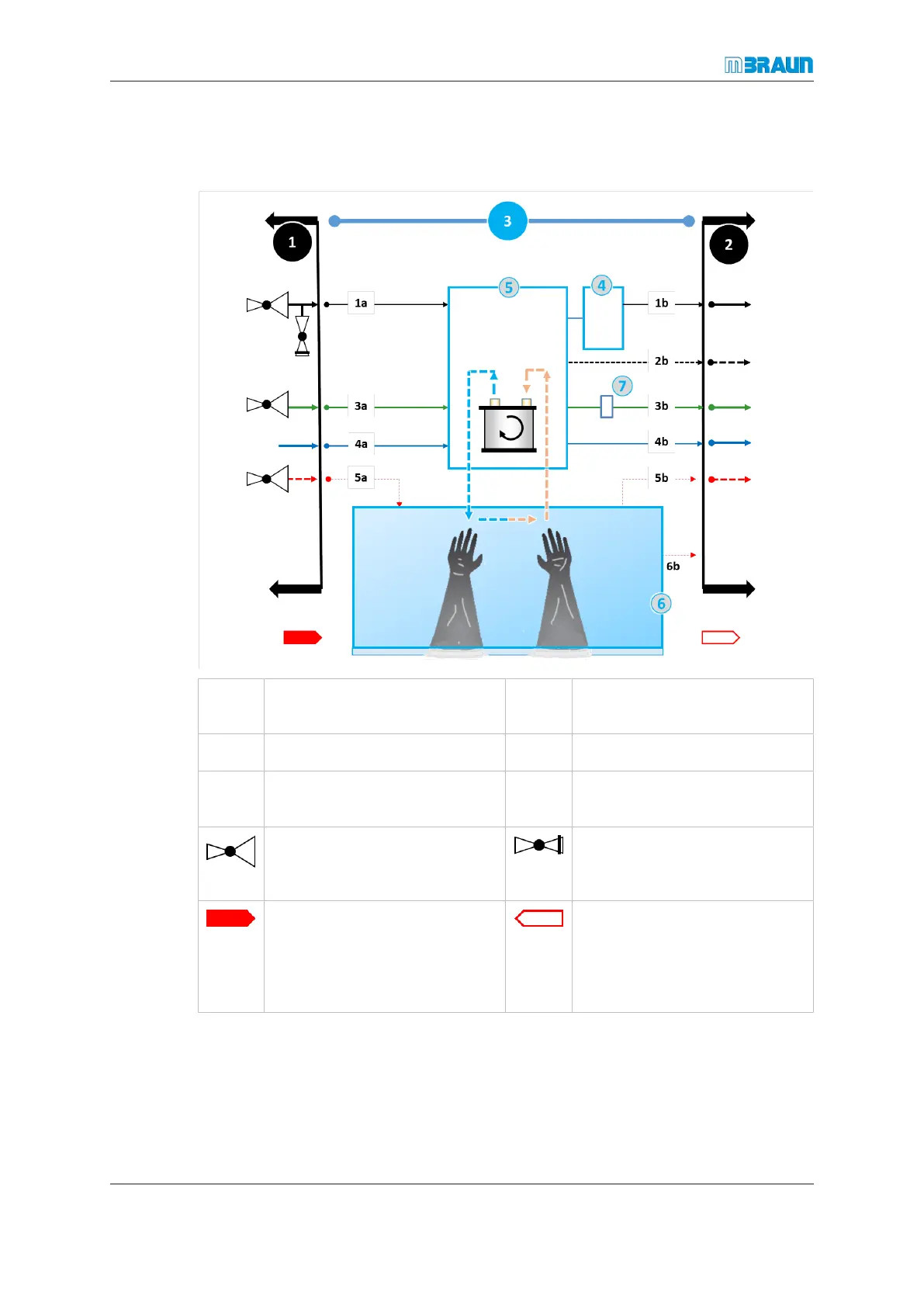

4.2.3 Media supply overview
Example: Combination with a MBRAUN glovebox
❶, ❷ Operating company’s responsib-
ility and equipment
❸ MBRAUN system and respons-
ibility
④ Vacuum pump ⑤ Gas purifier with blower
⑥ Glovebox ⑦ Condensing device for H
2
O va-
por (optional)
Pressure reduction valve, must
be provided by the operating
company
Overpressure safety relief valve:
080 kPa (0.8 bar)
Supply point INLETs, media
handover from operating com-
pany to MBRAUN equipment,
operating company's overpres-
sure safety relief valve
Connection points OUTLET and
exhaust handover
