4 Transport, installation and commissioning
Transport
Page
4 - 6
MB-20-G/MB-200G-W_MB-LABmaster_MB-200 MOD_TP700
Operating Manual - V5.0 - 04/2018 - STD
4.1.6 Moving a gas purifier

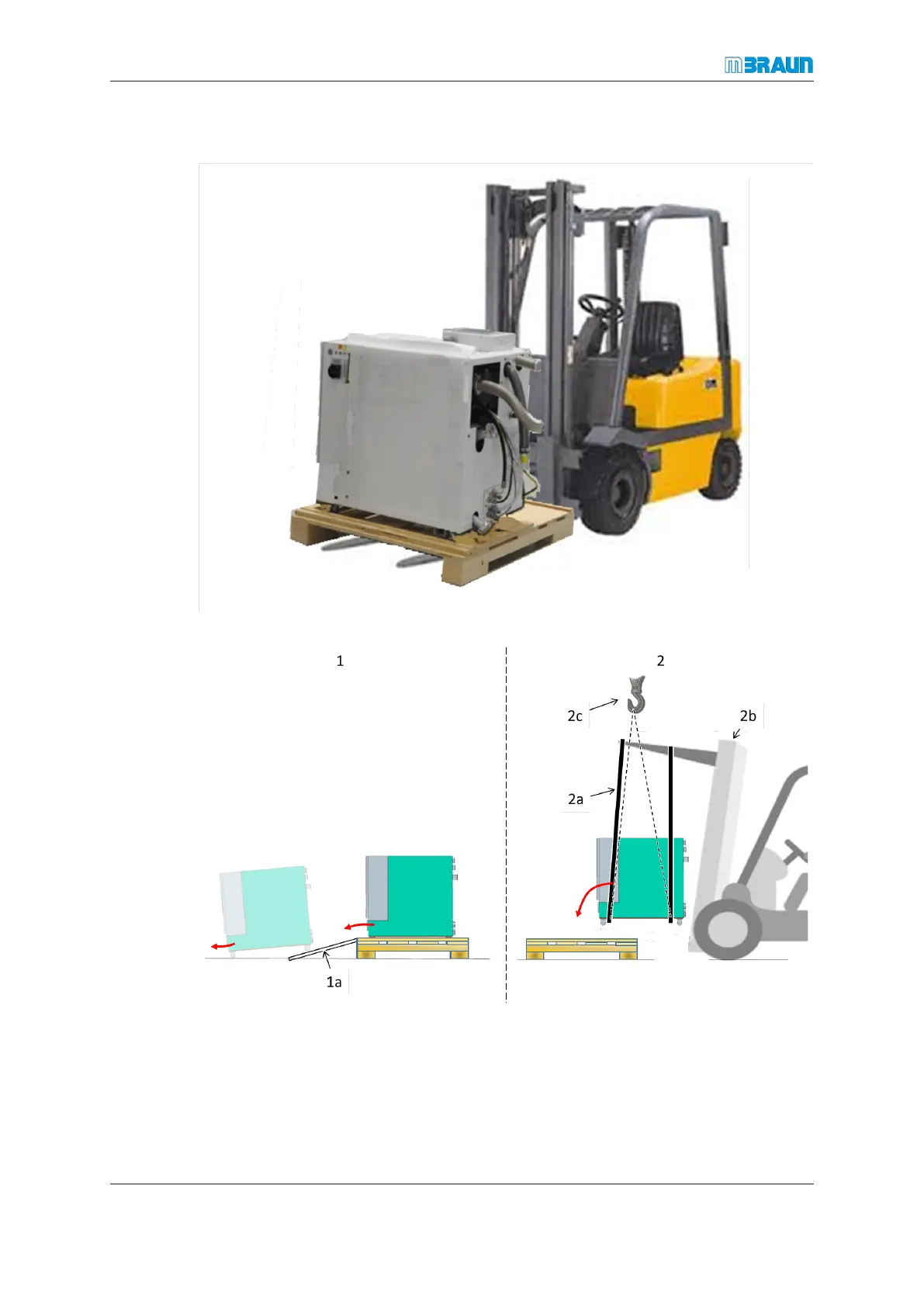

► Use a forklift to move the pallet with the gas purifier.
► To move the gas purifier off the pallet(1), build a ramp(1a) from the pallet level to
the floor level as displayed.
► Carefully slide the gas purifier over the ramp on its castors.
► To lift the gas purifier on to or off pallet(2), sling hoisting belts(2a) around the bot-
tom of the gas purifier.
► Use a forklift(2b) with sufficient lifting capacity to lift the gas purifier.
