4 Transport, installation and commissioning
Transport
MB-20-G/MB-200G-W_MB-LABmaster_MB-200 MOD_TP700
Operating Manual - V5.0 - 04/2018 - STD
Page
4 - 5

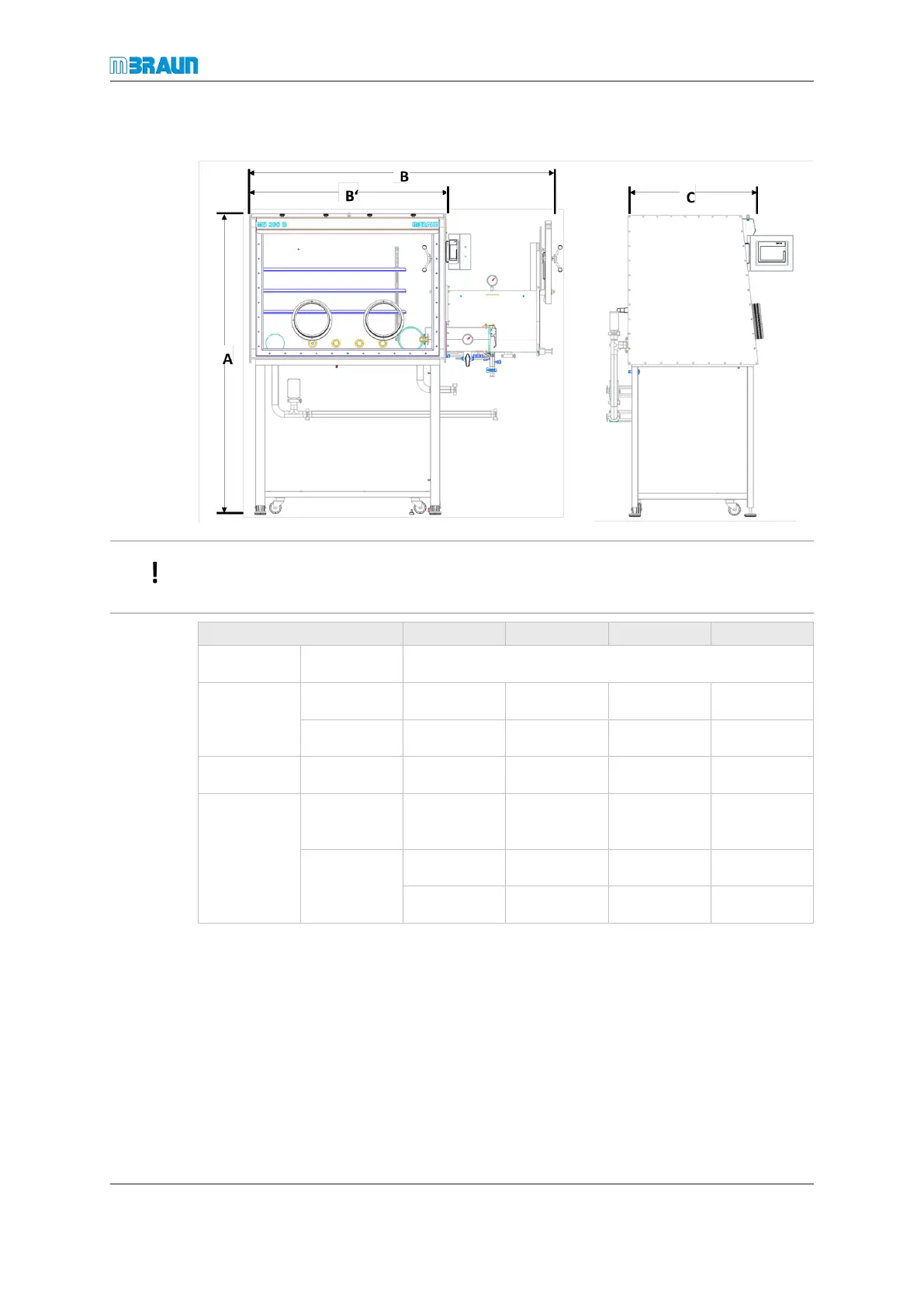

Dimensions and weight
The values are average values of standard systems. For the exact weight and dimen-
sions of your system, refer to delivery papers.
Parameter Variant 1 Variant 2 Variant 3 Variant 4
Height A [mm] 1930
Width B [mm] 2000 2250 2550 2750
B’ [mm] 1250 1500 1800 2000
Depth C [mm] 780 1000 1200
Weight Single
sided
346 kg 378 kg 418 kg 583 kg
Double
sided
397 kg 426 kg 477 kg 508 kg
425 kg 457 kg 511 kg 544 kg
To Next Page
