2 Inert gas technology
Components
MB-20-G/MB-200G-W_MB-LABmaster_MB-200 MOD_TP700
Operating Manual - V5.0 - 04/2018 - STD
Page
2 - 9
Types of antechambers
The following different antechambers could be assembled on the system.
Antechamber types
Function Type Diameter / Volume Function
Main ante-
chamber
Round
antecham-
ber
ø 390 mm, standard ante-
chamber, MB-SCH-390, MB-
MINI-AC-150
Transfer of process ma-
terials
Rectangu-
lar ante-
chamber
e.g. 300 x 300 mm (as straight
model MB-SCH-300-SQ, MB-
SCH-200-SQ or in L-form, op-
erating company-specific)
Loading from the side or
from the front
Special
antecham-
ber
Optional: additional dimen-
sions (customised)
Optional on request
T-ante-
chamber
Optional in two-box systems
MB-SCH-T-390, MB-MINI-
T-150
Transfers processes
between 2 boxes or
between one box and
outside
Additional
antecham-
ber
Bottom
antecham-
ber
ø 150 mm, optional on the bot-
tom of the workspace
Transfer of smaller ma-
terials to outside in
downward direction
On request, “No Antechamber” gloveboxes (“NAC” glovebox) are available. In this case,
the antechamber is replaced by a door lock which provides access to a neighbouring
glovebox.

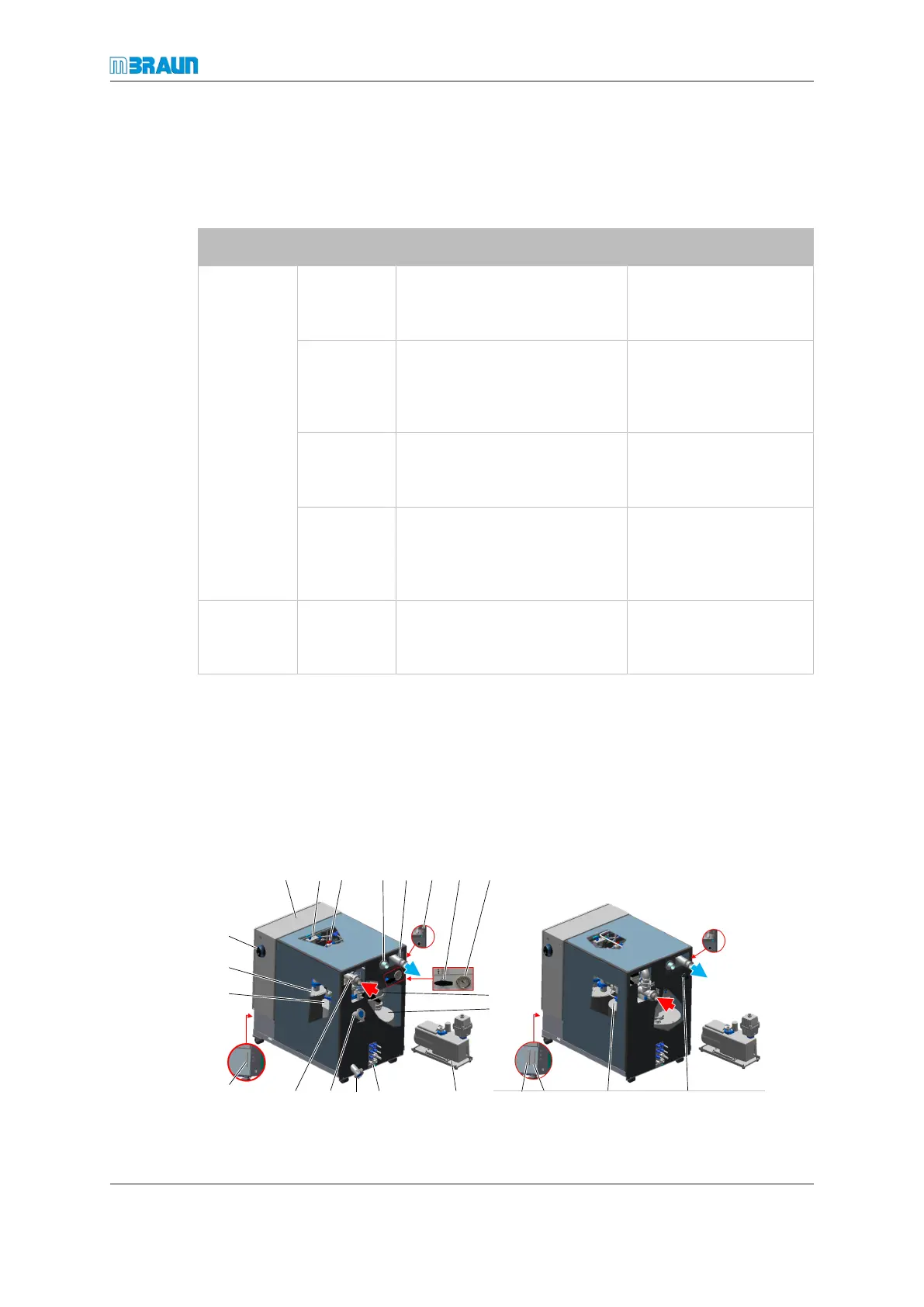

2.2.3 Gas purifier
Optionally, the gas purifier has a solvent filter. If so, solvent vapors can be removed from
the working gas by continuous circulation of the working gas through a non-regenerative
(figure left) or regenerative (figure right) solvent filter.
1
2 3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2223
20
21
