9 Antechamber operation (Vacuum antechamber)
Antechamber door operation
Page
9 - 4
MB-20-G/MB-200G-W_MB-LABmaster_MB-200 MOD_TP700
Operating Manual - V5.0 - 04/2018 - STD

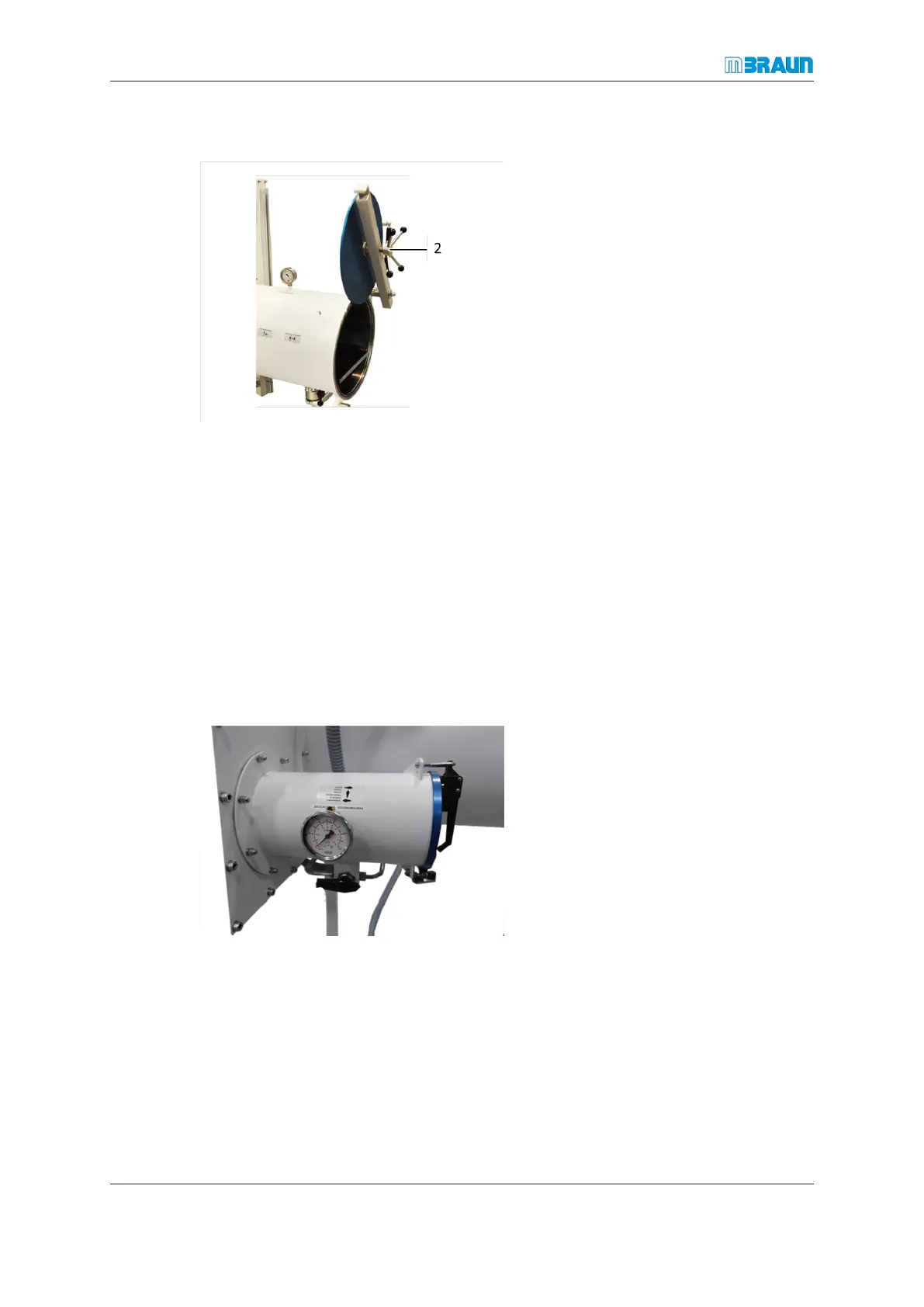

Close the door manually
Prerequisite
> Antechamber tray must be inside in the middle position.
► Carefully tilt the door bar(2) and antechamber door downwards. Do not use a large
amount of force to tilt the door bar.
► Carefully turn the rotary lock clockwise until the door is locked. If the lock is over-
tightened, it may damage the seals.
9.3.2 Mini antechamber
The mini-antechamber is equipped with a lever locking mechanism. Operation of the in-
ner and outer doors is identical.
Opening the outer door
Lever is locked (lever is engaged in the top catch).
