2 Inert gas technology
Components
Page
2 - 6
MB-20-G/MB-200G-W_MB-LABmaster_MB-200 MOD_TP700
Operating Manual - V5.0 - 04/2018 - STD
2.2.2 Antechamber
Mini antechamber
The mini antechamber (Mini AC) has a diameter of 150 mm and can be used for loading
and unloading of material with a manual transfer process. Optional, Mini AC with
Siemens PLC-controlled transfer processes are available. This includes time- or pressure
controlled processes and also door lock features.

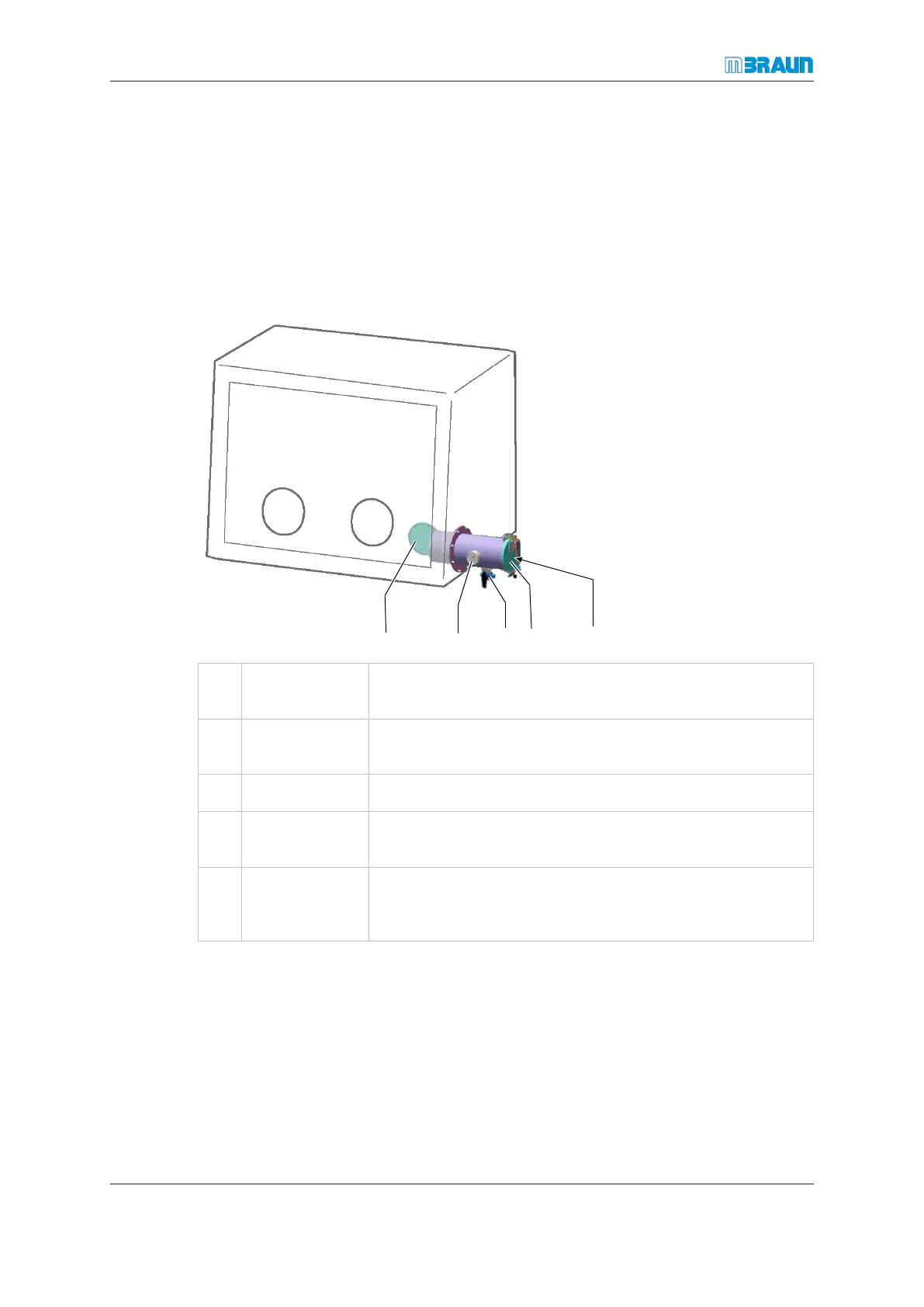

1 Inner door
Mini-AC
Inner door of the mini antechamber
2 Mechanical
pressure gauge
Indicates the pressure inside the mini antechamber
3 Manual valve Runs the antechamber processes of the mini antechamber
4 Outer door
Mini-AC
Outer door of the mini antechamber
5 Mini antecham-
ber tray (not
visible)
Used to transfer material out of and into the glovebox.
