2 Inert gas technology
Components
MB-20-G/MB-200G-W_MB-LABmaster_MB-200 MOD_TP700
Operating Manual - V5.0 - 04/2018 - STD
Page
2 - 7

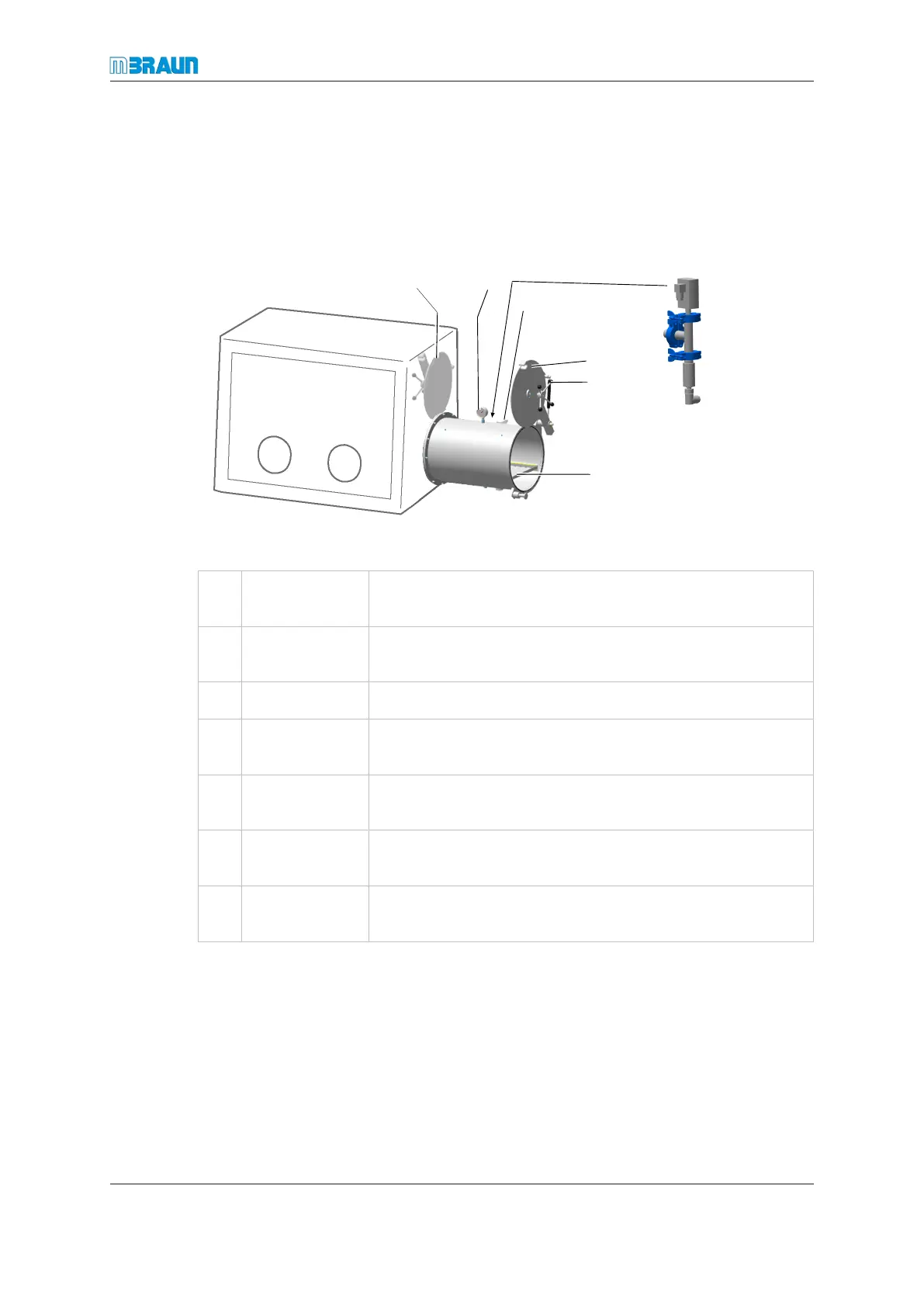

Antechamber pressure controlled
The round antechamber is the main antechamber with a diameter of Ø 390 mm. It can be
used to transfer materials into and out of the glovebox without contaminating the atmo-
sphere inside the box, the inside box atmosphere remains maintained.
Siemens PLC-controlled transfer processes.
1 Antechamber
inner door
Inner door of the Antechamber with mechanical locking mech-
anism.
2 Mechanical
pressure gauge
Indicates the pressure inside the antechamber
3 Valves Valves for automated antechamber processes
4 Antechamber
outer door
Outer door of the antechamber with mechanical locking
mechanism.
5 Locking mech-
anism
Mechanical locking mechanism
6 Main ante-
chamber tray
Used to transfer material out of and into the glovebox.
7 Pressure
sensors
For pressure controlled antechamber processes
