8A O2 and H2O analysers
Moisture analyser
MB-20-G/MB-200G-W_MB-LABmaster_MB-200 MOD_TP700
Operating Manual - V5.0 - 04/2018 - STD
Page
8A - 7
Materials needed
¡ Soft, absorbent, lint-free cloth (cotton) or absorbent household paper.
¡ Distilled water.
¡ A small amount of 85% phosphoric acid (H
3
PO
4
).
¡ A blind cover for sealing the circulation pipework (DN40).
¡ Protective clothing, incl. protective gloves and glasses.
Prerequisite
¡ Switch off circulation
¡ Set glovebox pressure to a positive value of > 300 Pa (3 mbar)

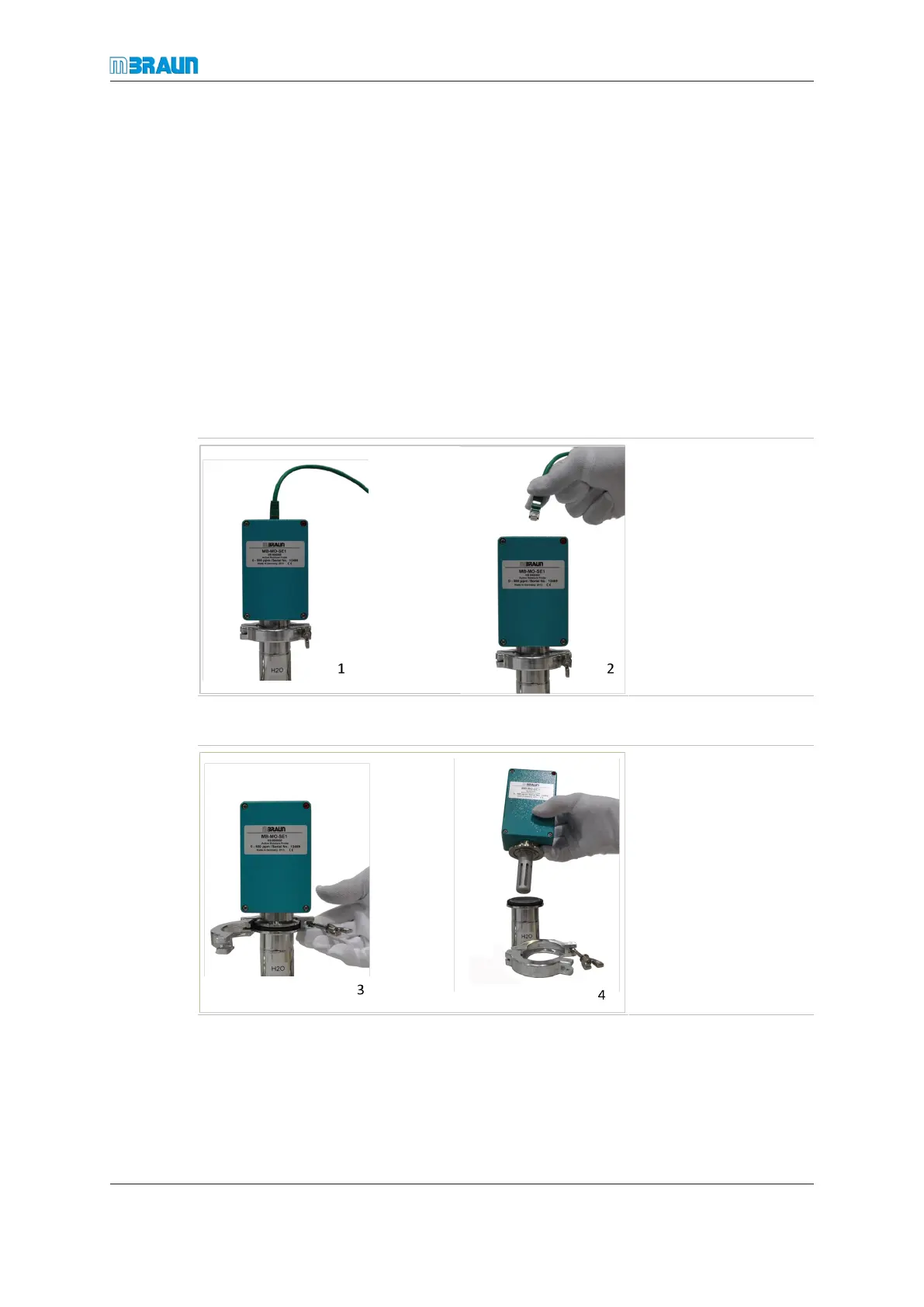

Unplugging the analyser cable
Moisture analyser with
cable (1)
► Unplug connector (2)
Disassembling the analyser
► Loosen the clamp (3)
► Remove the ana-
lyser (4)
