4 Transport, installation and commissioning
Transport
MB-20-G/MB-200G-W_MB-LABmaster_MB-200 MOD_TP700
Operating Manual - V5.0 - 04/2018 - STD
Page
4 - 9

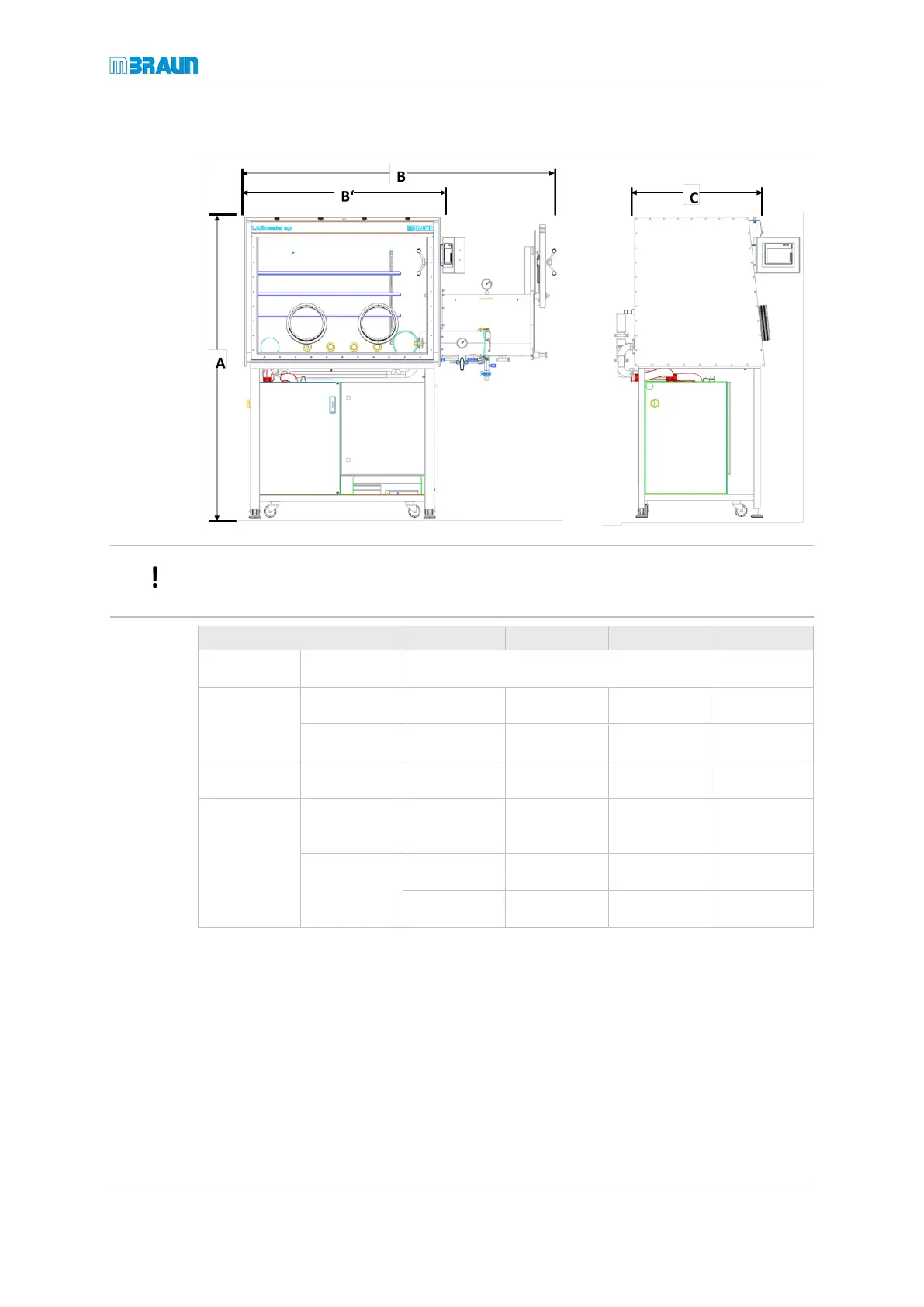

Dimensions and weight
The values are average values of standard systems. For the exact weight and dimen-
sions of your system, refer to delivery papers.
Parameter Variant 1 Variant 2 Variant 3 Variant 4
Height A [mm] 1930
Width B [mm] 1950 2200 2500 2750
B’ [mm] 1250 1500 1800 2000
Depth C [mm] 870 1125 1325
Weight Single
sided
465 kg 498 kg 537 kg 558 kg
Double
sided
519 kg 548 kg 599 kg 628 kg
547 kg 579 kg 633 kg 665 kg
