Moog MSD Servo Drive Series User Manual

MOOG
ID
No.: CB40859-001 Date: 02/2018
MSD Servo Drive- Device Help
123
7 Control

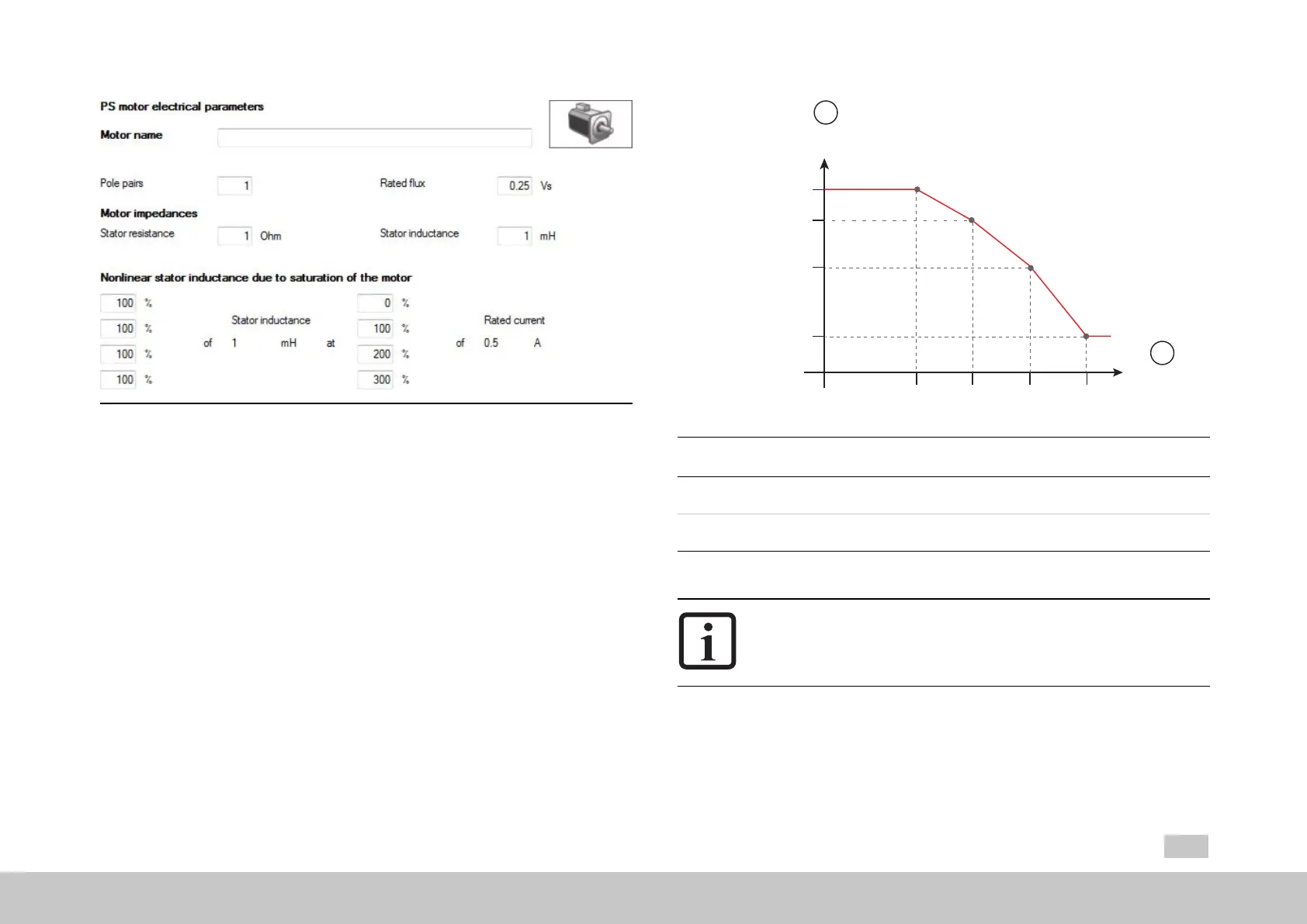

Fig. 7.16: “PS motor electrical parameters” screen
I
rated [4]
I
rated [5]
I
rated [6]
I
rated [7]
Inductance [%]
1
Index [0] = 100 %
Index [1] = 90 %
Index [2] = 68 %
Index [3] = 31 %
Rated current
[%]
2
Fig. 7.17: Diagram: “Scaling of q-inductance L in [%]”
①
P 472[0] - [3] Lsig_q@Ix
Scalingofq-statorinductancein[%];
interpolationpoints0to3.
②
P 472[4] - [7] MOT_CurrentIx
Scalingofratedcurrentin[%];
interpolationpoints4to7.
Legend for Diagram: “Scaling of q-inductance L in [%]”
NOTE
 Betweentheinterpolationpointsthescalingfactorisinterpolated
inlinearmode.Thecurrentscalingoftheinductanceisdisplayed
inthescopevariable74_Is_ActVal .
