F3SG-SR
User’s Manual
Chapter8 Optional Accessories (Sold Separately)
Appendix
E

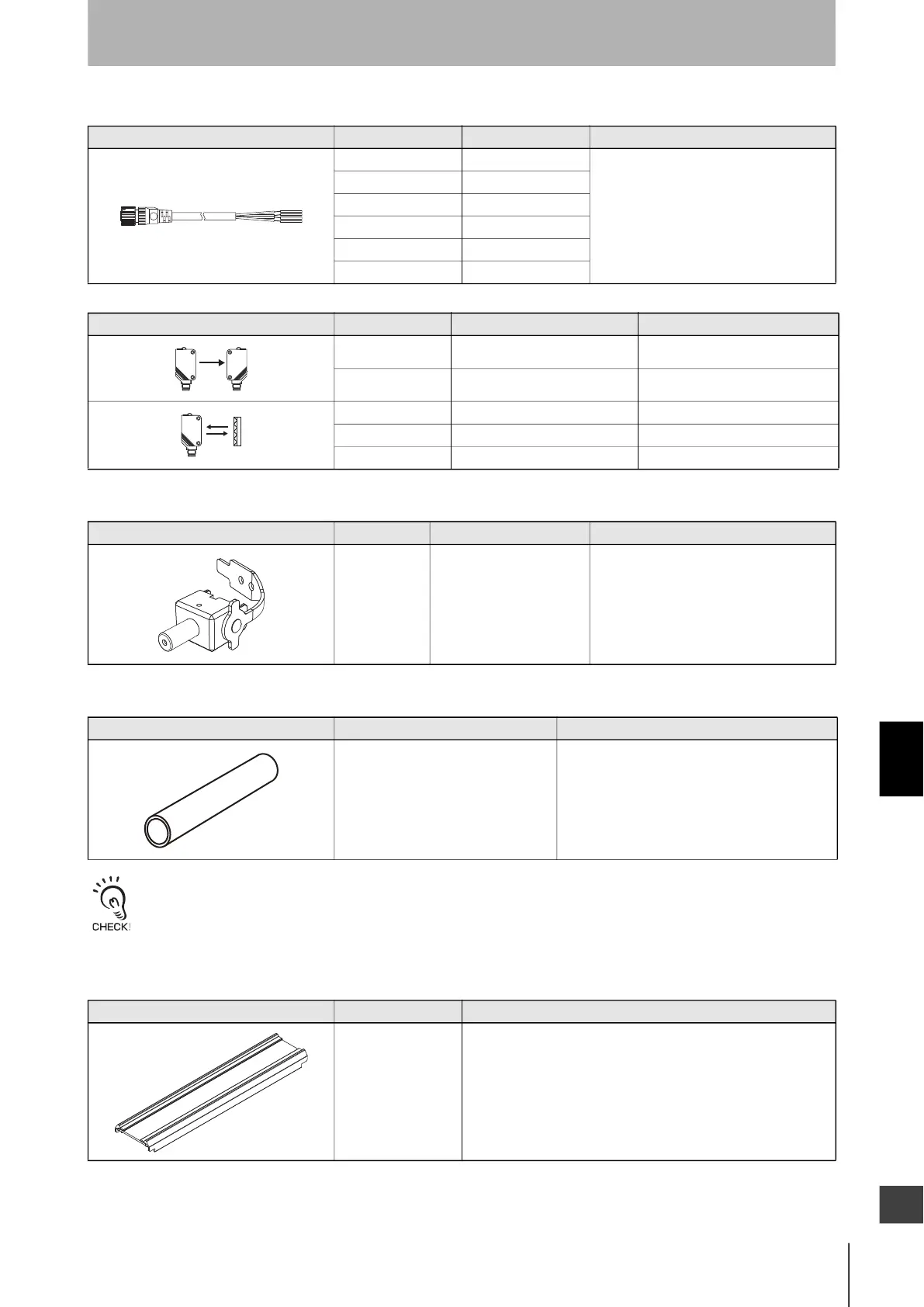

Connector Connected to Cable, Socket on One Cable End
Muting Sensor
Laser Alignment Kit
Test Rod
Spatter Protection Cover (two pieces per set)
Appearance Model Application Remarks
XS5F-D421-C80-F 1 m M12 connector (4-pin), 4 wires.
Used to connect a reset switch connector
to a reset switch.
XS5F-D421-D80-F 2 m
XS5F-D421-E80-F 3 m
XS5F-D421-G80-F 5 m
XS5F-D421-J80-F 10 m
XS5F-D421-L80-F 20 m
Appearance Model Sensing method / output type Sensing distance
E3Z-T66A Through-beam/NPN output 10 m
E3Z-T86A Through-beam/PNP output 10 m
E3Z-R66 Retroreflective/NPN output 2 m
E3Z-R86 Retroreflective/PNP output 2 m
E39-R1S Retroreflective/Reflectors 2 m
Appearance Model Application Remarks
F39-PTG You can attach this to
F3SG-SR. The laser light
assists coarse beam
alignment.
Red semiconductor laser
(wavelength 650 nm, 1 mW max., JIS
Class 2, IEC Class 2, FDA Class II)
Appearance Model Diameter
STI-TO14
STI-TO24
14 mm dia.
25 mm dia.
To check operation before use, purchase and use the test rod.
Appearance Model Remarks
F39-HSG Two pieces per set, common for emitter/receiver.
For the F3SG-R of the protective height of 2,000 mm or longer, use
two Spatter Protection Covers of different lengths.
Please note the following:
• The operating range of the F3SG-SR attached with the Spatter
Protection Cover is 10% shorter than the rating.
Material: PC resin (Transparent cover), ABS resin (Side wall)
