Omron F3SG-SRB Series User Manual

363
F3SG-SR
User’s Manual
Chapter8 Optional Accessories (Sold Separately)
Appendix
E

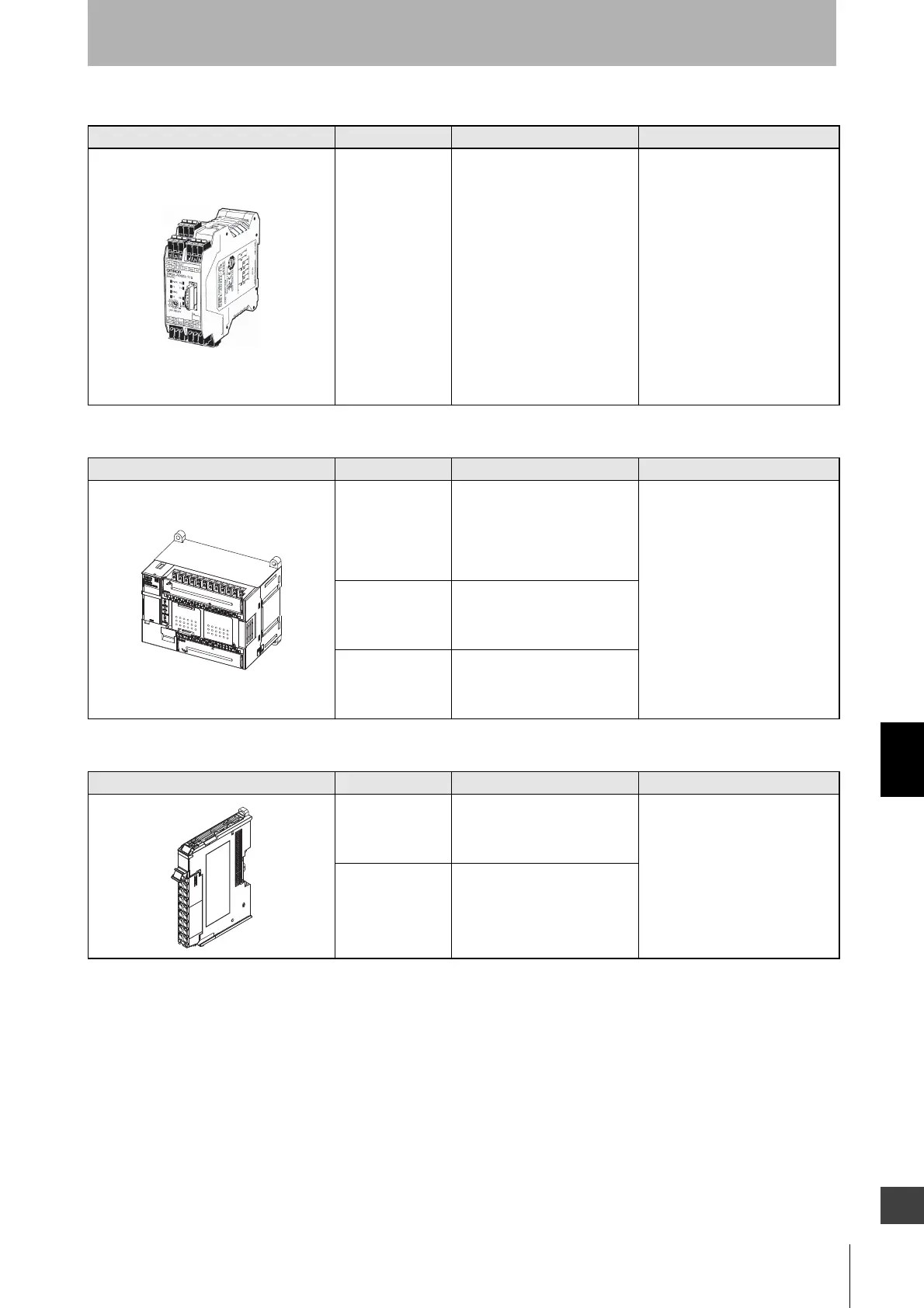

Control Unit
Control Unit
Control Unit
Appearance Model Output Remarks
G9SX-AD322-T15 Safety output (solid-state):
source output (PNP) x 3
(instantaneous), source output
(PNP) x 2 (OFF-delayed)
Auxiliary output (solid-state):
source output (PNP) x 2
• An F39-JGC Root-Straight
Cable or the combination of an
F39-JGR3K Root-Plug Cable for
Extended and an F39-JGA
Single-Ended Cable is required.
• An F3SG-SR in PNP system can
be connected.
• 16 patterns of OFF-delayed
output for up to 15 s can be set.
• The OFF-delayed output can be
used as instantaneous output by
setting it to 0 s.
• Can be configured for partial
control and total control.
• Can be extended to connect a
relay unit.
Appearance Model Output Remarks
G9SP-N10S Safety output (solid-state):
source output (PNP) x 4
Test output (solid-state): source
output (PNP) x 4
Standard output (solid-state):
source output (PNP) x4
• An F39-JGC Root-Straight
Cable or the combination of an
F39-JGR3K Root-Plug Cable for
Extended and an F39-JGA
Single-Ended Cable is required.
• An F3SG-SR in PNP system can
be connected.
G9SP-N10D Safety output (solid-state):
source output (PNP) x 16
Test output (solid-state): source
output (PNP) x 6
G9SP-N20S Safety output (solid-state):
source output (PNP) x 8
Test output (solid-state): source
output (PNP) x 6
Appearance Model Application Specifications
NX-SIH400 Safety input (solid-state): sink
input (PNP) x 4
Test output (solid-state): source
output (PNP) x 2
• An F39-JGC Root-Straight
Cable or the combination of an
F39-JGR3K Root-Plug Cable for
Extended and an F39-JGA
Single-Ended Cable is required.
• An F3SG-SR in PNP system can
be connected.
NX-SID800 Safety input (solid-state): sink
input (PNP) x 8
Test output (solid-state): source
output (PNP) x 2
