Displayviews
Relatedtopics
•Transparencyfunctiononpage163

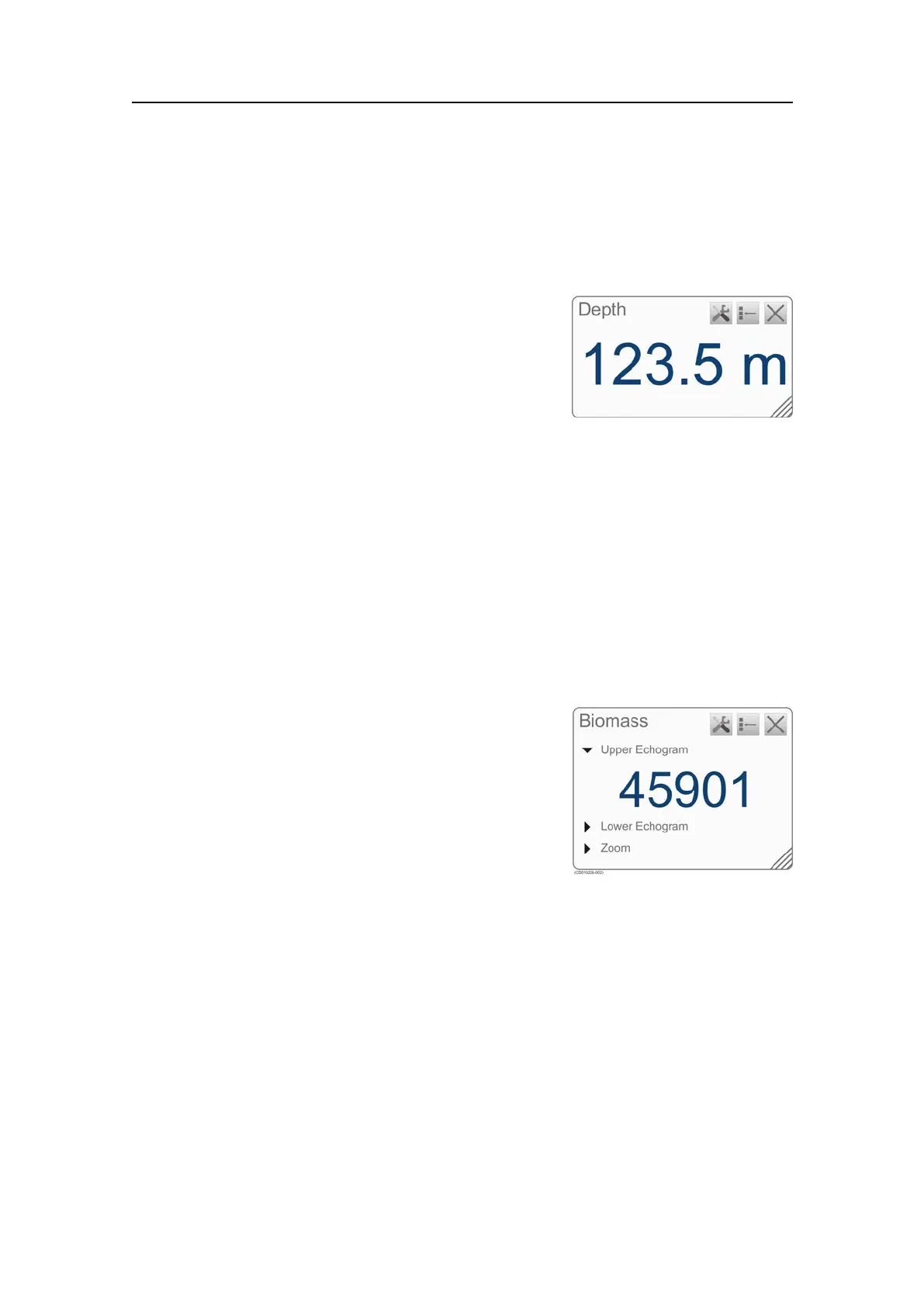

Depthinformationpane
Toopenthisinformationpane,clicktheDepthicon
ontheTitleBar.
TheDepthinformationpanedisplaysthecurrentdepth
forthechosentransducer.
TheToolbuttonintheinformationpaneopensthe
BottomDetectordialogbox.Thisdialogboxisalso
availablefromtheActivemenu.
ThepurposeoftheBottomDetectordialogboxistodenetheupperandlowerdepth
limitsmostlikelytobeusedduringtheEK15operation.Inthisdialogbox,youcanalso
modifythesettingforBottomBacksteptochangethebottomdetectionrelativetothe
bottomecho.
Relatedtopics
•Activemenuonpage139
•BottomDetectordialogboxonpage218
Biomassinformationpane
Toopenthisinformationpane,clicktheBiomassicon
ontheTitleBar.
TheBiomassinformationpanedisplaysthecurrent
biomass.Thecalculationisbasedontheselectionyou
havemadeintheCalculationIntervaldialog;time,ping
orachosenpartofthecurrentview.
Onlythebiomasscalculatedforthecurrenttransducer
isshown.
TheToolbuttonopenstheCalculationIntervaldialog.Thisdialogisalsoavailablefrom
theSetupmenu.
Parameters
•UpperEchogram
Thisbiomassvalueiscalculatedfromtheshechoesfromthetopechogramfor
thechosenchannel.
Bydefault,thisisasurfaceechogram.
•LowerEchogram
Thisbiomassvalueiscalculatedfromtheshechoesfromthebottomechogram
forthechosenchannel.
Bydefault,thisisabottomechogram.
351718/C
125
