Themenusystem

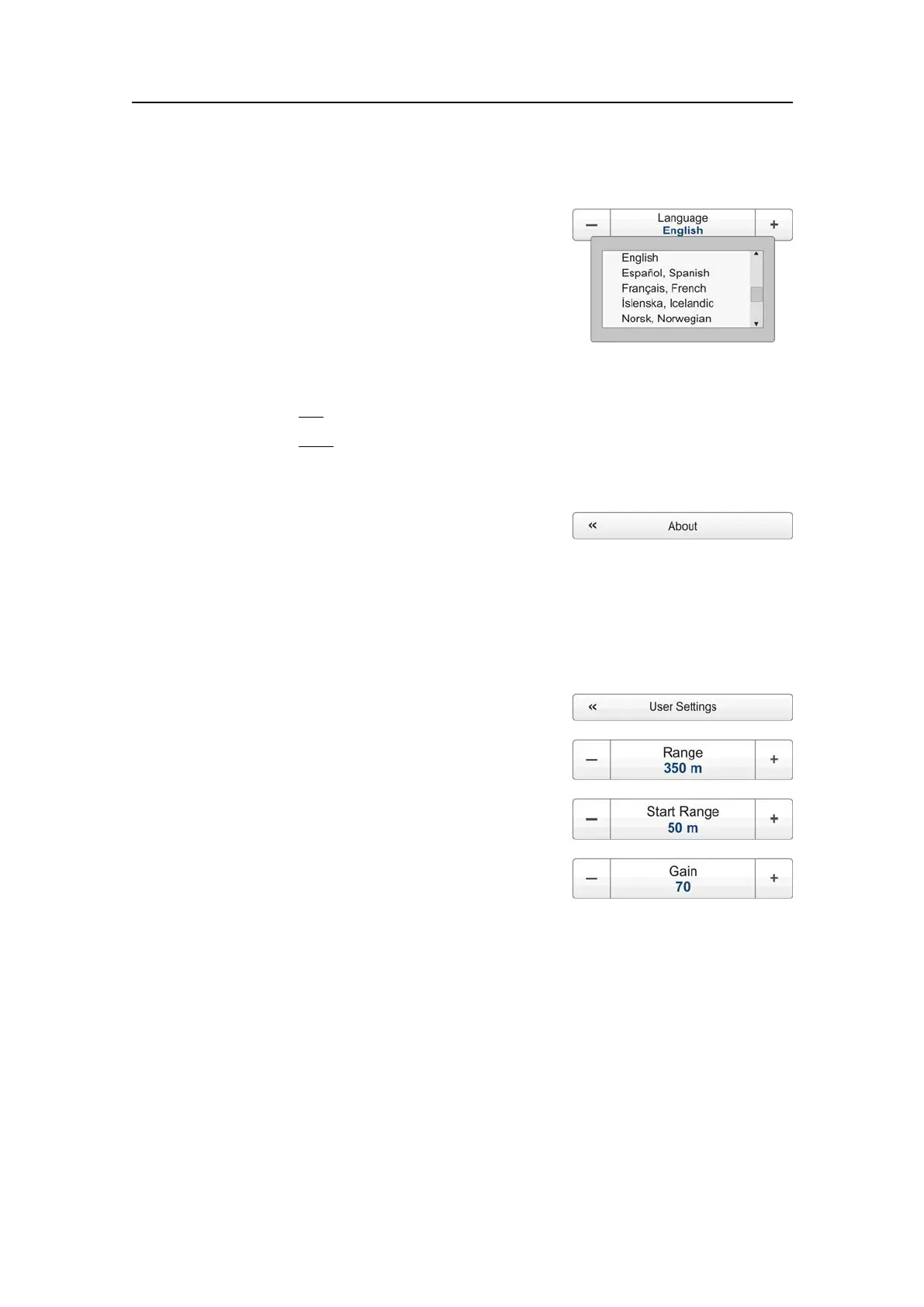

Howtoselectaparameterusingasubmenu
1Clickthemiddlesectionofthebuttontoopen
asubmenu,thenclicktherequestedcommand,
optionorbutton.
Thechosenvalueisapplied,andthesubmenuis
automaticallyclosed.
2Wheneverapplicable,youcanalsoaccessthe
submenubyclickingtheleftandrightsideofthe
button.Thismethodwillnotshowyouthechoicesonthesubmenu.
aClickontheleft
sideofthebuttontoselecta'lower'submenuchoice.
bClickontheright
sideofthebuttontoselecta'higher'submenuchoice.
Howtoselectparametersusingadialogbox
1Clickanywhereonthebuttontoopenaseparate
dialogbox.
Mainmenu
ThefollowingfunctionsandparametersareavailablefromtheMainmenu.
1UserSettings
TheUserSettingsdialogboxallowsyoutosavethe
currentusersettings(parameterselections),andto
retrievefactoryorpreviouslysavedusersettings.
→UserSettingsdialogboxonpage142
2Range
TheRangefunctionallowsyoutospecifythe
verticalrangeofthewatercolumncoveredbythe
echogram.Therangeisdenedfromaselected
startrange,anddowntoavaluebeneaththe
currentbottomdepth.Thevalueshownandselectedisbydefaultappliedonlyto
thecurrentlyselectedechogram.
→Rangefunctiononpage144
3StartRange
TheStartRangefunctionallowsyoutospecifythestartdepthoftheechogram,that
isfromwhichdepthinthewatercolumnthepresentationshallstart.Thevalue
shownandselectedisappliedtothecurrentlyselectedechogramtype.
→StartRangefunctiononpage146
351718/C
135
