Gettingstarted

Presentationoverview

ThedisplaypresentationofferedbytheSimradEK15systemprovidesanumberof

echograms.ItalsoprovideaTitleBar,aStatusBarandamenusystemtofacilitate

operationusingacomputermouseoratrackball.

Topics

•Echosounderpresentationsonpage35

•TitleBaronpage37

•StatusBaronpage38

•Themenusystemonpage40

•Themenubuttonsonpage40

Echosounderpresentations

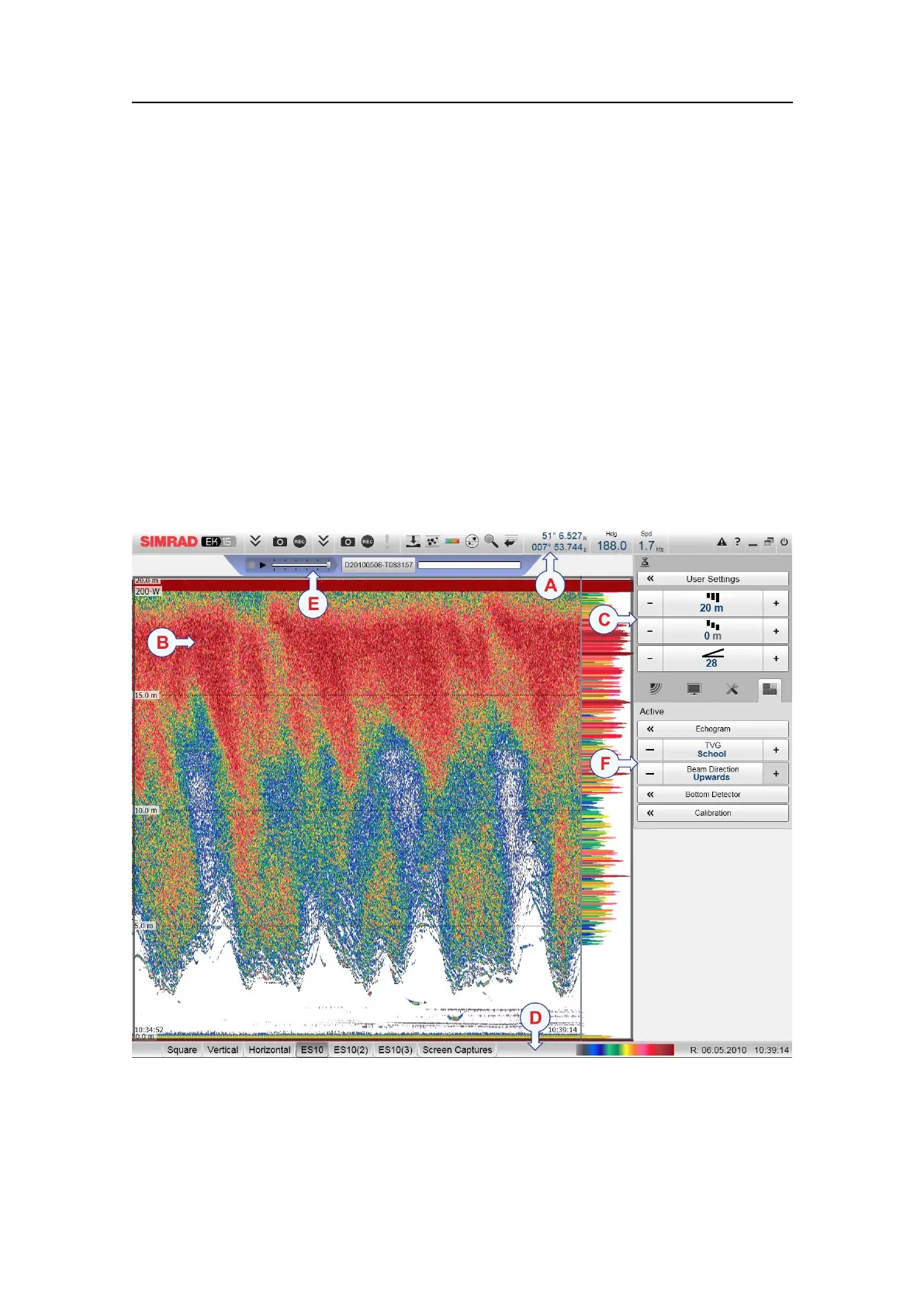

AtypicalEK15displaypresentationisshown.

Notethatthepresentationisshowninmodeupwardswiththetransducerpositionedat

thebottomlookingup.

351718/C
