Simrad EK15 User Manual

SimradEK15
TitleBar
TheEK15TitleBarislocatedonthetopofthedisplaypresentation,anditisstretched
fromthefarlefttothefarrightside.
Topics
•Purposeanddescriptiononpage106
•Logoandproductnameonpage107
•Menubuttononpage107
•ScreenCapturebuttononpage108
•Recordbuttononpage108
•Informationpaneiconsonpage109
•NavigationFieldonpage110
•Functionbuttonsonpage112
Purposeanddescription

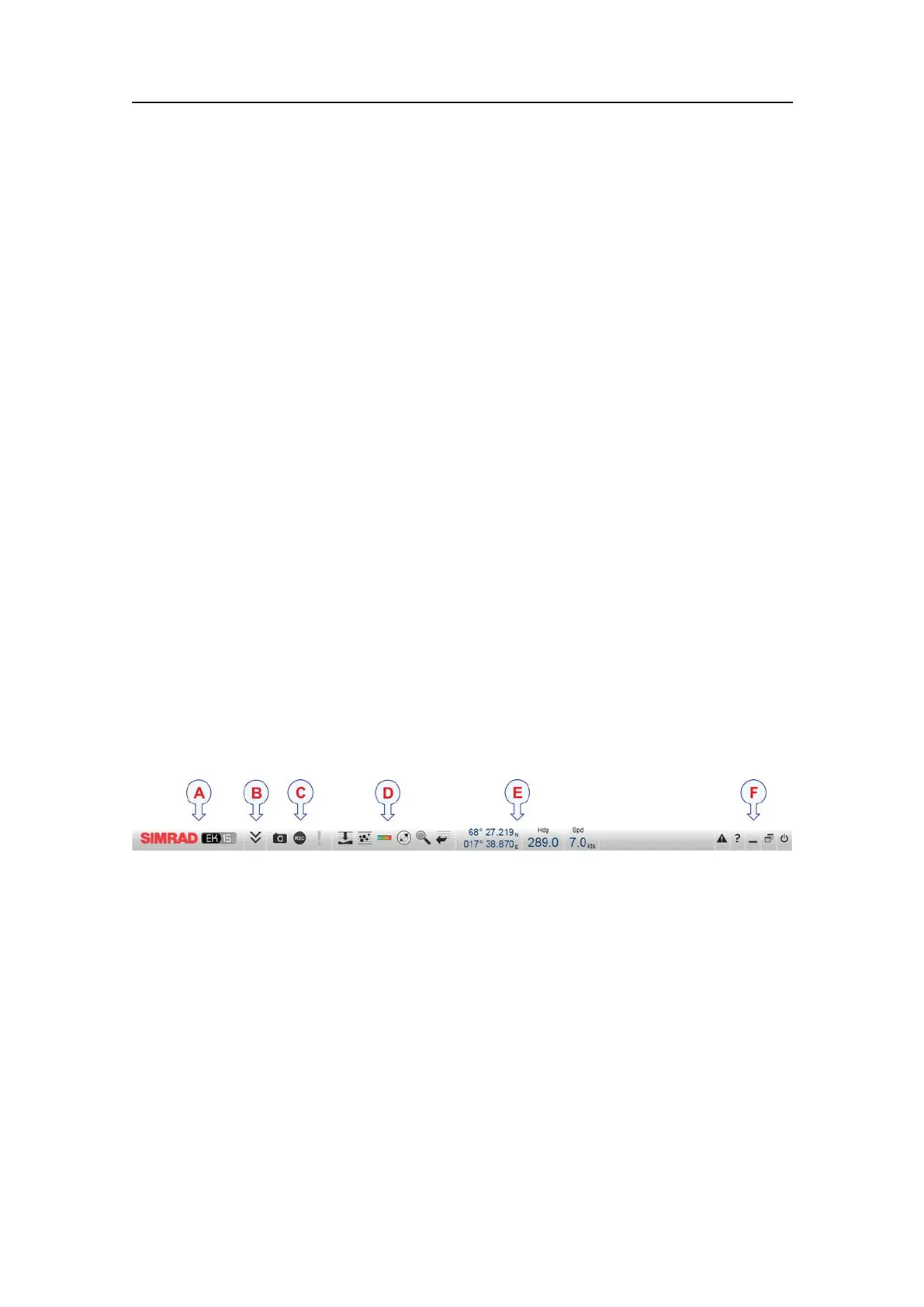

TheEK15TitleBarislocatedonthetopofthedisplaypresentation,anditisstretched
fromthefarlefttothefarrightside.
ThepurposeoftheTitleBaristogiveyoufastaccesstokeyfunctionalityand
navigationalinformation.
Itprovidesbuttonstohideorshowthemenu,tomakeascreencapture,toopenthe
Messagesdialogbox,andtoopenthecontextsensitiveon-linehelp.Italsoprovidesa
fewbuttonsrelatedtooperatingsystemfeatures.Andmoreimportant,theTitleBar
providesthededicatedbuttonstoopenthevariousinformationpanes.
ALogoandproductname.
ThiselementidentiestheSimradasthemanufactureroftheEK15,andtheproduct
name.
BMenu
Clickthisbuttontohideorrecallthemenusystem.
CScreencapture,RecordandEvent
Thesebuttonsareprovidedforeasyaccesstorecordingandannotationfunctions.
DInformationpanes
Clickanyofthesebuttonstoopenandcloseaninformationpane.
ENavigationeld
Thesearenotbuttons,butinformationeldsprovidingcurrentdatarelatedtothe
vesselmovements.
106
351718/C
