Functionsanddialogboxes

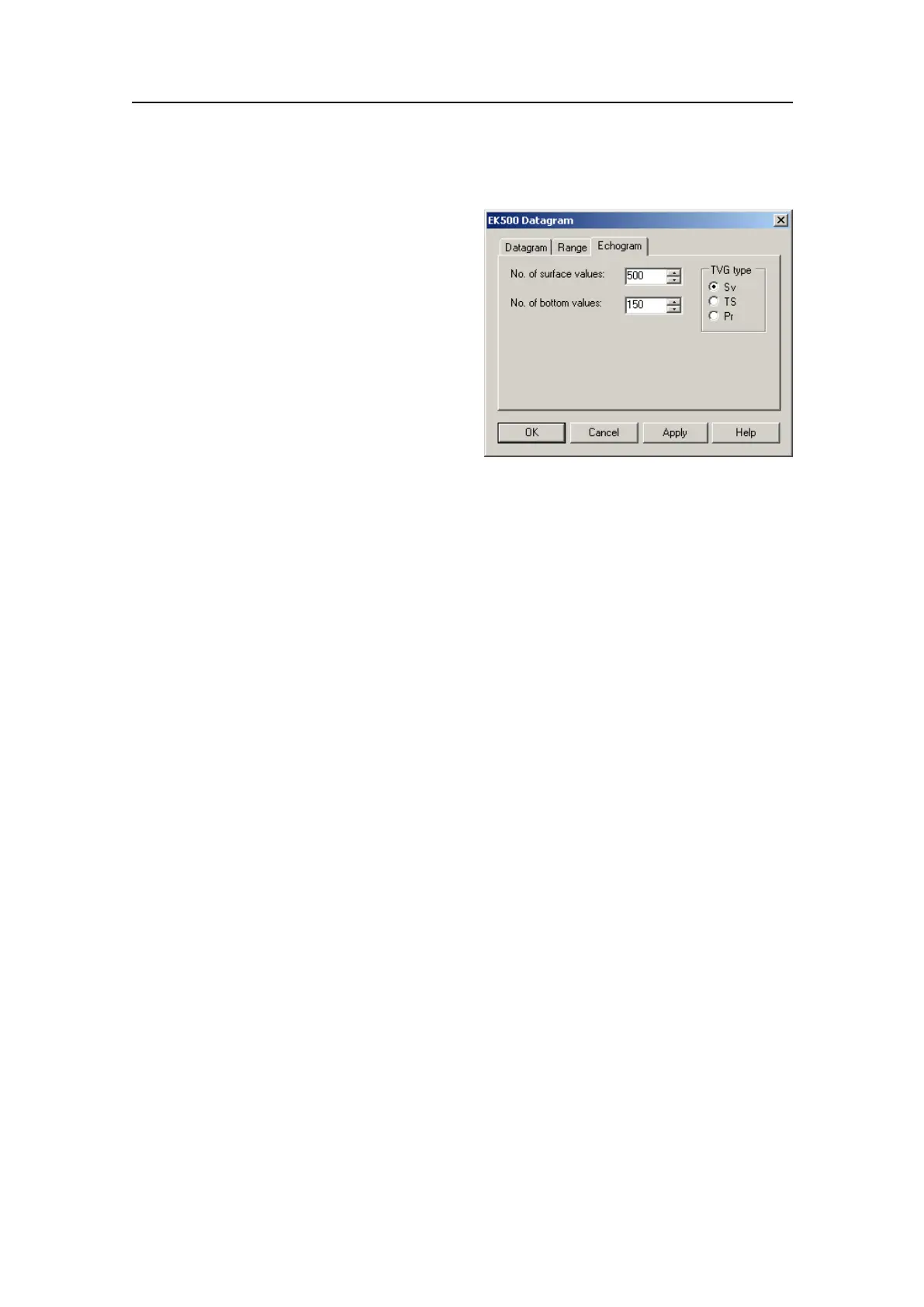

EK500Datagram;Echogram

Usethistabtospecifythenumber

ofsurfaceandbottomvaluesforthe

Echogramdatagrams.

Parameters

1No.ofSurfaceValues

Selectthenumberofechogram

samplestoexportinthepelagicpart

oftheechogram.

ForcorrectoutputtotheOlexsystem,

setthisparameterto500.

2No.ofBottomValues

Selectthenumberofechogramsamplestoexportinthebottompartoftheechogram.

3TVGType

SpecifytheTVGtypeforthedataintheEchogramdatagram.

Topics

•EK500Datagram;Datagramonpage241

•EK500Datagram;Rangeonpage242

•EK500Datagram;Echogramonpage243

Relatedtopics

•FileOutputdialogboxonpage236

•Echogramdialogboxonpage206

•EthernetOutputdialogboxonpage184

•SingleTargetDetectiondialogboxonpage245

•SurfaceRangedialogboxonpage244

•BottomRangedialogboxonpage243

BottomRangedialogbox

TheBottomRangedialogboxisopenedfromtheBottomRangebuttonintheEK500

Datagramdialogbox.

Purpose

TheBottomRangedialogboxisusedtospecifytheverticaldepthrangeforbottom

relatedechogramdatawhenexportedtoperipheraldevices,orsavedtole.

351718/C

243
