Simrad EK15 User Manual

SimradEK15

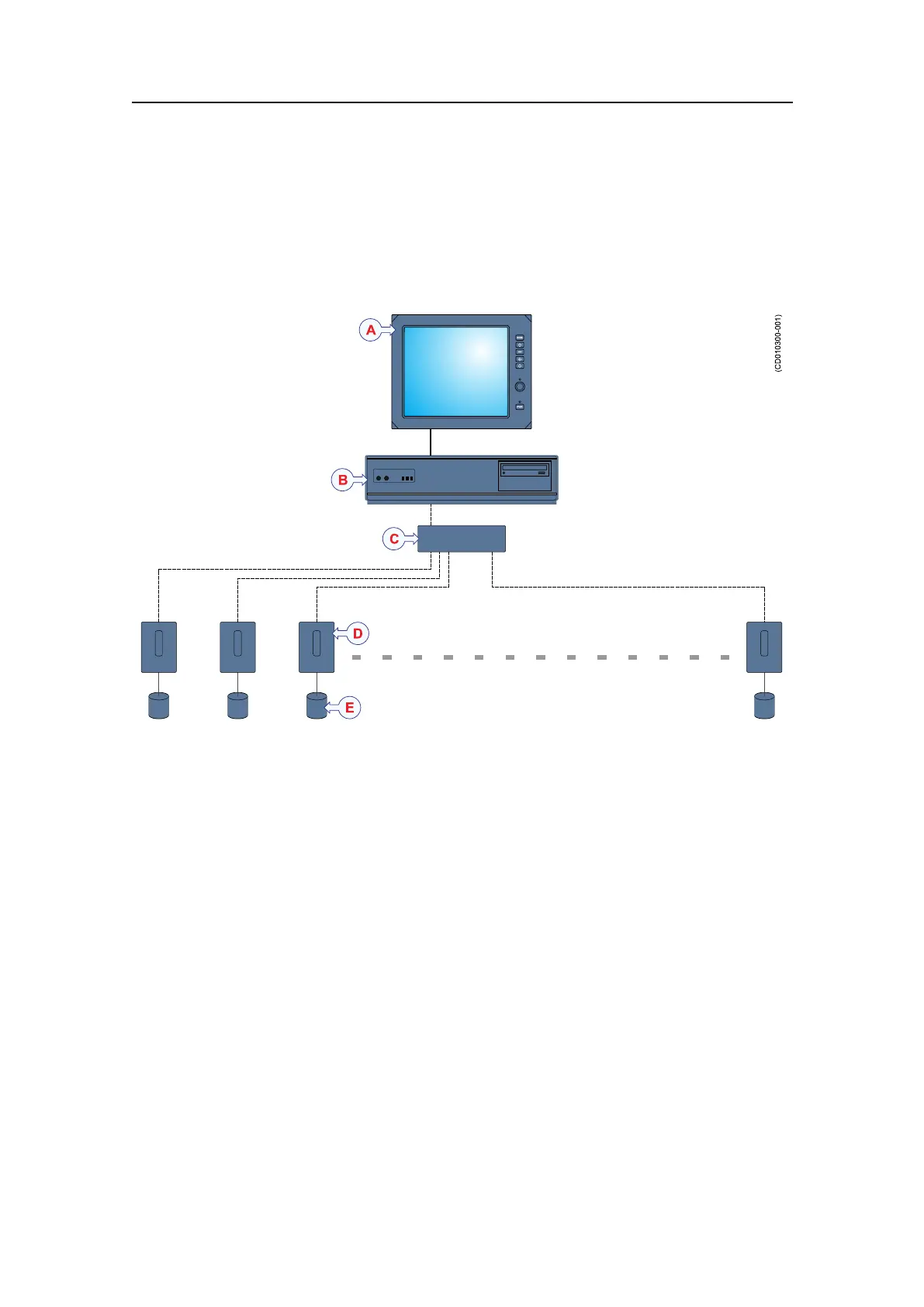

Systemdiagram
AtypicalEK15systemdiagramwithfourtransceiversisprovided.Interfacecapabilities,
powersuppliesandpowercablesarenotshown.
Typicalsystemdiagramwithanumberoftransceivers
PWR
MENU
(CD010300-001)
AColourmonitor
BProcessorUnit(personalcomputer)
CEthernetswitch
DTransceiverUnit
ETransducer
TocontroltheEK15operationyoucanuseastandardcommercialcomputer,evena
laptop.TheEK15applicationsupportsWindows
®
7operatingsystem.Onalarger
systemwithmultipletransceiverswerecommendusingalargedisplayinordertothe
viewallechogramssimultaneously.
Youcanconnectupto15transceiverstothecomputerbymeansofacommercial
Ethernetswitch.Ifyouonlyneedonetransceiver,theswitchisnotrequired.Each
transceiverisprovidedwithadedicatedpowersupplyforACoperation.Theonly
communicationbetweenthetransceiversandtheEthernetswitch(orcomputer)isthe
Ethernetcable.Duetotheamountofinformation,onlyhighqualityEthernetcablescan
beused.Thecablesmaybeeasilyreplacedbycommercialwirelesssystems.
351718/C
17
