Description

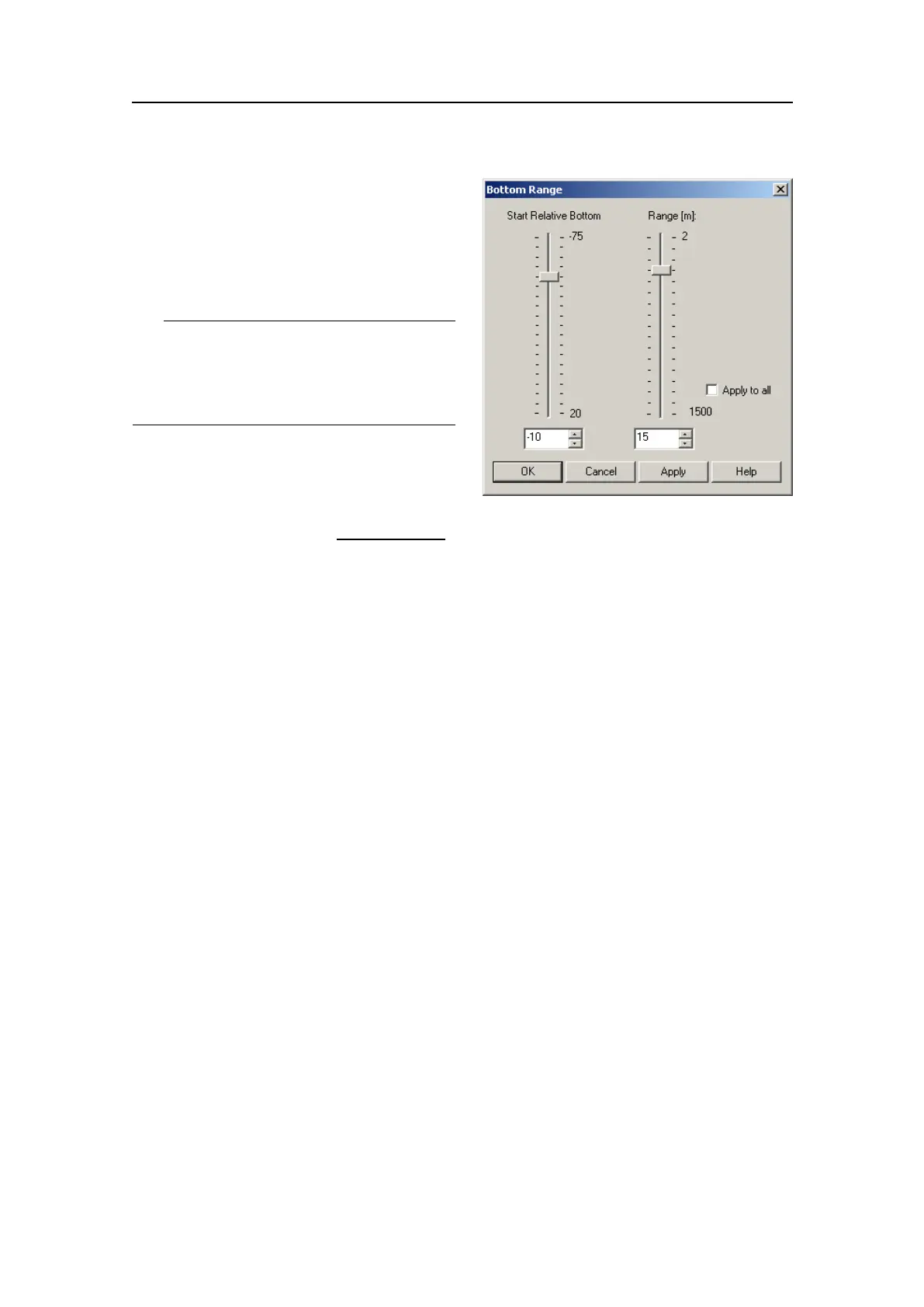

Theparametersdenedinthisdialog
areonlyimplementedforbottomrelated
echogramdatawhenexportedbytheEK15
inEK500datagrams.
Tip
Similarparametersfortheechogramview
aredenedbytheRangeandStartRange
buttonsontheMainmenu.
Parameters
1StartRelativeBottom
Thisparametercontrolsthestartdepth
whentheechogramisbottomrelated
.
ThestartdepthfortheechogramshownonthedisplayisdenedbytheStartRange
parameterontheMainmenu.TheechogramtypeisselectedintheEchogramdialog
box.
2Range
Thisparametercontrolsthedepthrange.
TherangefortheechogramshownonthedisplayisdenedbytheRangeparameters
ontheMainmenu.
3Applytoall
Clickthisboxifyouwishtoimplementyourchangestoalltheechogramspresently
inuseontheEK15.
Relatedtopics
•Rangefunctiononpage144
•StartRangefunctiononpage146
•Echogramdialogboxonpage206
•EK500Datagramdialogboxonpage240
SurfaceRangedialogbox
TheSurfaceRangedialogboxisopenedfromtheSurfaceRangebuttonintheEK500
Datagramdialogbox.
Purpose
TheSurfaceRangedialogboxisusedtospecifytheverticaldepthrangeforsurface
relatedechogramdatawhenexportedtoperipheraldevices,orsavedtole.
