Themenusystem
5NormalOperation
ThepurposeoftheNormalOperationdialogboxistoofferyouanoverviewofthe
currenttransceiverparameters,andtoprovideyouwiththeabilitytochangethem.
→NormalOperationdialogboxonpage154
6Record
TheRecordfunctionallowsyoutorecordtheechograminformation,andsavethis
ontheProcessorUnit’sharddisk.Therawdatalescanlaterbecopiedormovedto
otherrecordablemedia,ortoanothercomputeronthenetwork.
→Recordfunctiononpage157
Displaymenu

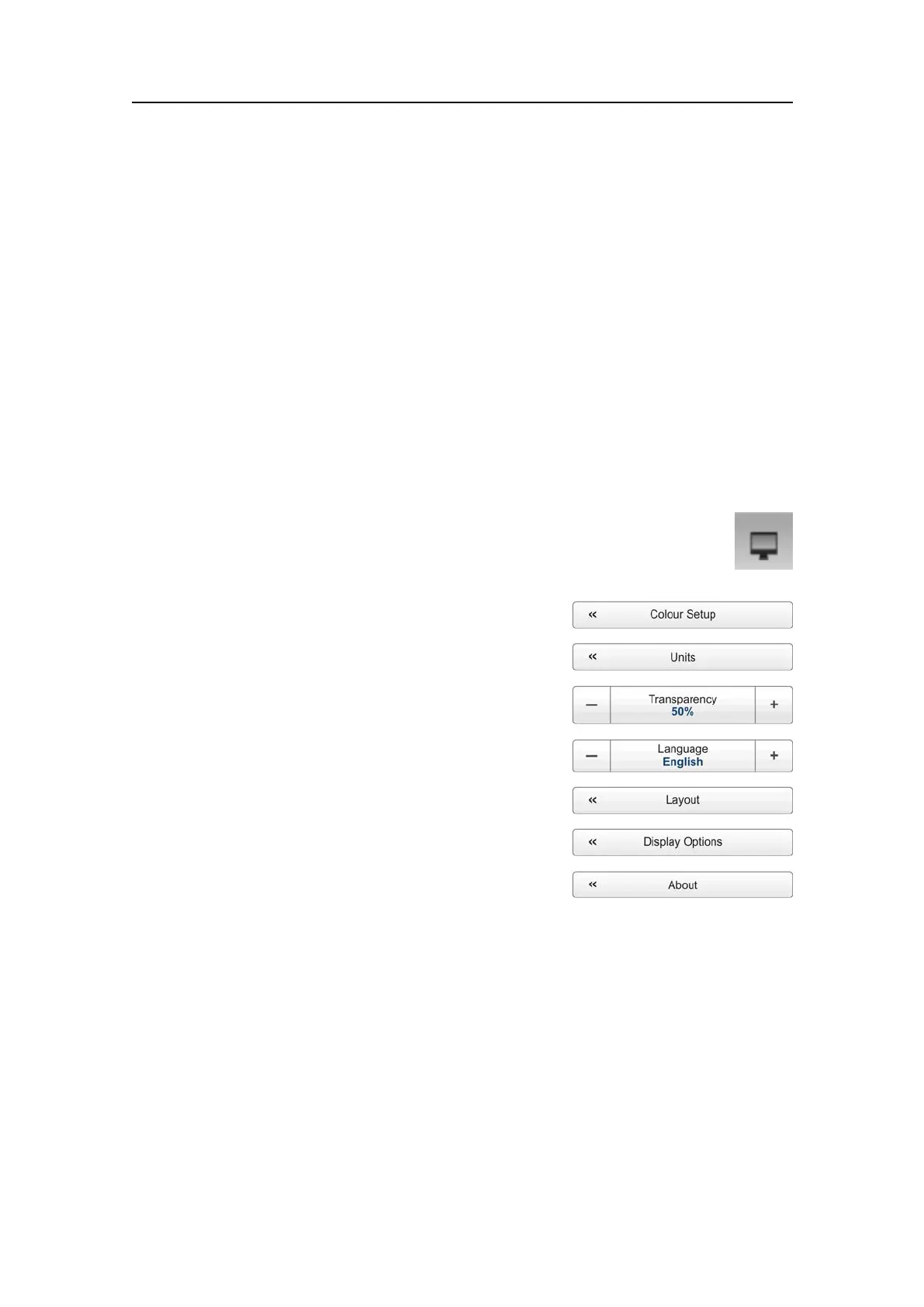

ThefollowingfunctionsandparametersareavailablefromtheDisplaymenu.
ClickonceontheiconundertheMainmenutoopentheDisplaymenu.Click
onemoretimeontheicontoclosethemenu.
1ColourSetup
ThepurposeoftheColourSetupdialogboxisto
controlthepresentationcoloursusedbytheEK15.
→ColourSetupdialogboxonpage160
2Units
ThepurposeoftheUnitsdialogboxistocontrol
theunitsofmeasurementsusedbytheEK15.
→Unitsdialogboxonpage162
3Transparency
ThepurposeoftheTransparencyfunctionisto
adjusthowmuchyouareabletoseethroughthe
informationpanes.
→Transparencyfunctiononpage163
4Language
ThepurposeoftheLanguagefunctionistoselectthelanguagetobeusedonthe
menusandelsewhereinthegraphicaluserinterface.
→Languagefunctiononpage164
5Layout
ThepurposeoftheLayoutdialogboxistodenewhichtransceiverchannelsyou
wishtopresentonthedisplaypresentation.Youcanalsopositiontheechogramsin
relationtoeachother.
→Layoutdialogboxonpage164
351718/C
137
