SimradEK15
Displayorganization
Bydefault,theEK15displaypresentationcoverstheentirescreenview.

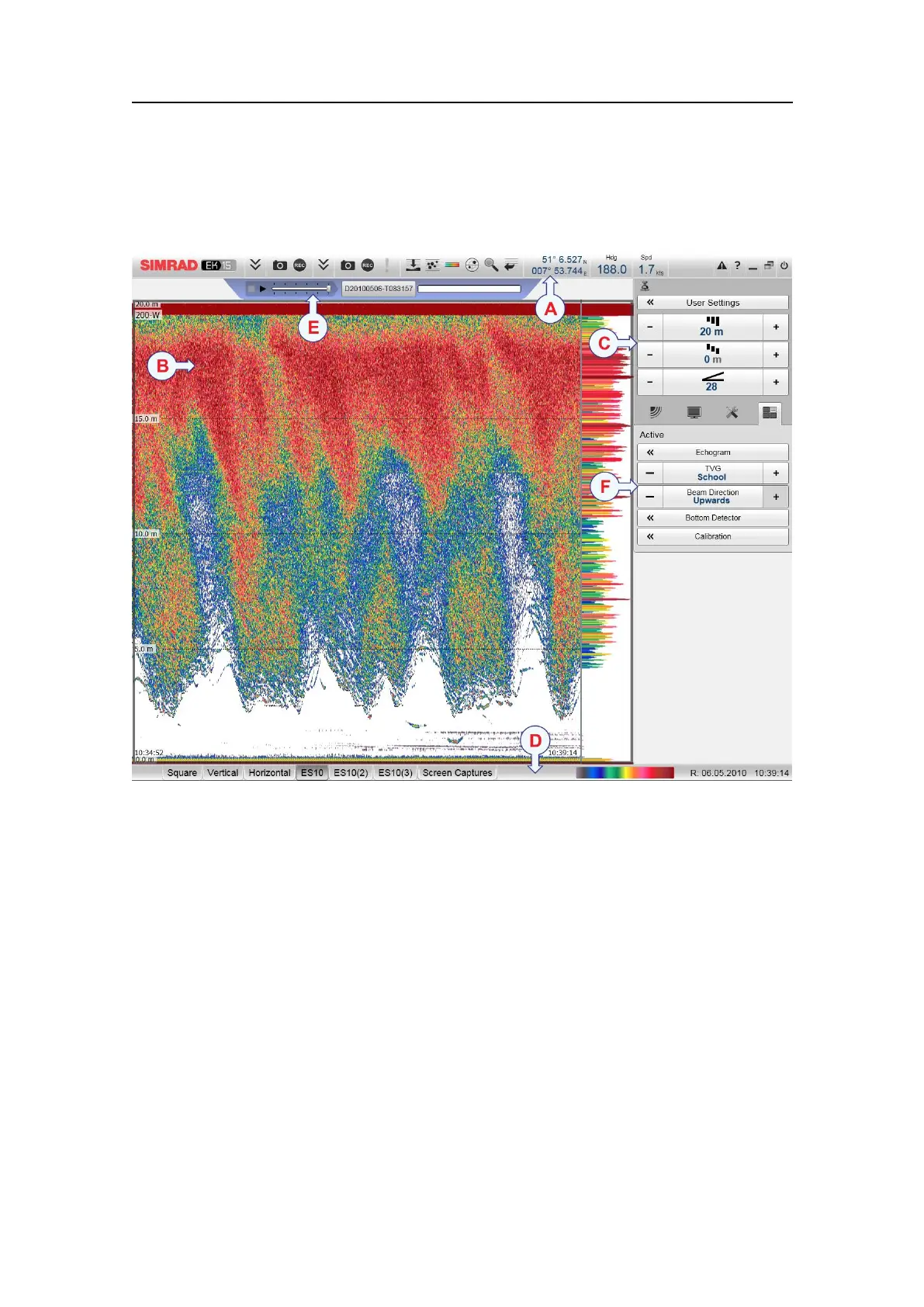

AtypicalEK15displaypresentationisshown.
Notethatthepresentationisshowninmodeupwardswiththetransducerpositionedat
thebottomlookingup.
ATitleBar
TheTitleBaridentiesSimradasthemanufacturer,andthenameoftheproduct
(EK15).Italsoprovidesseveralinformationeldsandbuttons.Theseareusedto
hideorretrievethemenusystemandtheinformationpanes,providenavigational
information,andtoenablebasicsystemfunctions.
BEchogram(s)
TheEchogram(s)takeupthelargestpartoftheEK15displaypresentation.
Bydefault,youwillhavetwoechogramsforeachfrequencychannel
(transceiver/transducercombination);surfacerelatedandbottomrelated.Ifyou
havemorethanonefrequencychannels,theechogramsforeachfrequencycan
bepresentedhorizontallywithoneovertheother,ornexttoeachother.Thisis
controlledbytabsontheStatusbar(D).
104
351718/C
