Simrad EK15 User Manual

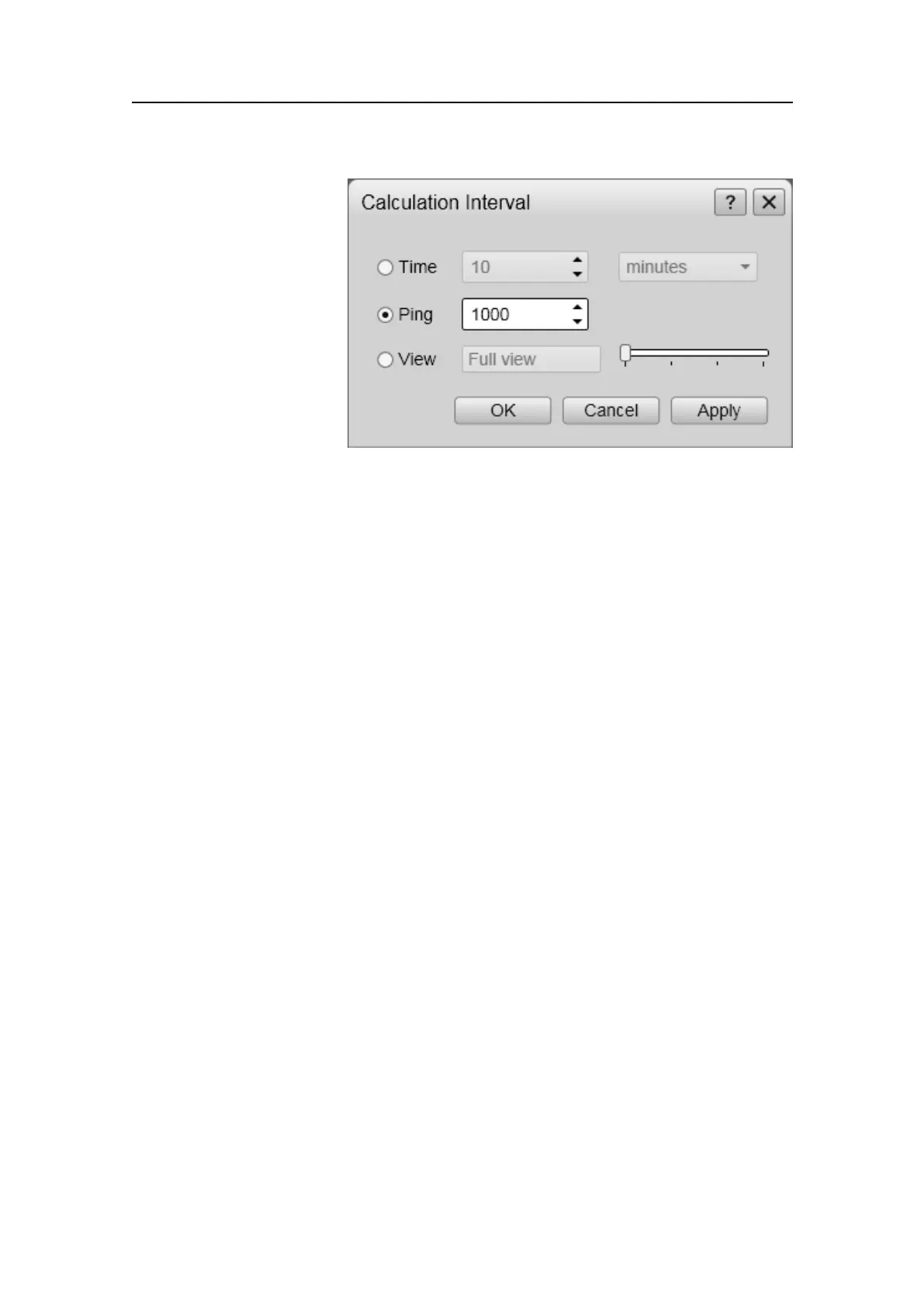

Functionsanddialogboxes
Description
Thebiomassandsize
distributionvaluesare
calculatedbasedonthe
echodatacollectedby
theEK15.
UsingtheCalculation
Intervalfunctionality,
youcanlimitthesource
datausedbythese
calculations.Youcan
thusspecifyifyouwish
tobasethecalculations
ondatacollectedduringagivetimeframe,fromadenednumberofpings,orfromthe
datausedtocreateaportionofthecurrentechogramview.
ThesettingsforCalculationIntervaldoesnotaffectthebiomassline.
Parameters
1Time
Thisoptionallowsyoutocalculatethebiomassandshdistributionbasedonthe
echodatacollectedduringthelastelapsedsecondsorminutes.
SelecttimeintervalintheIntervalbox.Selecttimeunits(seconds,minutesor
hours)intheUnitsbox.
Youcanselectanytimeupto200minutes,butlimitedtothelatest3000pings.
2Ping
Thisoptionallowsyoutocalculatethebiomassandshdistributionbasedonthe
echodatacollectedduringthelastpings.
SelectpingintervalintheIntervalbox.Youcanchooseuptomaximum1000pings.
3View
Thisoptionallowsyoutocalculatethebiomassandshdistributionbasedonthe
echodatausedtocreatethecurrentechogramview.
Youcanchoosetousethefullview,oraportionofit.
Thefollowingoptionsareavailable:
•Fullview
•1/2view
•1/4view
•1/8view
Movethehorizontalselectorsidewaystochoose.
Relatedtopics
•Setupmenu;functionsanddialogsonpage170
•Biomassinformationpaneonpage125
