OnAir 3000 Digital Mixing Console
Operation 5-49
Document generated: 10.10.14
SW V6.0
 MPX ON Switches the conference on/off.
MPX Master Volume Controls the listening level of the MPX master bus.
Note: MPX conferences can be setup very conveniently on the desk surface as well;
refer to chapter 5.5.5.

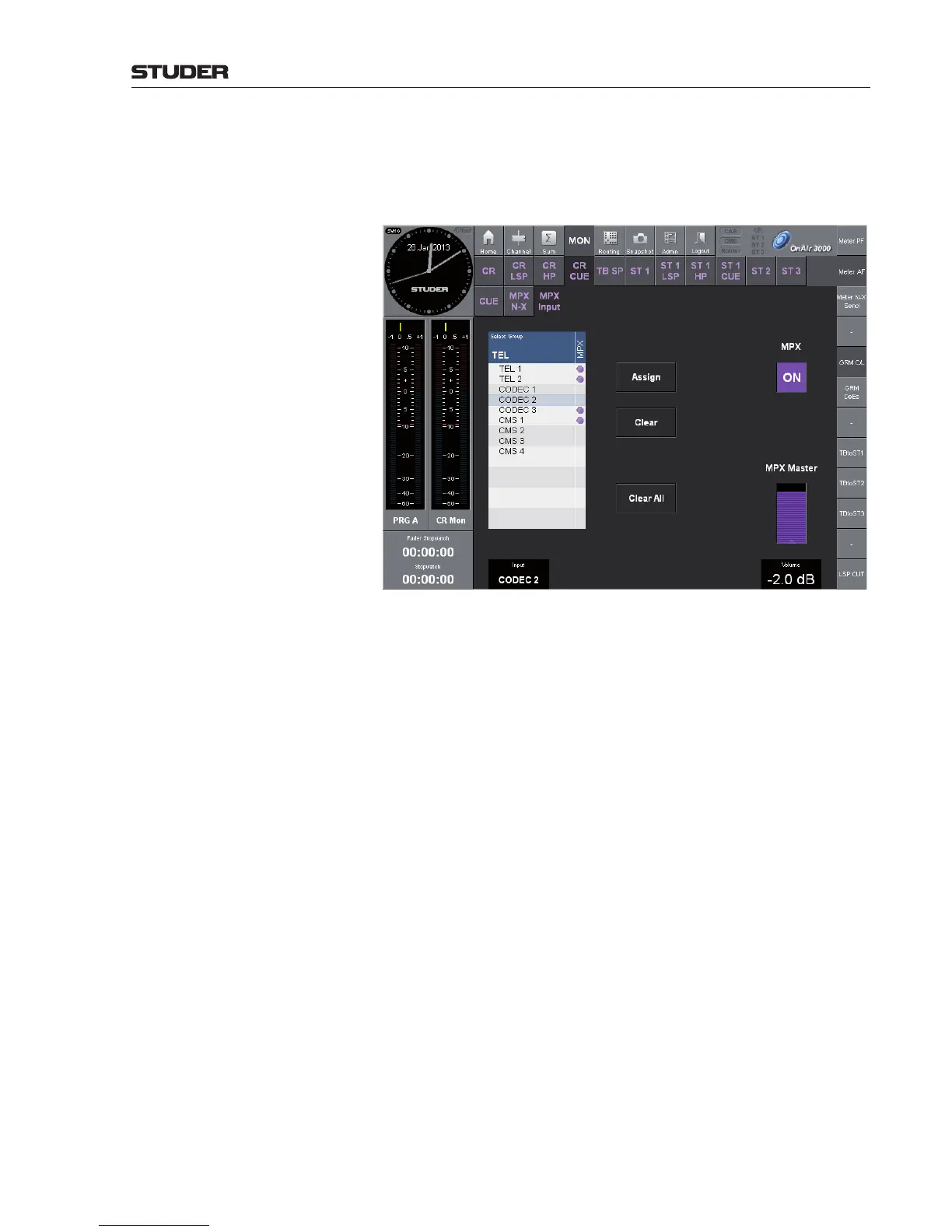

This page allows selecting or deselecting MPX conference members from all
available inputs.
Select Group First, touch the Select Group field. A list of all available input groups pops
up for selection, such as MIC, LINE, or TEL (as shown above). The leftmost
rotary knob is used for selection.
Assign / Clear To assign an input to the MPX conference, touch Assign; to de-assign, touch
Clear.
Clear All to delete all assigned conference members of the current group at once.
The conference can be switched on/off, and the MPX master bus level can
be adjusted on this page as well.
