Studer OnAir 3000 User Manual

OnAir Digital Mixing Consoles
6-80 Conguration
Document generated: 10.10.14
SW V6.0

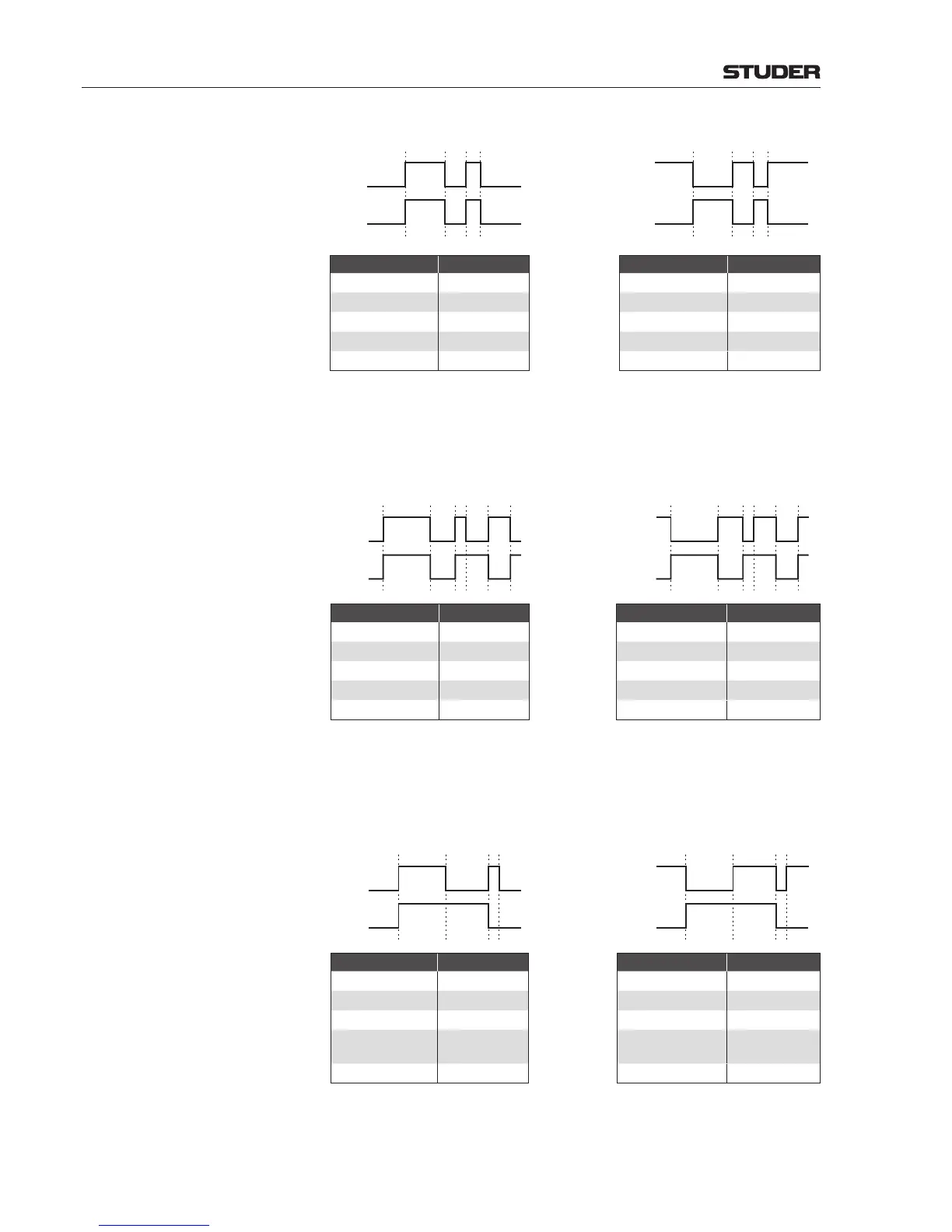

Example 1, Momentary Mode:
Input
Pin
Level
Input
Pin
Level
Pin Attributes Setting Pin Attributes Setting
Activate
On
Activate
On
Time
0 ms
Time
0 ms
Polarity
positive
Polarity
negative
Action
--
Action
--
Triggered Edge
both
Triggered Edge
both
Note: In order to avoid inconsistencies, please be careful when using a GP input in
momentary mode in parallel with a desk key for the same function.
Example 2, Momentary/Latching Mode:
If the input pulse is shorter than the time specified, the level is latched. The
falling (or, in case of negative polarity, the rising) edge is ignored in this case.
Input
Pin
Level
Input
Pin
Level
Pin Attributes Setting Pin Attributes Setting
Activate
On
Activate
On
Time
> 0 ms
Time
> 0 ms
Polarity
positive
Polarity
negative
Action
--
Action
--
Triggered Edge
both
Triggered Edge
both
Note: In order to avoid inconsistencies, please be careful when using a GP input in
momentary/latching mode in parallel with a desk key for the same function.
Example 3, Latching Mode:
To achieve latching mode only, the triggered edge attribute is set to rising or
falling; the time attribute is then ignored.
Input
Pin
Level
Input
Pin
Level
Pin Attributes Setting Pin Attributes Setting
Activate
On
Activate
On
Time
--
Time
--
Polarity
--
Polarity
--
Action
set low and
high
Action
set low and
high
Triggered Edge
rising
Triggered Edge
falling
Note: In order to avoid inconsistencies, it is recommended to use a GP input in
latching mode if a desk key is used in parallel for the same function.
