Auto Setup <Section 4.5>
This function automatically sets the voltage axis, time axis, trigger settings, and other
settings to suit the input signal. This is useful when the characteristics of the input signal
are unknown. However, the auto setup function may not work depending on the input
signal.

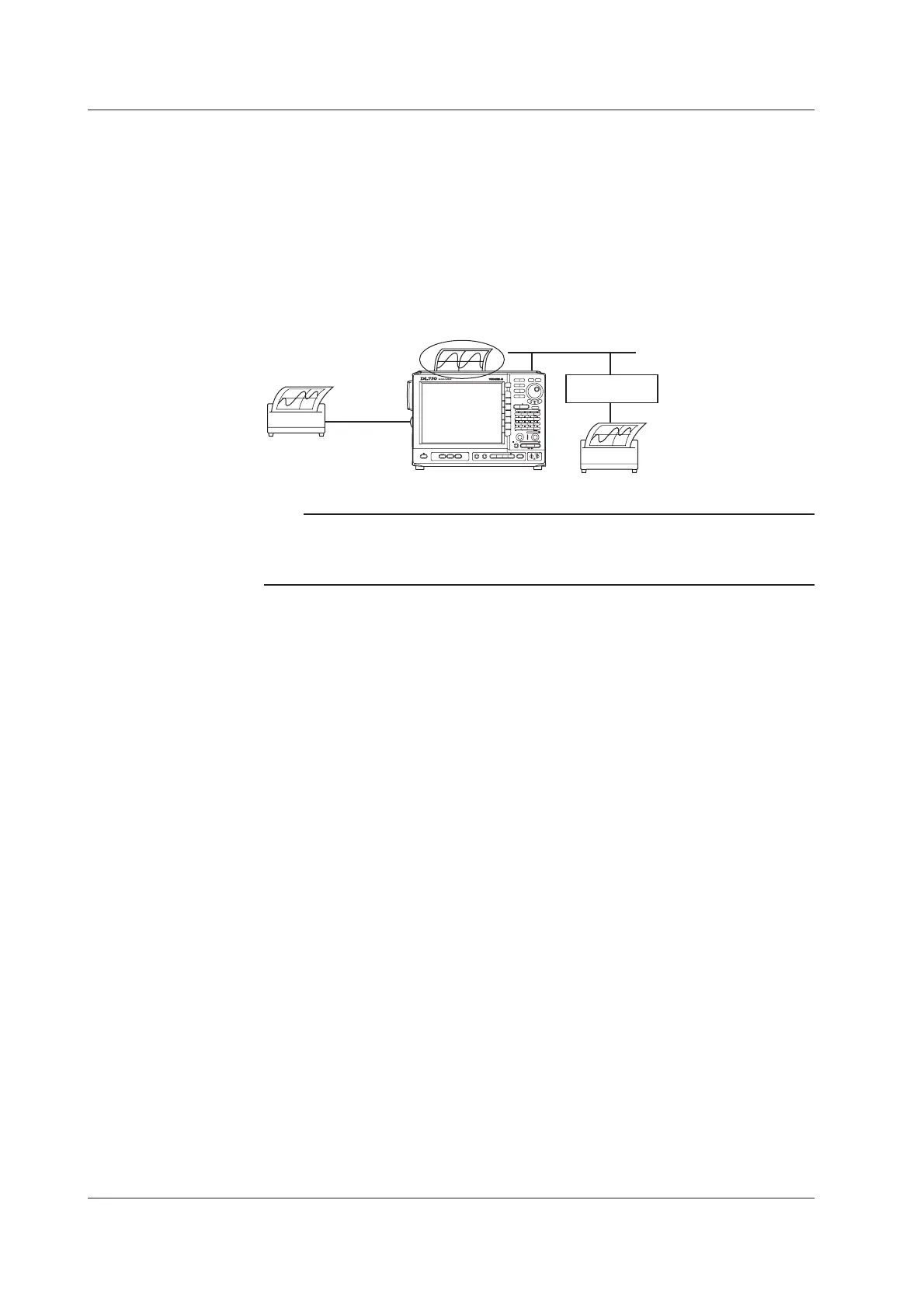

Printing the Screen Image Data <Chapter 12>
The screen image data can be printed on the built-in printer (option), USB printer, or
network printer (when the Ethernet interface option is installed).
USB printer
USB
Built-in printer
Network printer
Printer server
Ethernet
Supporting TCP/IP
(LPR protocol)
DL750/
DL750P
FILE SHIFT HELP MISC NUM KEY
PROTECT
VOICE
MEMO
SAVE
PRINT
ESC
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
SNAPSHOT CLEAR TRACE
MENU MENU
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
Note
There is a function that enables comments to be entered using a keyboard that appears on
the screen or a USB keyboard and displayed on the screen. You can enter a comment
describing the displayed waveform before printing the screen image data. This is useful in
identifying the printed matter.
