2-63
IM 701210-05E
Explanation of Functions
2

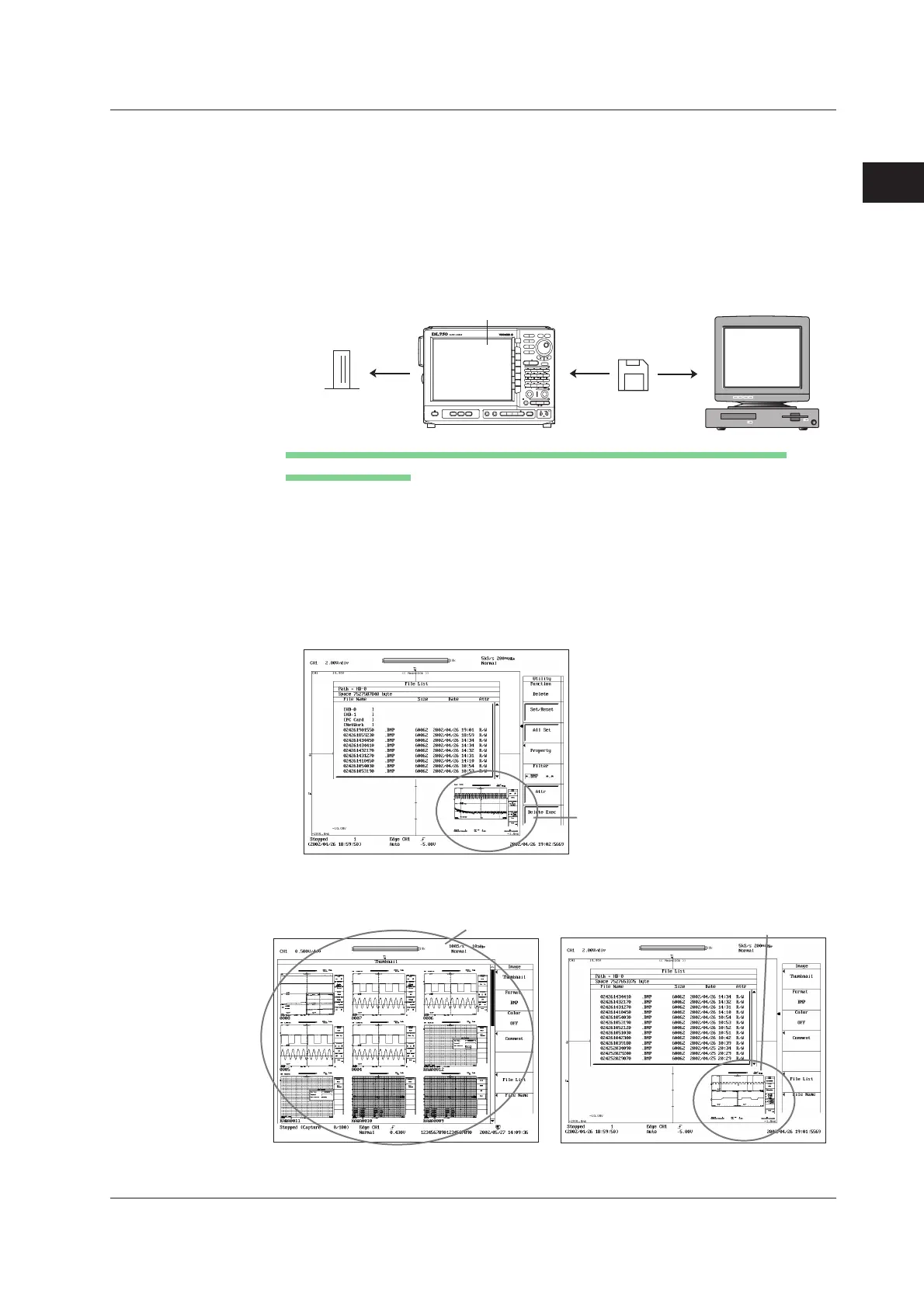

Saving and Loading Various Data on the Storage Medium <Chapter 13>
The DL750/DL750P allows various data to be stored to and loaded from the following
storage media.
• Floppy disk, Zip disk (DL750 only), or PC card (one type is selected at the time of
purchase)
• Internal hard disk (option)
• External USB storage device (MO disk, hard disk, or flash memory)
• External SCSI device (MO disk, Zip disk, etc.)
• Network drive (when the Ethernet interface option is installed)
Floppy disk, Zip disk
(DL750 only), or PC card
MO, Zip drive,
etc.
Internal hard disk (option)
DL750/
DL750P
FILE
SHIFT
HELP
MISC
NUM KEY
PROTECT
VOICE
MEMO
SAVE
PRINT
ESC
MEASURE
CURSOR RESET SELECT
CH
ALL CH
MODE
POSITION
SIMPLE/ENHANCED
ACQ
START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY
MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
SNAPSHOT CLEAR TRACE
MENU MENU
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL
X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A
LOGIC B
EVENT
DSP 3 DSP 4
EXP
PC
Saving the Screen Image Data and Displaying the Thumbnails of the Stored
Screen Image Data
The screen image data can be stored to a specified storage medium. As necessary, a
voice comment can be saved along with the data. The data can be stored in PNG,
JPEG, BMP, and PostScript formats allowing the data to be pasted on a document
created with a DTP application.
In addition, the thumbnails (reduced and simplified image) of the screen image data
saved to the storage medium can be displayed on the DL750/DL750P screen. This
feature is useful for checking the contents of the stored screen image data.
• Thumbnail Display on the FILE Menu
Selecting a file from the File List and pressing SELECT displays
the thumbnail screen of the selected screen image data
Thumbnail screen
• Thumbnail Display on the IMAGE SAVE Menu
Selecting a file from the File List and
pressing SELECT displays the thumbnail
screen of the selected screen image data
Pressing the Thumbnail soft key displays a
thumbnail screen of the screen image data
saved to the specified format.
Thumbnail screen
Thumbnail screen
2.9 Other Useful Functions
