YOKOGAWA DL750 User Manual

3-17
IM 701210-05E
Making Preparations for Measurements
3
• High-Voltage 100 kS/s, 16-Bit Isolation Module (with RMS) (701260)
Maximum input voltage (at a frequency of 1 kHz or less)
• Combined with the isolated probe 700929 (10:1)
1
1000 V (DC+ACpeak)
• Safety cable (1:1) (combined with 701901+701954)
5
or direct input
9
850 V (DC+ACpeak)
Maximum allowable common mode voltage (at a frequency of 1 kHz or
less)
• Combined with the isolated probe 700929 (10:1)
1000 Vrms (CAT II) on the H side
3
, 400 Vrms (CAT II)
4
on the L side
• Safety cable (1:1) (combined with 701901+701954)
700 Vrms (CAT II) on the H side
6
, 400 Vrms (CAT II) on the L side
7
• Direct input
10
42 V (DC+ACpeak) (CAT I and CAT II, 30 Vrms)
• 701275 (ACCL/VOLT)
Maximum input voltage (at a frequency of 1 kHz or less)
• Combined with the passive probe (701940) (10:1)
11
or direct input
9
42 V (DC+ACpeak)
Maximum allowable common mode voltage (at a frequency of 1 kHz or
less)
• Combined with the passive probe (701940) (10:1)
12
or direct input
10
30 Vrms (CAT I and CAT II)
• 701280 (FREQ)
Maximum input voltage (at a frequency of 1 kHz or less)
• Combined with the isolated probe 700929 (10:1)
1
420 V(DC+ACpeak)
• Safety cable (1:1) (combined with 701901+701954)
5
or direct input
9
42 V (DC+ACpeak)
Maximum allowable common mode voltage (at a frequency of 1 kHz or
less)
• Combined with the isolated probe 700929 (10:1)
2
300 Vrms (CAT I and CAT II)
• Safety cable (1:1) (combined with 701901+701954)
8
or direct input
10
30 Vrms (CAT I and CAT II)

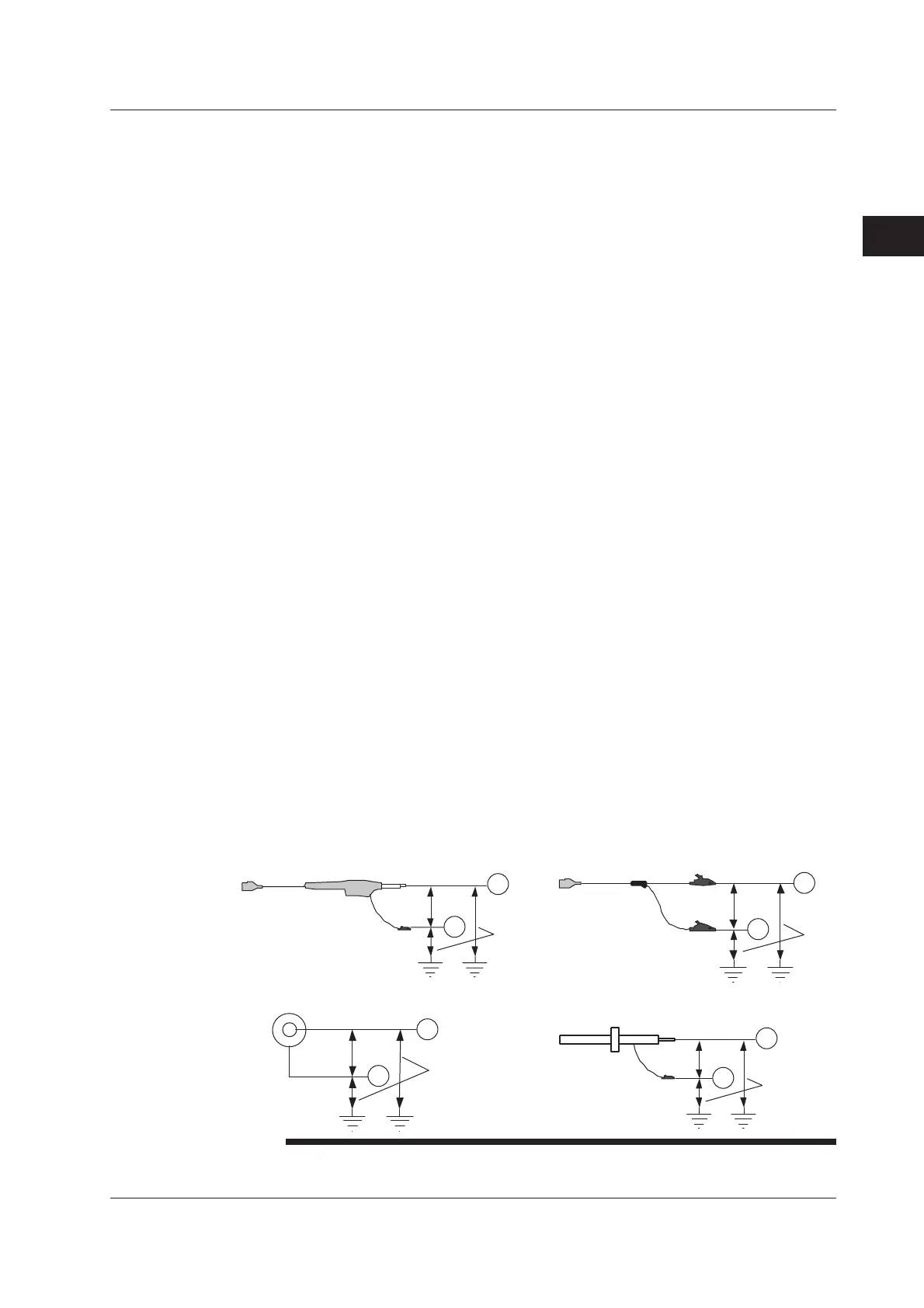

H
L
Combined with the 700929
1.
2.
700929
H
L
701901
701954
5.
Combined with the 701901+701954
H
L
Direct input
(cable not complying with the safety standard)
9.
10.
BNC
8.
3.
4.
6.
7.
Combined with the 10:1 Passive Probe (701940)
H
L
11.
12.
3.6 Connecting Probes
