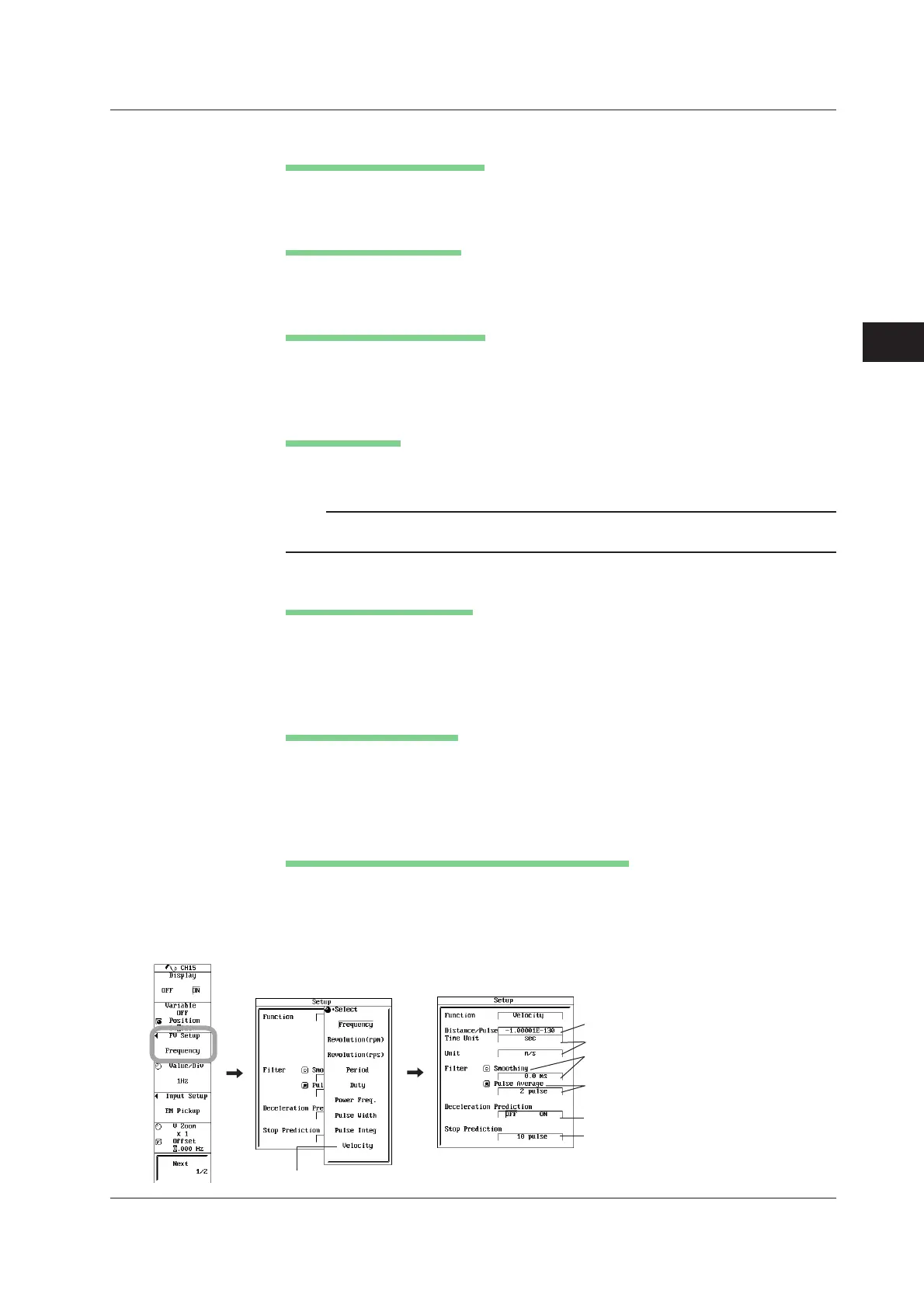

Horizontal and Vertical Axes
5
When Measuring the Velocity
Setting the Measurement Item
4. Press the FV Setup soft key. A setup dialog box opens.
5. Use the jog shuttle and SELECT to set Function to Velocity.
Setting the Distance/Pulse
6. Use the jog shuttle and SELECT to set Distance/Pulse in the range of –
9.9999E–30 to 9.9999E+30.
Setting the Time Unit and Unit
7. Use the jog shuttle and SELECT to set Time Unit to hour, min, or sec.
8. Use the jog shuttle and SELECT to select Unit and enter the unit to be
displayed on the screen according to the procedure given in section 4.2.
Setting Value/Div
9. Turn the V/DIV knob to set the Value/Div value. You can also set Value/Div by
pressing the Value/Div soft key and turning the jog shuttle.
Note
The unit for Value/Div and offset are synchronized to the unit of the measurement mode
selected in steps 4 and 5. For the procedure of setting the offset value, see section 5.10.
Carry out steps 10 to 15 below as necessary.
Setting the Smoothing Filter
10. To enable the smoothing filter, use the jog shuttle and SELECT to set Filter to
Smoothing.
11. Use the jog shuttle and SELECT to set the moving average order of smoothing
in the range of 0.0 to 1000.0 ms.
Setting the Pulse Average
12. To enable the pulse average, use the jog shuttle and SELECT to select Pulse
Average.
13. Use the jog shuttle and SELECT to set the number of times to perform pulse
average in the range of 1 to 4096.
Setting Deceleration Prediction and Stop Prediction
14. To enable deceleration prediction, use the jog shuttle and SELECT to turn
Deceleration Prediction ON.
15. To enable stop prediction, use the jog shuttle and SELECT to set Stop
Prediction in the range of 1.5 to 10 pulses.
Smoothing filter
Moving average or
der of smoothing
Set Function to Velocity
Pulse average
Number of times to perform pulse averag
e
Distance per pulse
Time unit and unit
Set the stop prediction
Set the deceleration prediction
