5-48
IM 701210-05E

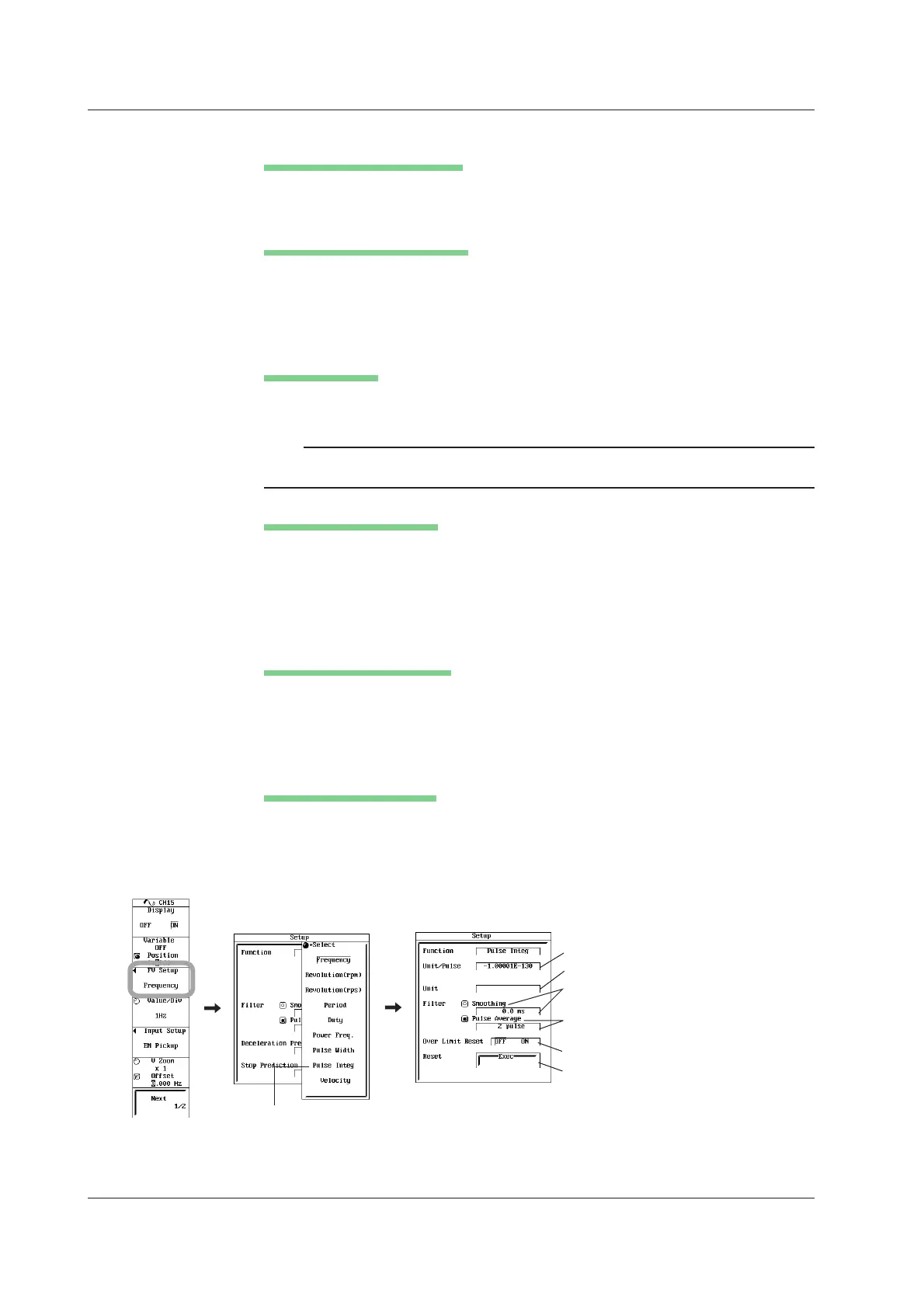

When Measuring the Pulse Integration
Setting the Measurement Item
4. Press the FV Setup soft key. A setup dialog box opens.
5. Use the jog shuttle and SELECT to set Function to Pulse Integ.
Setting the Unit/Pulse and Unit
6. Use the jog shuttle and SELECT to set Unit/Pulse in the range of –9.9999E–30
to 9.9999E+30.
7. As necessary, use the jog shuttle and SELECT to select Unit and enter the unit
according to the procedure given in section 4.2.
Setting Value/Div
8. Turn the V/DIV knob to set the Value/Div value. You can also set Value/Div by
pressing the Value/Div soft key and turning the jog shuttle.
Note
The unit for Value/Div and offset are synchronized to the unit of the measurement mode
selected in steps 4 and 5. For the procedure of setting the offset value, see section 5.10.
Resetting the Pulse Count
9. To manually reset the pulse count, use the jog shuttle and SELECT to select
Exec to the right of Reset. The pulse count is reset.
10. To reset the pulse count automatically when the range is exceeded, use the jog
shuttle and SELECT to set Over Limit Reset to ON.
Carry out steps 11 to 14 below as necessary.
Setting the Smoothing Filter
11. To enable the smoothing filter, use the jog shuttle and SELECT to set Filter to
Smoothing.
12. Use the jog shuttle and SELECT to set the moving average order of smoothing
in the range of 0.0 to 1000.0 ms.
Setting the Pulse Average
13. To enable the pulse average, use the jog shuttle and SELECT to select Pulse
Average.
14. Use the jog shuttle and SELECT to set the number of times to perform pulse
average in the range of 1 to 4096.
Smoothing filter
Moving average order of smoothing
Manually reset the pulse count
Over limit reset
Set Function to Pulse Integ
Pulse average
Number of times to perform pulse average
Unit/pulse
Unit
5.19 Setting the Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency,
Pulse Width, Pulse Integration, and Velocity) Measurement
To Next Page
