5-47
IM 701210-05E
Horizontal and Vertical Axes
5
When Measuring the Pulse Width
Setting the Measurement Item

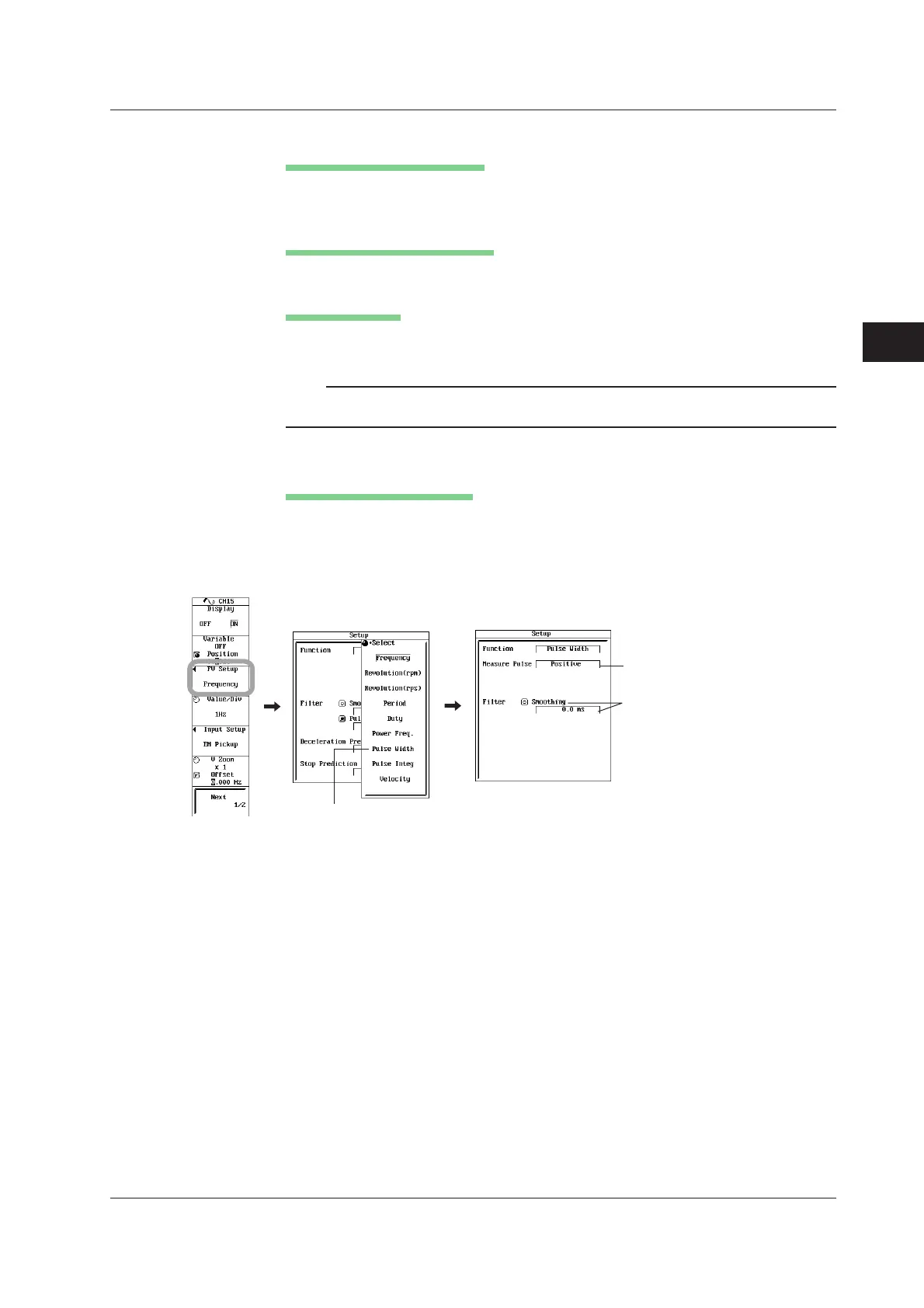

4. Press the FV Setup soft key. A setup dialog box opens.
5. Use the jog shuttle and SELECT to set Function to Pulse Width.
Setting the Measurement Pulse
6. Use the jog shuttle and SELECT to set Measure Pulse to Positive or Negative.
Setting Value/Div
7. Turn the V/DIV knob to set the Value/Div value. You can also set Value/Div by
pressing the Value/Div soft key and turning the jog shuttle.
Note
The unit for Value/Div and offset are synchronized to the unit of the measurement mode
selected in steps 4 and 5. For the procedure of setting the offset value, see section 5.10.
Carry out steps 8 and 9 below as necessary.
Setting the Smoothing Filter
8. To enable the smoothing filter, use the jog shuttle and SELECT to set Filter to
Smoothing.
9. Use the jog shuttle and SELECT to set the moving average order of smoothing
in the range of 0.0 to 1000.0 ms.
Smoothing filter
Moving average order of smoothing
Set Function to Pulse Width
Measurement pulse
5.19 Setting the Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency,
Pulse Width, Pulse Integration, and Velocity) Measurement
To Next Page
