6-31
IM 701210-05E
Triggering
6
Setting the Bit Patterns of LOGIC A and LOGIC B
(Only When Using Logic Input Channels)

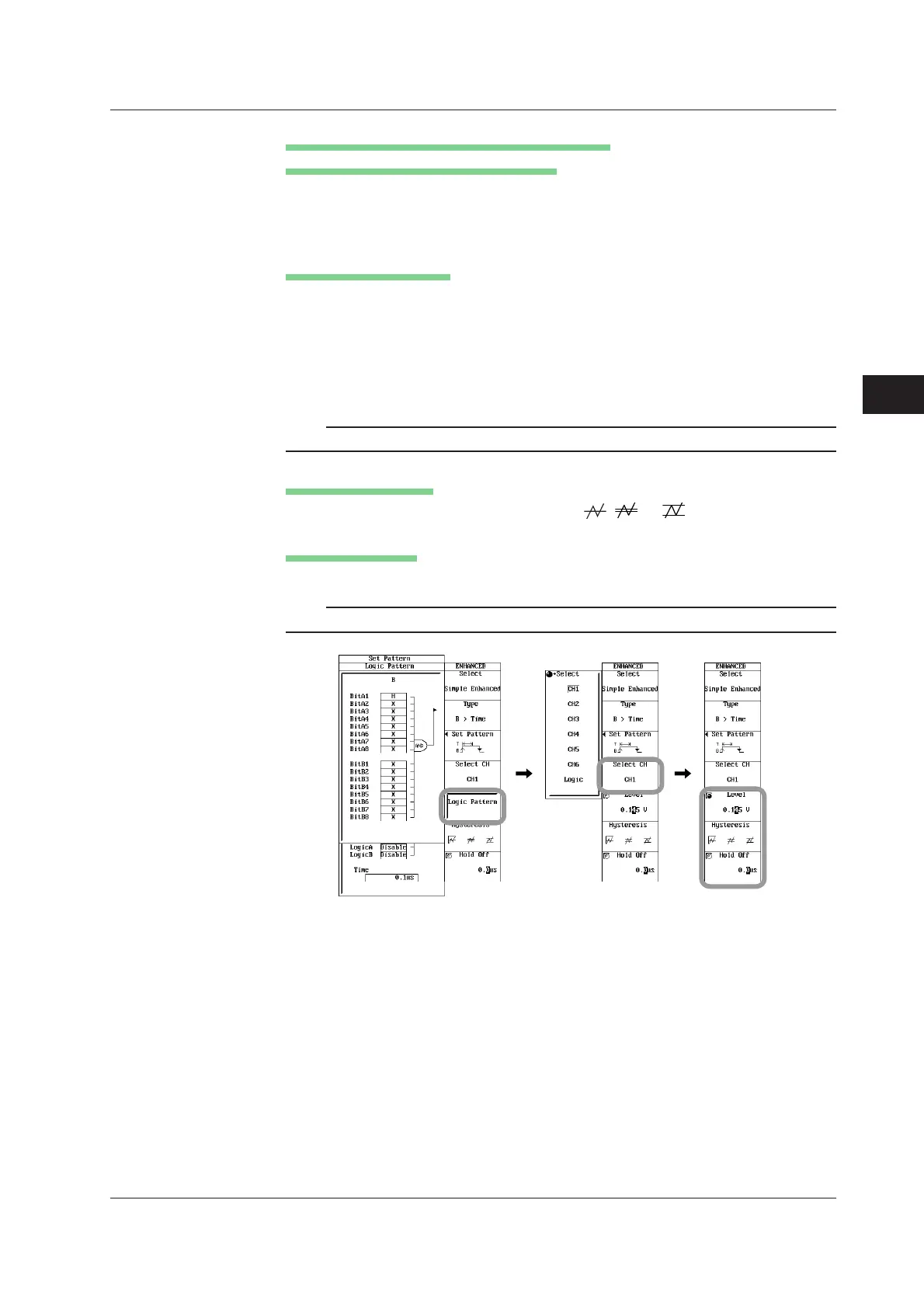

8. Press the Logic Pattern soft key. The Logic Pattern setup dialog box appears.
9. Use the jog shuttle and SELECT to select the pattern of each bit (Bit A1 to Bit
A8 and Bit B1 to Bit B8) from H, L, and X.
Setting the Trigger Level
10. Press the Select CH soft key. The channel selection menu appears.
11. Use the jog shuttle and SELECT to set the channel to assign the trigger level.
12. Press the Level soft key.
13. Use the jog shuttle and SELECT to set the trigger level.
14. Likewise, set the trigger level for all channels for which patterns were assigned
in step 6.
Note
The trigger level setting applies to both simple and enhanced triggers.
Setting the Hysteresis
15. Press the Hysteresis soft key to select
, , or .
Setting the Hold Off
16. Set the hold off time according to the procedures given in section 6.4.
Note
The pattern settings of condition B apply to all trigger types.
6.14 Setting the B > Time, B < Time, or B TimeOut (Pulse Width) Trigger (ENHANCED)
