YOKOGAWA DL750 User Manual

6-32
IM 701210-05E
Explanation
The following three pulse width triggers are available.
B > Time: A trigger is activated when condition B goes false after holding true for the
preset pulse width.
B < Time: A trigger is activated when condition B goes false after holding true for less
than the preset pulse width.
B Time Out: A trigger is activated when condition B has held true for the preset pulse
width.

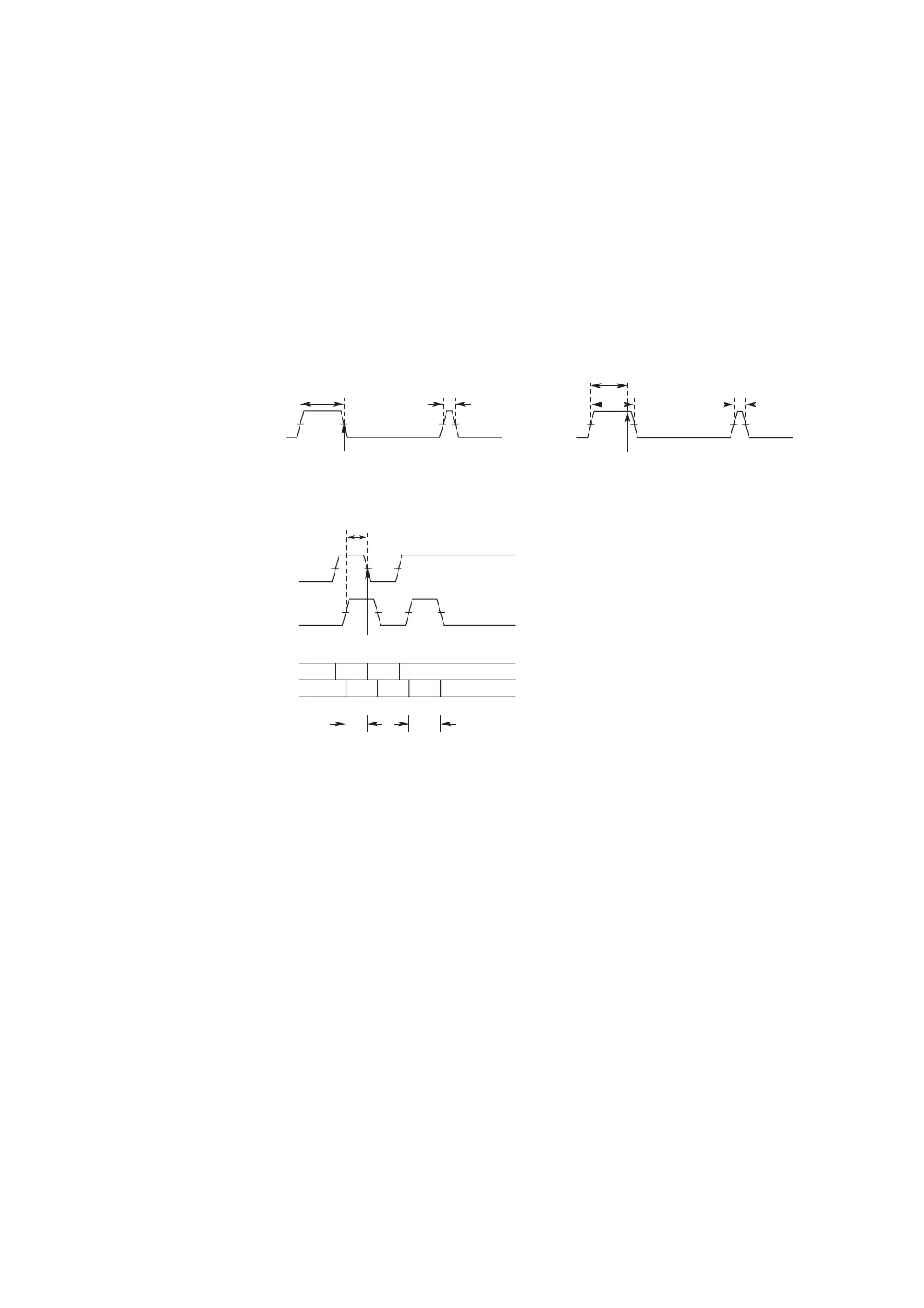

The point where the trigger occurs differs between B > Time and B Time Out as shown in
the figure below.
When B > Time, CH1 = H, and Time = 4 µs
Trigger
5
µ s
1 µ s
CH1
Trigger
5
µ s
1 µ s
CH1
4 µ s
When B Time Out, CH1 = H, and Time = 4 µs
B < Time Setup Example
When B < Time, condition B: CH1 = H, CH2 = H, and Time = 4 µs
Trigger
LHL
HHLLL
H
CH1
CH2
CH1
CH2
3 µ s 5 µ s
3 µ s
6.14 Setting the B > Time, B < Time, or B TimeOut (Pulse Width) Trigger (ENHANCED)
