8-13
IM 701210-05E
Display
8

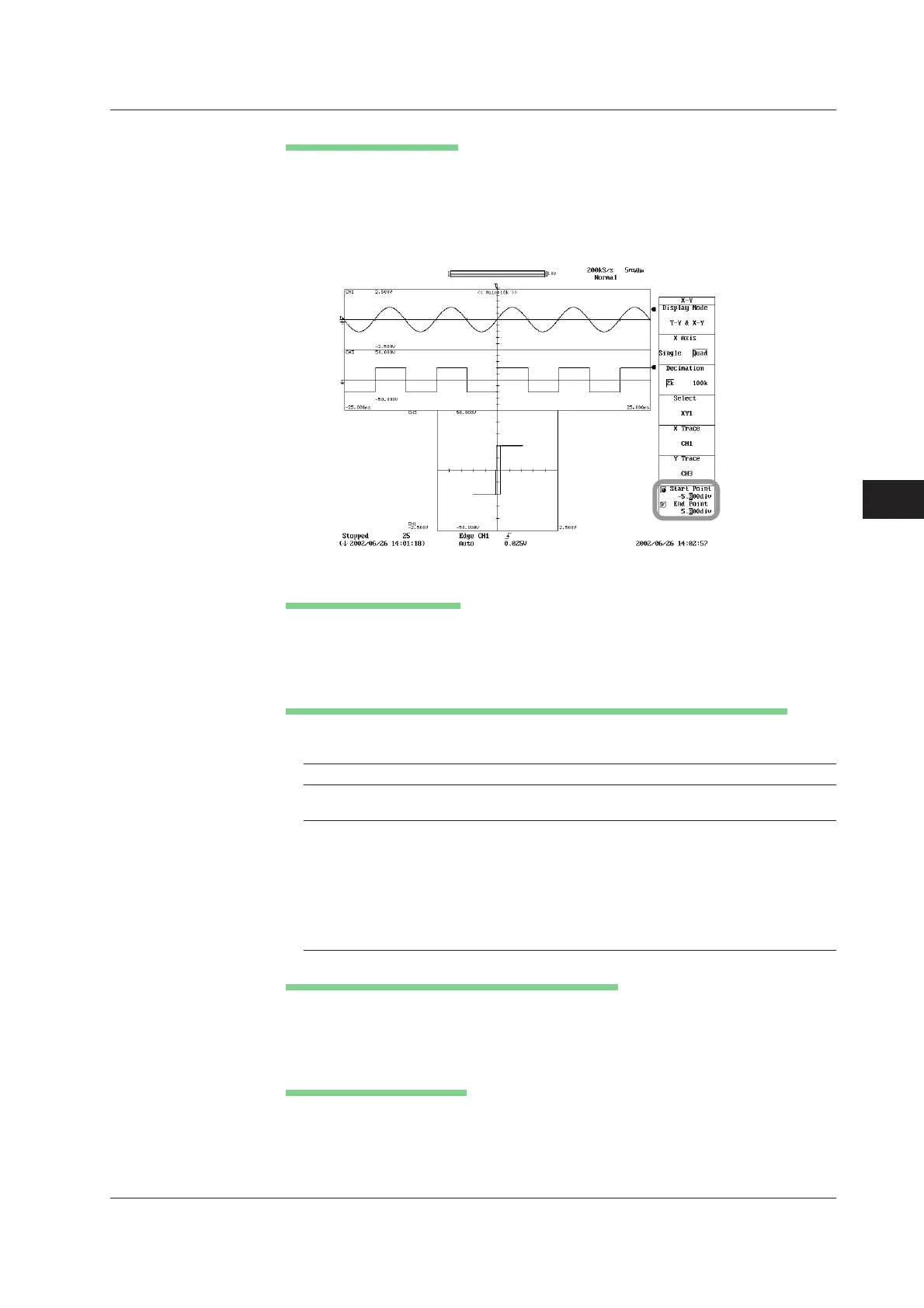

Setting the Display Range
11. Press the Start Point/End Point soft key to set the jog shuttle control to Start
Point.
12. Turn the jog shuttle to set the start point of the X-Y waveform display.
13. Likewise, press the Start Point/End Point soft key to set the jog shuttle control
to End Point and set the end point of the X-Y waveform display.
Explanation
Selecting the X Axis Mode
Single: The X axis is set to a common trace, and the Y axis displays all the waveforms
whose display are turned ON.
Quad: The X axis trace and Y axis trace are set individually for XY1 to XY4.
Assigning X (Horizontal) and Y (Vertical) Axes (When X Axis Is Set to Quad)
The channels that are assigned to the X and Y axes depending on the X-axis mode are
as follows:
X Axis Mode X-Y Waveform X Axis Y Axis
Single CH1 to CH16, DSP1 to DSP6 All channels that are turned
Math1 to Math8 ON
Quad XY1 CH1 to CH8, DSP1 to DSP3 CH1 to CH8, DSP1 to DSP3
Math1 to Math4 Math1 to Math4
XY2 CH1 to CH8, DSP1to DSP3 CH9 to CH16, DSP4 to DSP6
Math1 to Math4 Math5 to Math8
XY3 CH9 to CH16, DSP4 to DSP6 CH1 to CH8, DSP1 to DSP3
Math5 to Math8 Math1 to Math4
XY4 CH9 to CH16, DSP4 to DSP6 CH9 to CH16, DSP4 to DSP6
Math1 to Math4 Math5 to Math8
Number of X-Y Waveforms That Can Be Displayed
The number of X-Y waveforms that can be displayed is 16 for Single and 4 for Quad.
The display of each X-Y waveform is turned ON/OFF by turning the Y axis trace display
ON/OFF.
Selecting the Display Mode
You can select from the following three display modes.
T-Y&X-Y: The top window displays T-Y (normal) waveforms. The bottom window
displays X-Y waveforms.
X-Y: Displays only X-Y waveforms.
T-Y: Displays only T-Y waveforms.
8.6 Displaying X-Y Waveforms
To Next Page
