1.1 Top Panel, Front Panel, Right Side Panel, and Left Side Panel
Input Module

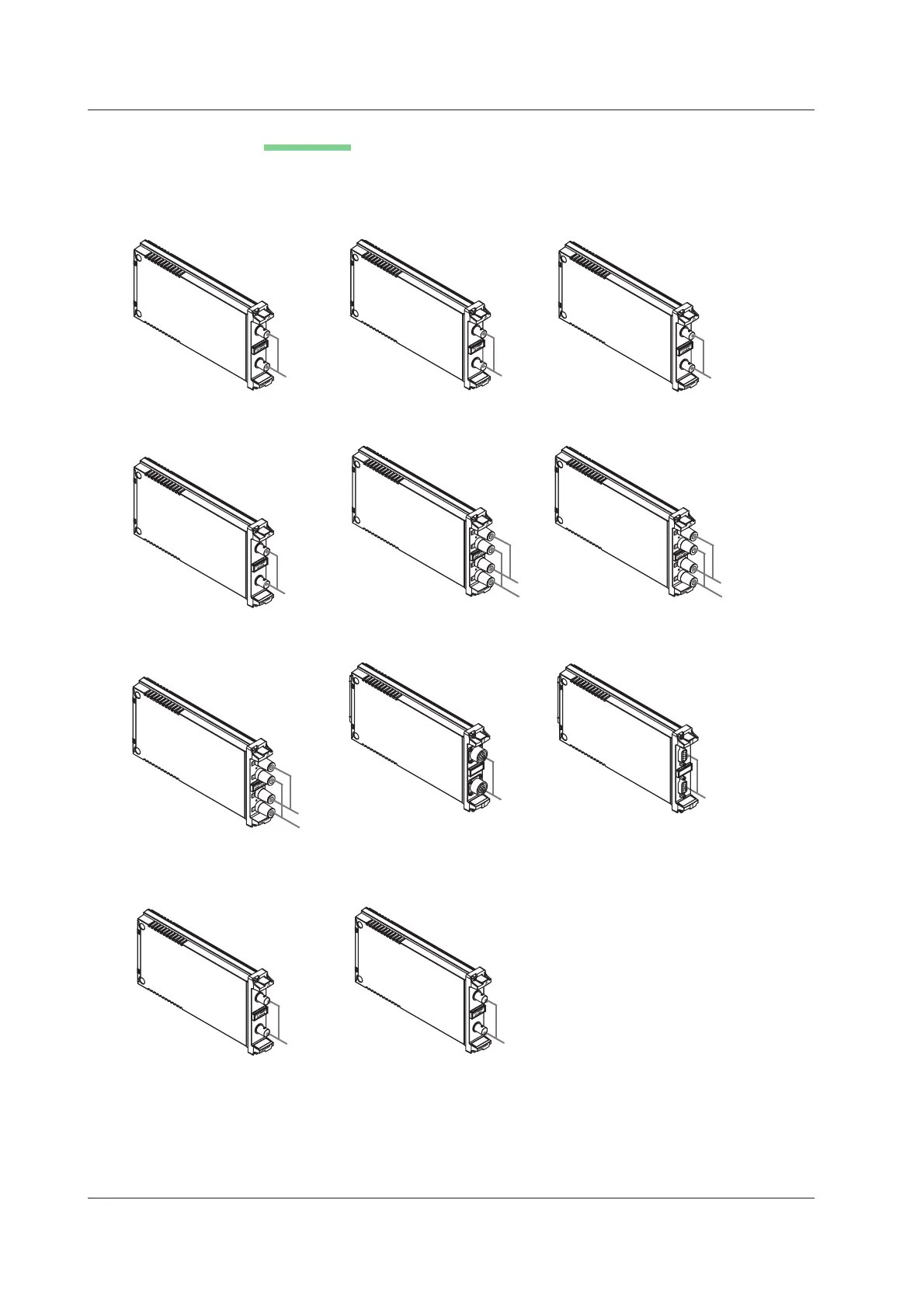

The following 11 input modules are available.
High-Speed 10 MS/s, 12-Bit
Isolation Module
HS10M12 (model: 701250)
701251 High-Speed High-
Resolution 1 MS/s, 16-Bit
Isolation Module
HS1M16 (model: 701251)
Temperature, High Precision
Voltage Isolation Module
TEMP/HPV (model: 701265)
input terminal
(2ch)
input terminal
(2ch)
H input terminal
L input terminal
(2ch)
High-Speed 10 MS/s, 12-Bit
Non-Isolation Module
NONISO_10M12 (model: 701255)
High-Voltage 100kS/s, 16-Bit
Isolation Module (with RMS)
HV (with RMS) (model: 701260)
input terminal
(2ch)
input terminal
(2ch)
Strain Module (NDIS)
STRAIN_NDIS (model: 701270)
Strain Module (DSUB, Shunt-Cal)
STRAIN_DSUB (model: 701271)
input terminal
(2ch)
input terminal
(2ch)
Acceleration/Voltage Module
(with AAF)
ACCL/VOLT (model: 701275)
Frequency Module
FREQ (model: 701280)
input terminal
(2ch)
input terminal
(2ch)
Universal (Voltage/Temp.) Module (with AAF)
UNIVERSAL (AAF) (model: 701262)
H input terminal
L input terminal
(2ch)
Universal (Voltage/Temp.) Module
UNIVERSAL (model: 701261)
H input terminal
L input terminal
(2ch)
