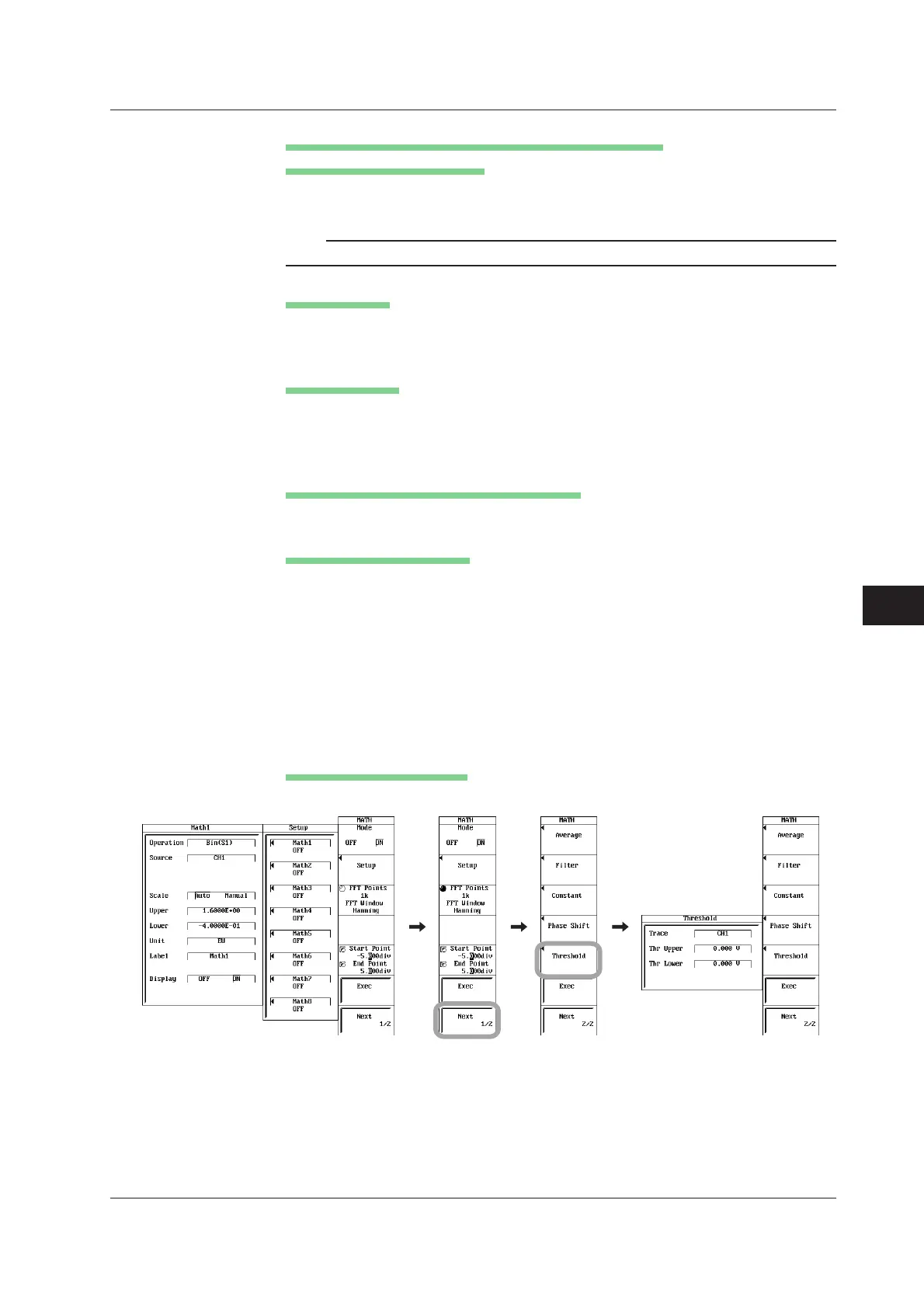

YOKOGAWA DL750 User Manual

10-5
IM 701210-06E
Waveform Computation
10
Setting the Upper and Lower Limits of Waveform Display
(When Scale Is Set to Manual)
11. Use the jog shuttle and SELECT to set Upper.
12. Likewise, set Lower.
Note
If you select Auto, you cannot set Upper and Lower.
Setting the Unit
13. Use the jog shuttle and SELECT to set the Unit using up to four characters
according to the procedure given in section 4.2.
Setting the Label
14. Use the jog shuttle and SELECT to enter the Label according to the procedure
given in section 4.2. For a description of the Label display, see section 8.10,
“Setting Waveform Labels.”
Turning ON/OFF the Math Waveform Display
15. Use the jog shuttle and SELECT to set Display to ON or OFF.
Setting the Threshold Level
16. On models with the user-defined computation option, press the Next 1/2 soft
key.
17. Press the Threshold soft key.
18. Use the jog shuttle and SELECT to set the trace (channel on which to assign
the threshold level).
19. Use the jog shuttle and SELECT to set Thr Upper.
20. Likewise, set Thr Lower.
As necessary, set Math2 to Math8 in a similar fashion.
Executing the Computation
21. Press the Exec soft key.
*1
*2
*3
*4
Above is the menu when the user-defined computation option is installed.
The menu on models without the option is as follows:*1: Phase Shift, *2: Threshold, *3: Start Point/End Point, *4: Exec
10.2 Binary Computation
