10-6

IM 701210-06E

Explanation

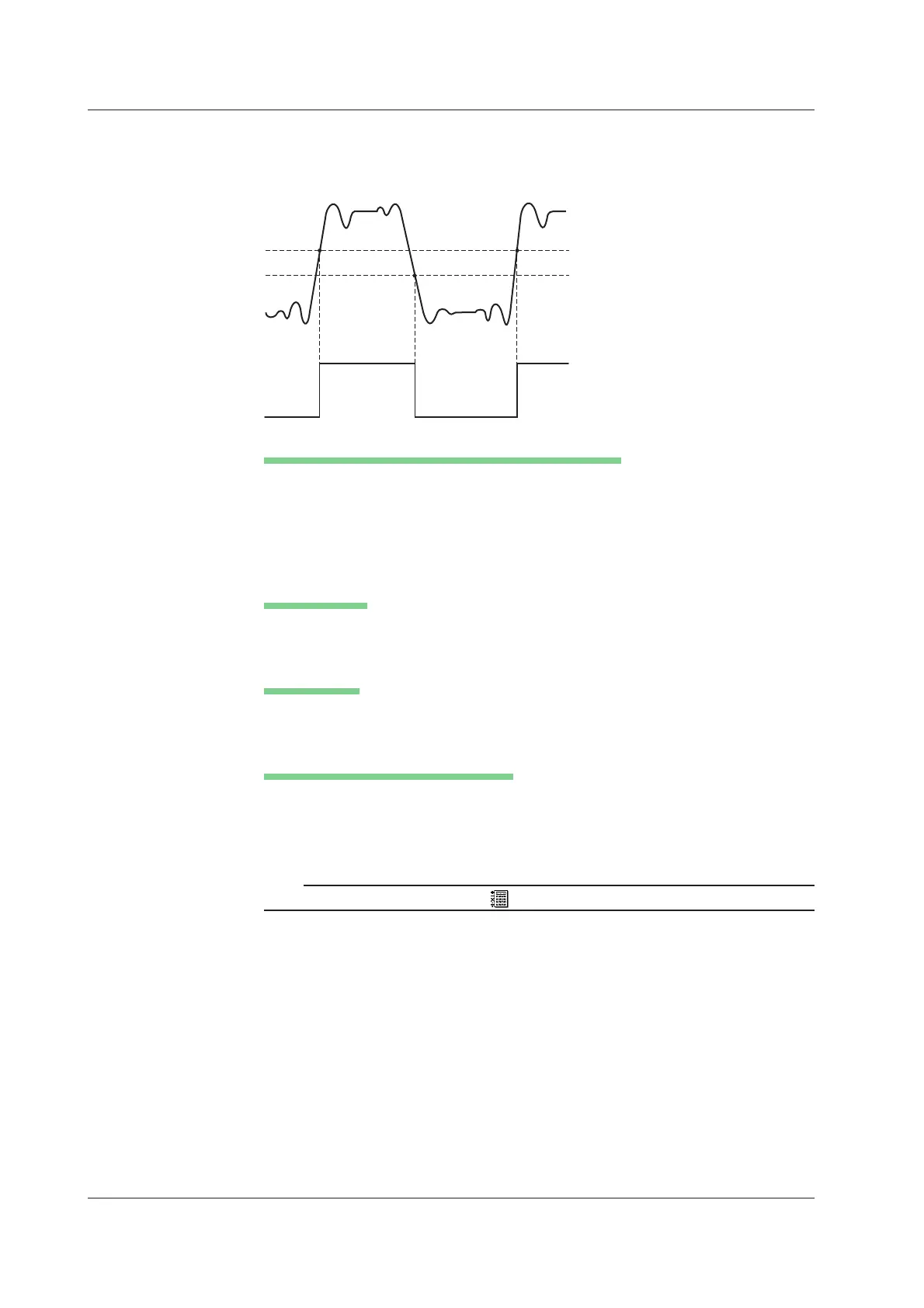

This function converts CH1 to CH16 or Math1 to Math7 waveform to a digital signal (1s

and 0s) according to the specified threshold level.

Upper

Lower

Setting the Computation Range: Start Point/End Point

By default, the measurement range is ±5 divisions of the display frame on the time axis.

You can limit this range.

The concept of the computation range is analogous to the concept of the selectable

range of cursor display position in cursor measurement.

For details, see section 11.5, “Selectable Range of Cursor Position.”

Setting the Unit

Unit can be set arbitrarily using up to four characters. The specified characters are

applied to the scale values.

Linear Scaling

When performing computation on a channel that has linear scaling set, the computation

is performed on the scaled value.

Notes When Performing Computation

Computation is not performed again when you change Start Point or End Point while

computation is stopped. Be sure to press the Exec soft key to perform the computation

again. Otherwise, the waveform will not be displayed correctly when the screen is

redrawn.

Note

While computation is in execution, is displayed at the upper left corner of the screen.

10.2 Binary Computation
