YOKOGAWA DL750 User Manual

11-13
IM 701210-06E
Waveform Analysis/Search
11
Auto Scroll
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT

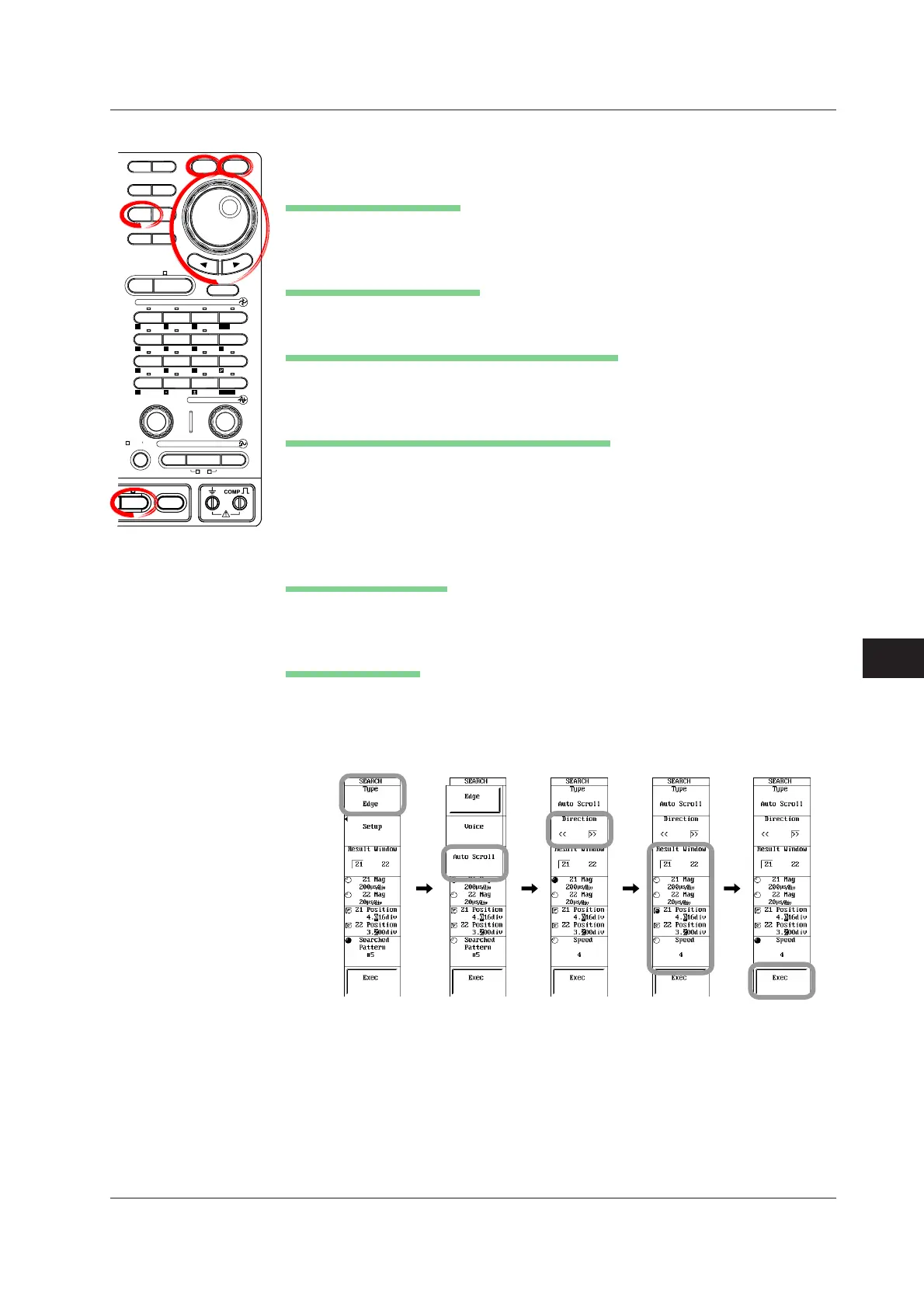

1. Press SHIFT+ZOOM.
Selecting the Search Type
2. Press the Type soft key. The search type selection menu appears.
3. Press the Auto Scroll soft key.
Selecting the Scroll Direction
4. Press the Direction soft key to set the scroll direction.
Setting the Display Position of the Search Results
(When Mode in the ZOOM Menu Is Set to Z1&Z2 or Main&Z1&Z2)
5. Press the Result Window soft key to select Z1 or Z2.
Changing the Magnification and Display Position
6. As with the zoomed waveform, you can change the zoom rate of Z1 and Z2 by
pressing the Z1 Mag/Z2 Mag soft key and turning the jog shuttle.
7. As with the zoomed waveform, you can move the section that is being zoomed
on Z1 or Z2 window by pressing the Z1 Position/Z2 Position soft key and
turning the jog shuttle.
Setting the Scroll Speed
8. Press the Speed soft key and turn the jog shuttle to set the scroll speed in the
range from 1 to 10.
Executing the Scroll
9. Press the Exec soft key. The zoom window automatically moves and the zoom
position changes. When the scroll operation is in progress, the Exec soft key
changes to the Abort soft key. Press the Abort soft key to abort the scroll
operation.
11.4 Search Data Using Search and Zoom Function
