YOKOGAWA DL750 User Manual

11-23
IM 701210-06E
Waveform Analysis/Search
11
For H (Horizontal) Cursors (When Displaying the X-Y Waveform)
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT

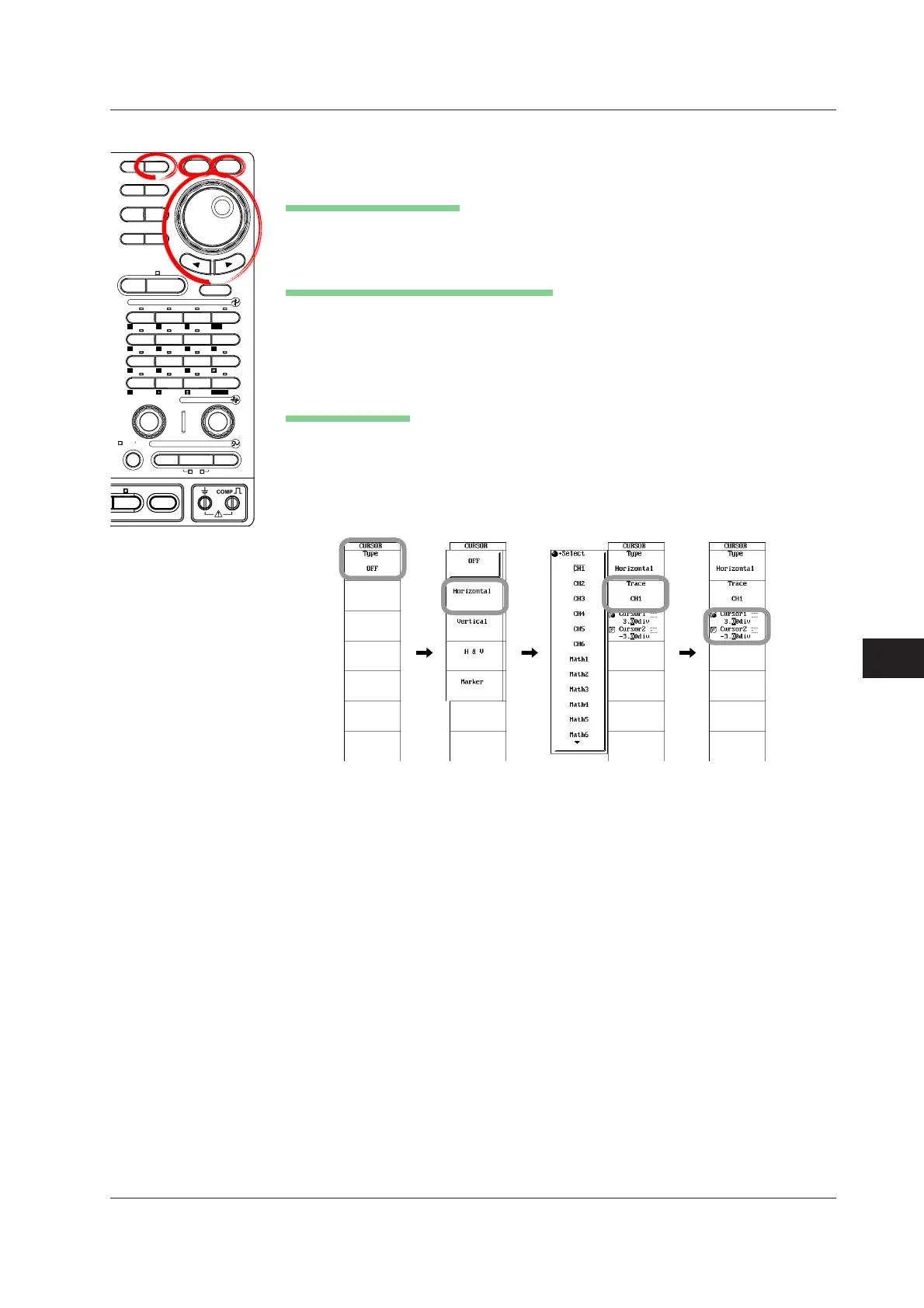

1. Press CURSOR.
Selecting the Cursor Type
2. Press the Type soft key. The cursor type selection menu appears.
3. Press the Horizontal soft key.
Selecting the Waveform to Be Measured
4. Press the Trace soft key.
5. If X Axis of the X-Y menu is set to Single, use the jog shuttle and SELECT to
select the trace. If X Axis is set to Quad, press the soft key corresponding to the
X-Y waveform (XY1 to XY4) to select the waveform to be measured.
Moving the Cursor
6. Press the H Cursor1/H Cursor2 soft key to set the jog shuttle control to
Cursor1.
7. Turn the jog shuttle to move Cursor1.
8. Likewise, move Cursor2. If the jog shuttle control is set to both H Cursor1 and H
Cursor2, both cursors are moved.
DSP1 to DSP6 are optional.
11.5 Measuring Waveforms Using Cursors
