Cursor Jump (for V Cursor, Marker Cursor, and Angle Cursor: Only When Not
Displaying the X-Y Waveform)
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
1. Follow steps 1-3 on the previous pages to set the Type to Vertical, Marker, or
Degree.
Setting Jumps

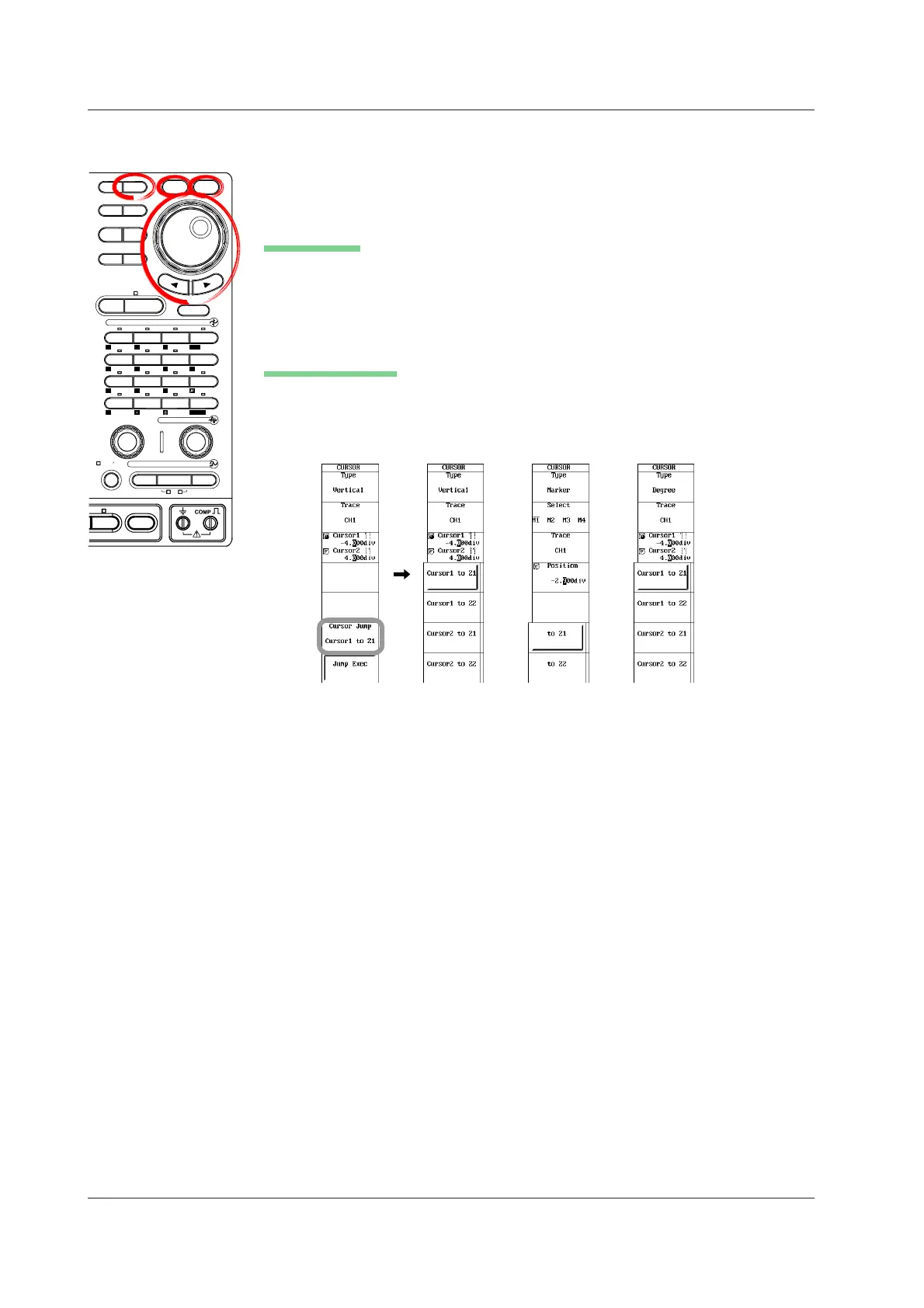

2. Press the Cursor Jump soft key. A menu for selecting the cursor to be jumped
and the jump destination appears.
3. Press the soft key corresponding to the type of jump to select the desired cursor
and the destination.
Executing the Jump
4. Press the Jump Exec soft key. The cursor moves to the jump destination
screen.
V cursor
Marker
cursor
Angle
cursor
11.5 Measuring Waveforms Using Cursors
