For H&V Cursors (When Not Displaying the X-Y Waveform)
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT

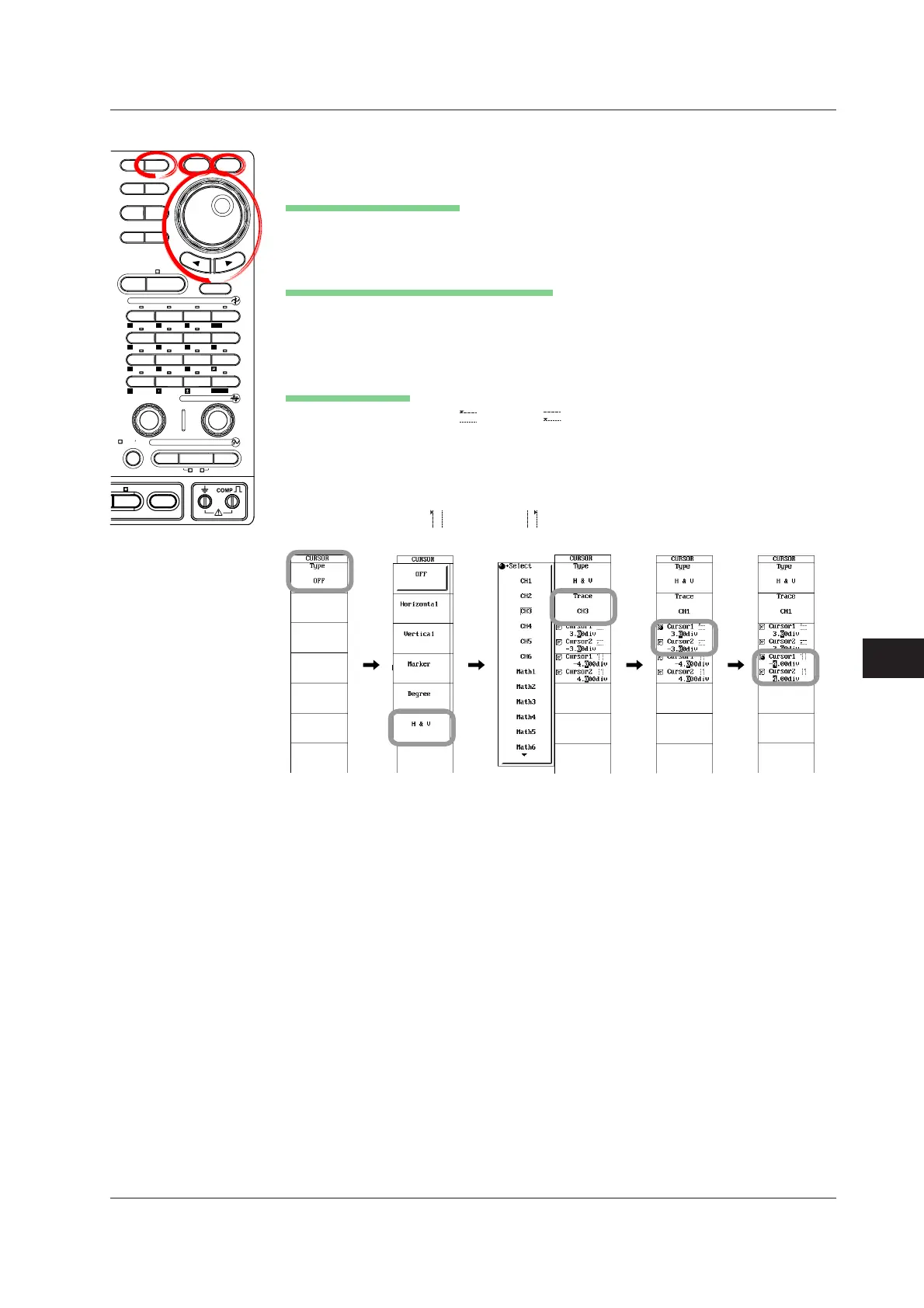

1. Press CURSOR.
Selecting the Cursor Type
2. Press the Type soft key. The cursor type selection menu appears.
3. Press the H&V soft key.
Selecting the Waveform to Be Measured
4. Press the Trace soft key.
5. Press the soft key corresponding to the desired waveform to select the
waveform to be measured.
Moving the Cursor
6. Press the Cursor1
/Cursor2 soft key to set the jog shuttle control to
Cursor1.
7. Turn the jog shuttle to move Cursor1.
8. Likewise, move Cursor2. If the jog shuttle control is set to both Cursor1 and
Cursor2, both cursors are moved.
9. Move Cursor1
and Cursor2 by carrying out steps similar to steps 6 to 8.
DSP1 to DSP6 are optional
11.5 Measuring Waveforms Using Cursors
