YOKOGAWA DL750 User Manual

11-20
IM 701210-06E

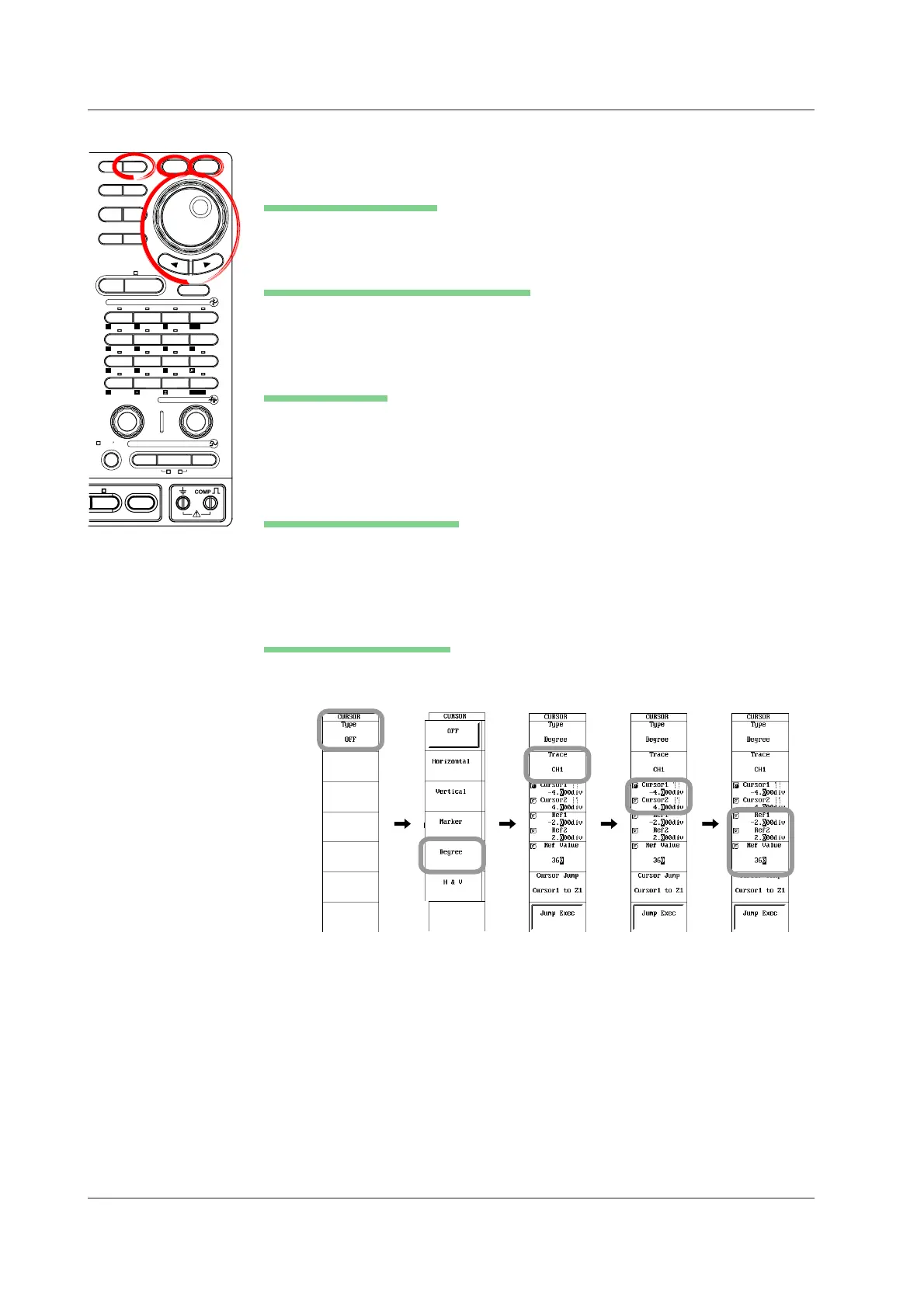

For Angle (Degree) Cursors (When Not Displaying the X-Y Waveform)
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT
1. Press CURSOR.
Selecting the Cursor Type
2. Press the Type soft key. The cursor type selection menu appears.
3. Press the Degree soft key.
Selecting the Waveform to Be Measured
4. Press the Trace soft key. The trace selection menu appears.
5. Press the soft key corresponding to the desired waveform to select the
waveform to be measured.
Moving the Cursor
6. Press the Cursor1/Cursor2 soft key to set the jog shuttle control to Cursor1.
7. Turn the jog shuttle to move Cursor1.
8. Likewise, move Cursor2. If the jog shuttle control is set to both Cursor1 and
Cursor2, both cursors are moved.
Moving the Reference Cursor
9. Press the Ref1/Ref2 soft key to set the jog shuttle control to Ref1.
10. Turn the jog shuttle to move Ref1.
11. Likewise, move Ref2. If the jog shuttle control is set to both Ref1 and Ref2, both
cursors are moved.
Setting the Reference Angle
12. Press the Ref Value soft key.
13. Turn the jog shuttle to set the reference angle in the range of 1 to 720.
11.5 Measuring Waveforms Using Cursors
