2.2 Setting the Horizontal and Vertical Axes

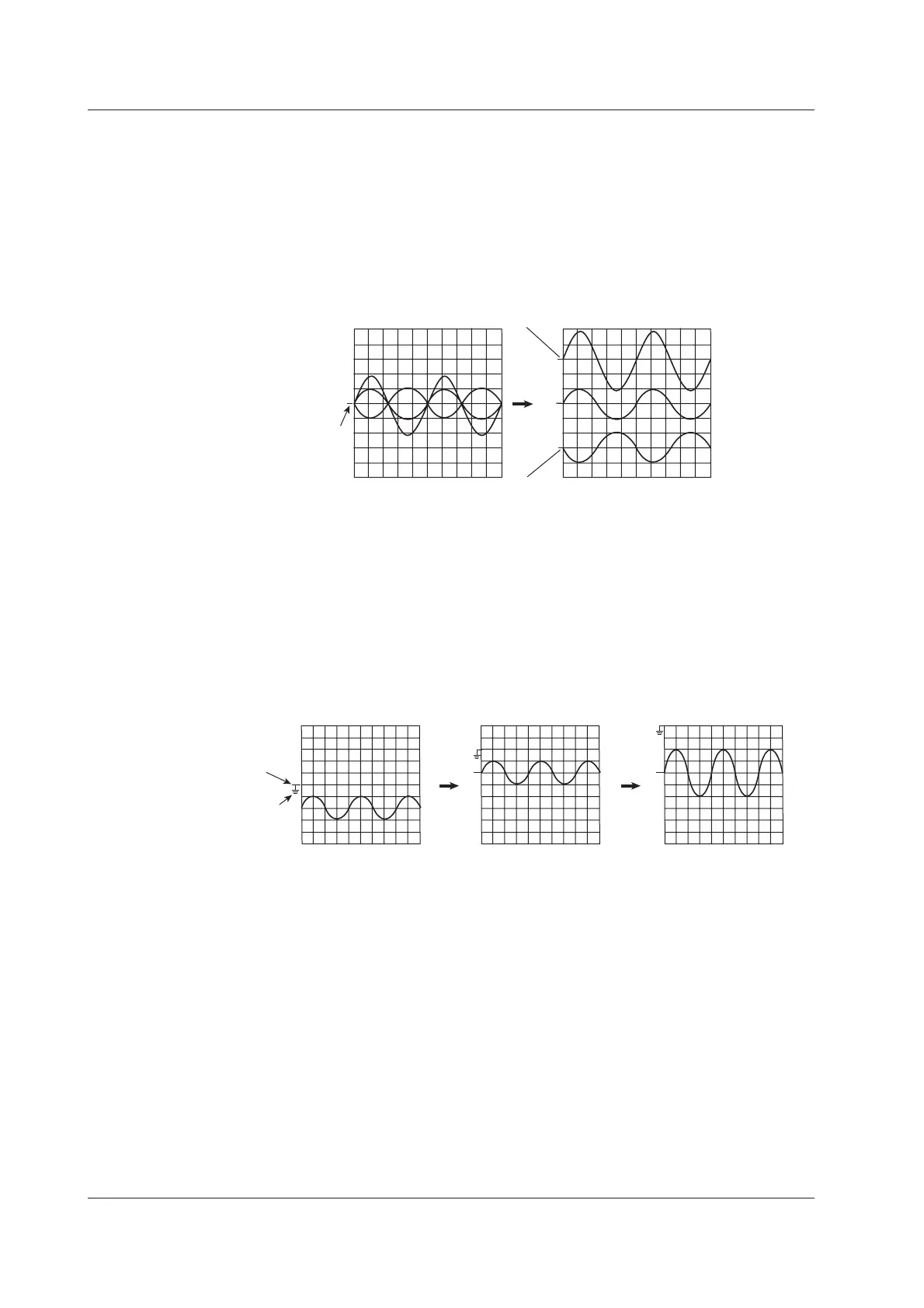

Moving the Vertical Position of Waveforms <Section 5.4>
Since the DL750/DL750P can display the input waveforms of the analog input channels
(CH1 to CH16), DSP channels (DSP1 to DSP6, optional), and computation channels
(Math1 to Math8), the waveforms may overlap making them difficult to be observed. In
this case, you can change the display position of waveforms along the vertical axis
(vertical position) for easier viewing.
The vertical position can be moved within a range of ± 5 div.
The voltage sensitivity (V/div) switches around the vertical position mark.
Position: 3 div
Position: –3 div
Position:0 div
Vertical
position
mark
Offset Value <Section 5.10>
You can add an offset value to move the waveform to a vertical position that allows
easier viewing. When observing a voltage riding on top of a predetermined voltage, an
offset value can be applied to eliminate the predetermined voltage so that only the
changes in the signal can be observed with higher voltage sensitivity.
The offset value does not affect the cursor measurement values, the result of the
automated measurement of waveform parameters, and the computed values.
Voltage sensitivity:
1.000 V/div
Vertical position: 0.00 div
Offset voltage: 0.000 V
Voltage sensitivity:
1.000 V/div
Vertical position: 1.00 div
Offset voltage: –2.000 V
Voltage sensitivity:
0.500 V/div
Vertical position: 1.00 div
Offset voltage: –2.000 V
Vertical
position
mark
GND mark
