Explanation
You can print the screen image data to a USB printer via the USB PERIPHERAL
interface.

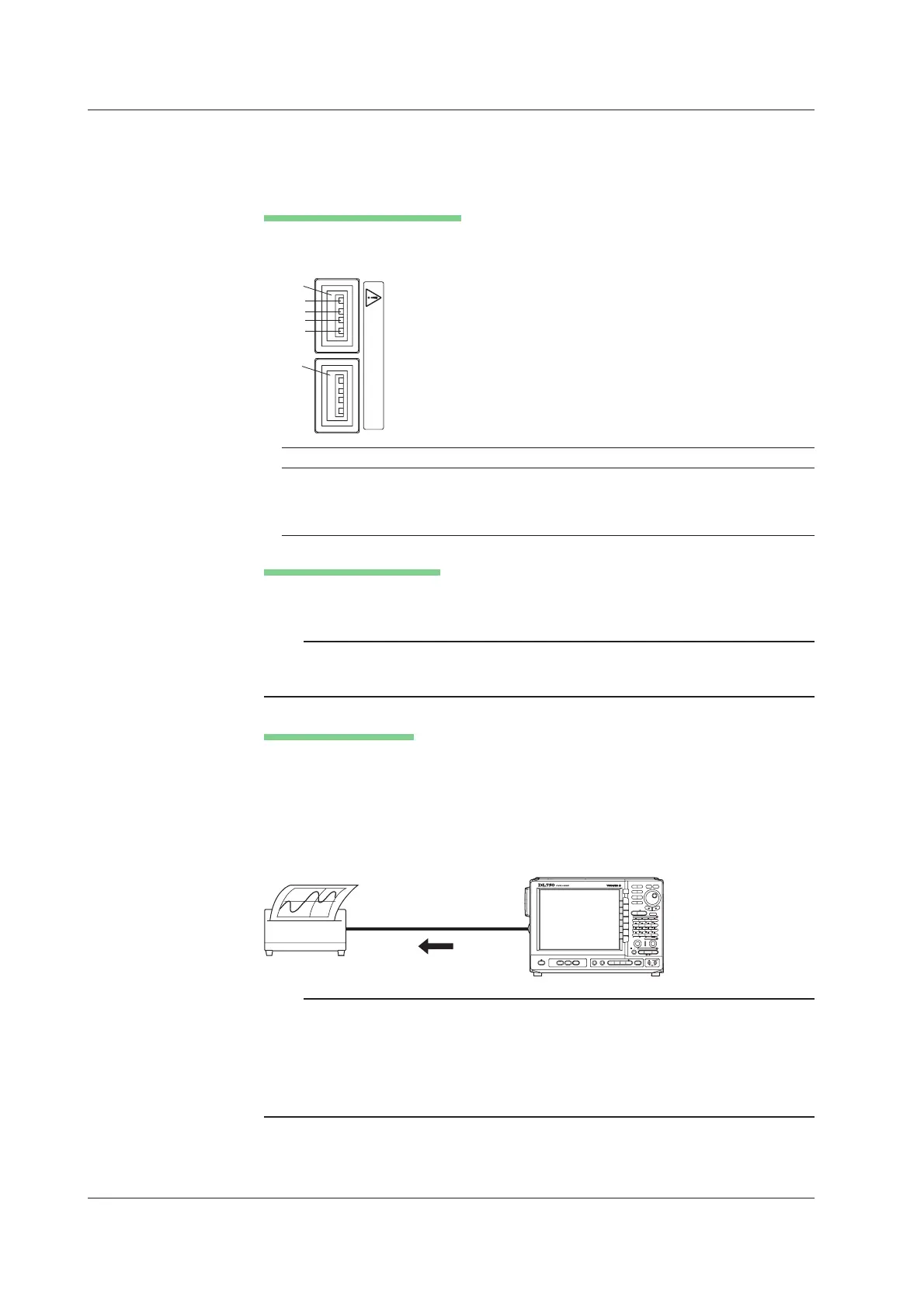

USB PERIPHERAL Connector
To connect a USB printer to the DL750/DL750P, connect a USB cable to the USB
PERIPHERAL connector. There are two USB PERIPHERAL connectors (ports).
Port 1
USB PERIPHERAL
1
2
3
4
Port 2
Pin No. Signal Name
1 VBUS: +5 V
2 D–: –Data
3D+: +Data
4 GND: Ground
Printers That Can Be Used
USB printers conforming to USB Printer Class Ver. 1.1 that support the following print
formats can be used.
Note
• Connect only the printers that are allowed.
• For details on USB printers that have been tested for compatibility, contact your nearest
YOKOGAWA dealer.
Connection Procedure
When connecting a USB printer, directly connect the keyboard to the DL750/DL750P
using a USB cable as shown below. You can connect the USB cable regardless of the
power ON/OFF state of the DL750/DL750P (supports hot-plug). Connect the type A
connector of the USB cable to the DL750/DL750P; connect the type B connector to the
printer. When the power switch is ON, the printer is detected and enabled approximately
6 s after it is connected.
USB connection
USB printer
DL750/
DL750P
FILE SHIFT HELP MISC NUM KEY
PROTECT
VOICE
MEMO
SAVE
PRINT
ESC
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
SNAPSHOT CLEAR TRACE
MENU MENU
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
Note
• Connect the printer directly without going through a hub.
• Do not connect USB devices other than USB keyboard, USB mouse, USB printer, and
USB storage device that can be used to the USB PERIPHERAL connector.
• Do not connect multiple printers to the USB PERIPHERAL connector.
• Never turn OFF the printer or remove the USB cable while the printer is printing.
• Do not connect or disconnect the USB cable after the power is turned ON until key
operation is ready (approximately 20 to 30 s).
12.3 Printing Screen Image Data to a USB Printer
