Selecting the Range of Waveform to Be Saved

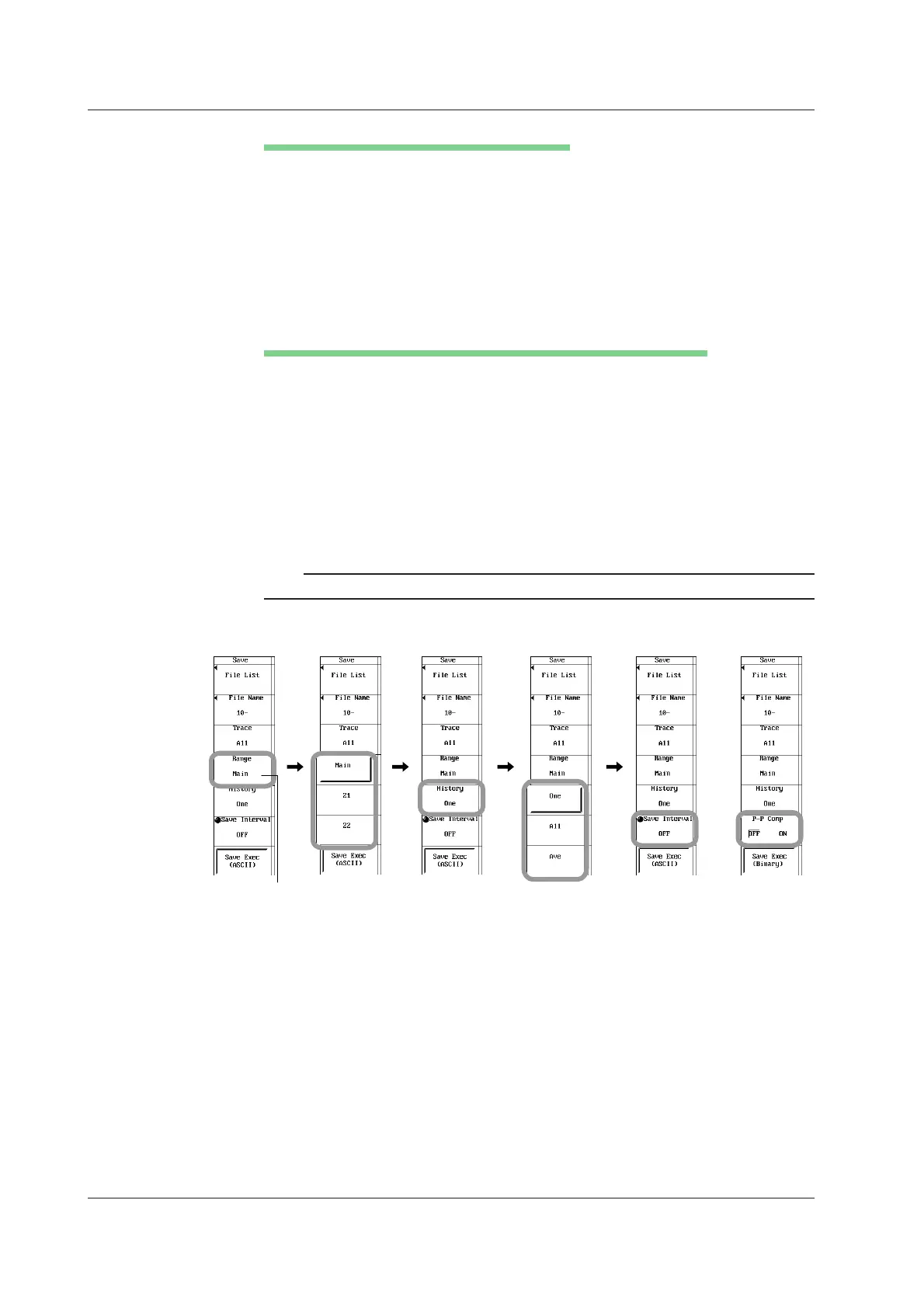

9. Press the Range soft key. A menu for selecting the range of waveform to be
saved appears.
10. Press the Main, Z1, or Z2 soft key to select the waveform save range.
11. Press the History soft key to save all the data in the history memory (All), save
only the selected waveform (One), or save the average data in the history
memory (Ave).
If you select All after performing a search on the history memory data, only the
searched waveforms are saved.
Compressing the Data and Saving/Decimating the Data and Saving
• Decimating the Data and Saving (When Data Type Is Set to ASCII)
12. Press the Save Interval soft key.
Turn the jog shuttle to set the save interval from OFF, Per5 to Per5000.
• Compressing the Data and Saving (When Data Type Is Set to Binary)
12. Press the P-P Comp soft key to select ON (compress and save) or OFF (do not
compress and save).
If P-P Comp is turned ON when saving waveform data, only the maximum and
minimum values of the multiple data points existing at the same time position
are saved. Consequently, the file size is reduced.
Note
If P-P Comp is set to ON, you cannot set the save range using Range.
For Data
Type: Binary
For Data
Type: ASCII
