Saving and Loading Data
13
13.10 Saving the Results of the Automated
Measurement of Waveform Parameters
<For a description of this function, refer to page 2-64.>
CAUTION
Never remove the storage medium (disk) or turn OFF the power while the
access indicator or the floppy disk, Zip disk, internal hard disk (optional), or USB
storage device icon is blinking. Such acts can damage the storage medium or
destroy the data on the medium.
Procedure
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT

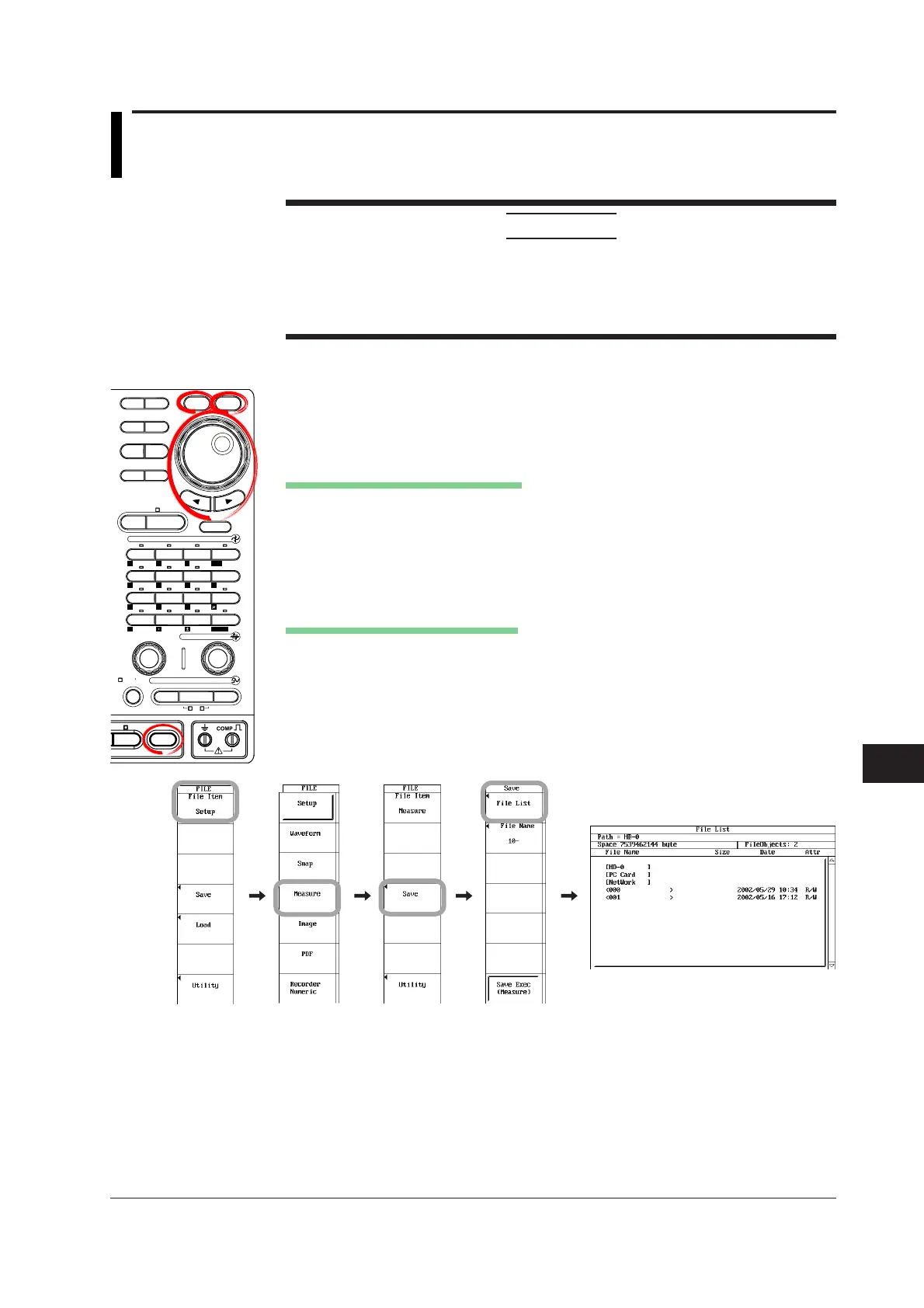

1. Press FILE.
2. Press the File Item soft key. The File Item setup menu appears.
3. Press the Measure soft key.
Selecting Save Destination Medium
4. Press the Save soft key. The save setup menu appears.
5. Press the File List soft key. The File List window appears.
6. Turn the jog shuttle to select the save destination medium (indicated by
brackets).
7. Press SELECT to confirm the storage medium.
Selecting the Destination Directory
(Perform this operation when directories are present on the medium.)
8. Turn the jog shuttle to select the save destination directory (indicated by < >).
9. Press SELECT to confirm the directory. The selected medium/directory is
displayed in “Path=......” located above and to the left of the File List window.
Select <..> to move to the parent directory.
